Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement14 · Manual gearbox - PG1
14 · Transmission

Reverse lamp switch

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Reverse lamp switch
Manual gearbox - PG1Reverse lamp switch

REVERSE LAMP SWITCH

Service repair no - 37.27.01

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

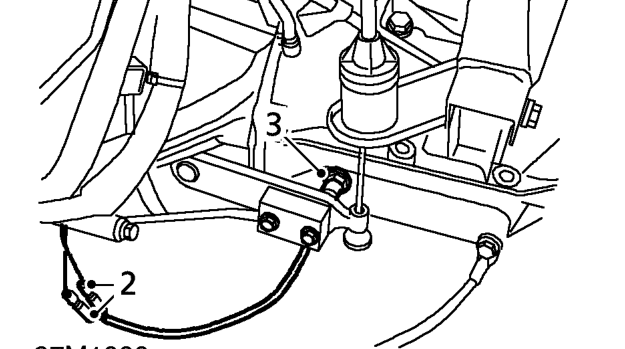

Reverse lamp switch – Raise front of vehicle.
  1. Disconnect 2 reverse lamp switch leads from engine harness.
  2. Remove reverse lamp switch and discard sealing washer.

Refit

  1. Clean reverse lamp switch and fit new sealing washer.
  2. Fit reverse lamp switch and tighten to 25 Nm.
  3. Connect reverse lamp switch leads to engine harness.
  4. Remove stand(s) and lower vehicle.

DIFFERENTIAL OIL SEAL

Service repair no - 54.10.18

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove front road wheel.
  2. Position container to collect fluid loss from gearbox.
Differential oil seal – Position container to collect fluid loss from gearbox.

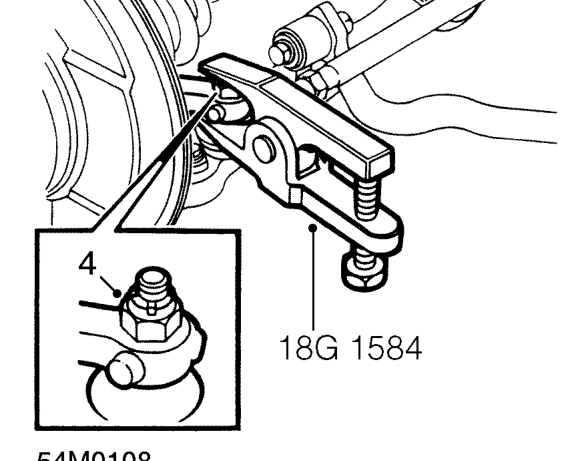

  1. Remove nut securing steering rack track rod end to front hub.
  2. Break taper joint using tool 18G 1584.
  3. Release track rod end from front hub.
Differential oil seal – Release track rod end from front hub.

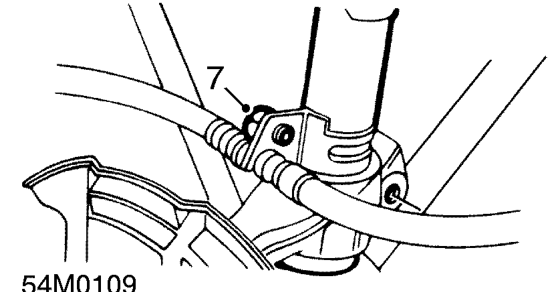

  1. Remove bolt securing brake hose to front damper.
