Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement14 · Manual gearbox - PG1
14 · Transmission

Gear selector mounting

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Gear selector mounting
Manual gearbox - PG1Gear selector mounting · page 1 of 5

GEAR SELECTOR MOUNTING

Service repair no - 37.16.25

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

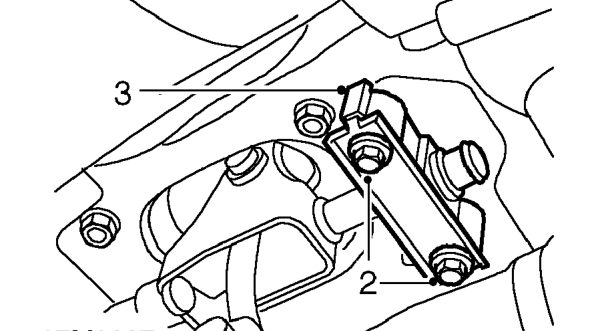

Gear selector mounting – Raise front of vehicle.
  1. Remove 2 bolts securing mounting to body.
  2. Remove mounting plate and rubber from gear selector.

Refit

  1. Position mounting rubber and plate, fit and tighten bolts to 22 Nm.
  2. Remove stand(s) and lower vehicle.

MANUAL GEARBOX

Service repair no - 37.20.02.99

Remove

  1. Drain gearbox oil. See Adjustments.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove starter motor. See ELECTRICAL, Repairs.
  2. Remove ECM. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.

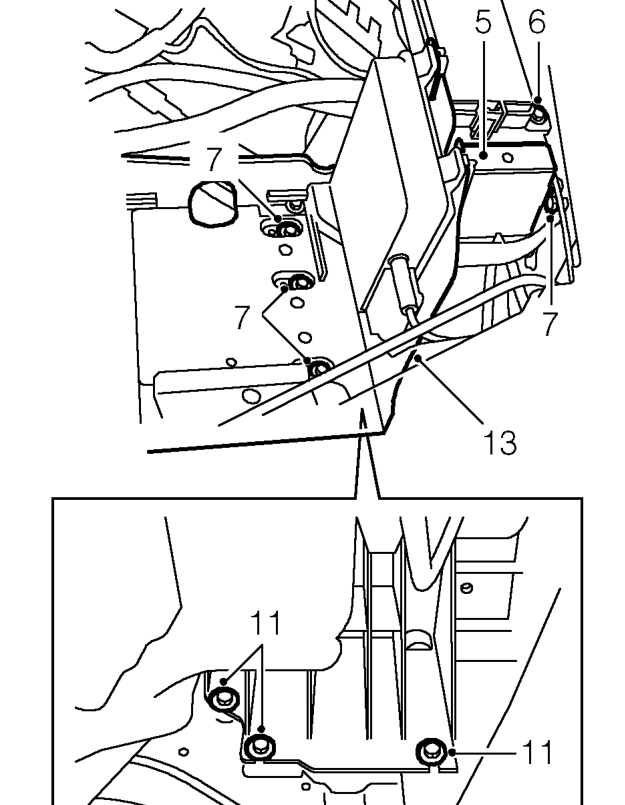

Manual gearbox – Remove ECM. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
  1. Release engine management relay module from bracket and position aside.
  2. Remove bolt securing engine compartment fusebox to battery tray.
  3. Remove 4 bolts securing battery tray to body.
  4. Remove bolt securing engine compartment fusebox to body and position fusebox aside.
