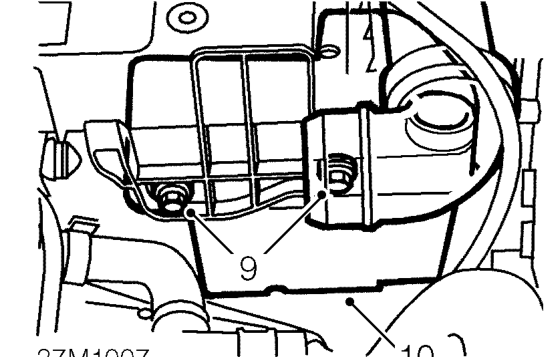

9. Remove 2 bolts securing resonator to battery tray.
10. Release resonator from air intake pipe and remove.
11. Loosen 3 bolts securing battery tray to body.
12. Release ABS fuse holder from battery tray.
13. Remove battery tray from vehicle.

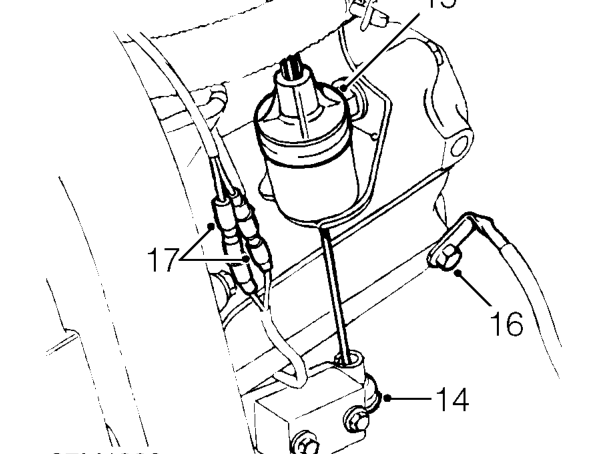

14. Disconnect clutch cable from clutch release lever.
15. Release clutch cable from abutment bracket on gearbox and position aside.
16. Remove bolt securing earth lead to gearbox.
17. Disconnect 2 reverse lamp switch leads from engine harness.
18. Release exhaust front pipe from manifold. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

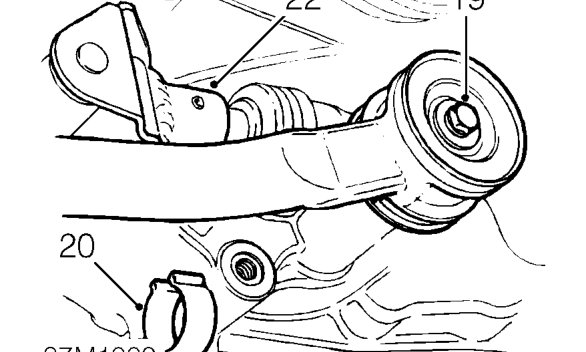

19. Remove bolt and disconnect gear change steady bar from gearbox, collect 2 washers.
20. Remove clip retaining selector rod roll pin.
21. Using a suitable punch, drive out roll pin securing selector rod to selector shaft.
22. Release selector rod from selector shaft.
23. Tie selector rod and steady bar aside.
24. Release both driveshafts from gearbox. See this section. Differential oil seal.
25. Remove LH front tie rod. See FRONT SUSPENSION, Repairs.

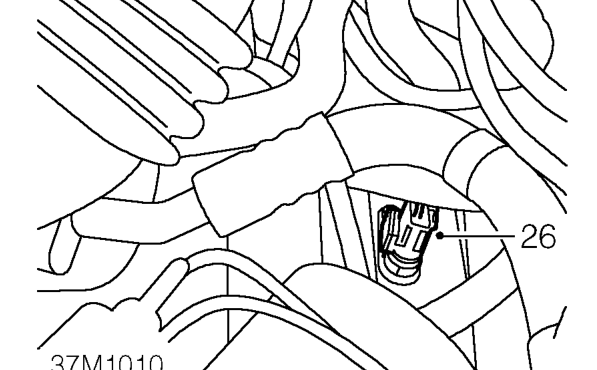

26. Disconnect multiplug from vehicle speed sensor.
