Gear selector mounting (page 4 of 4)

Make

Rover

Model

Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement

Section

Repairs

Manual gearbox - R65Gear selector mounting · page 4 of 4

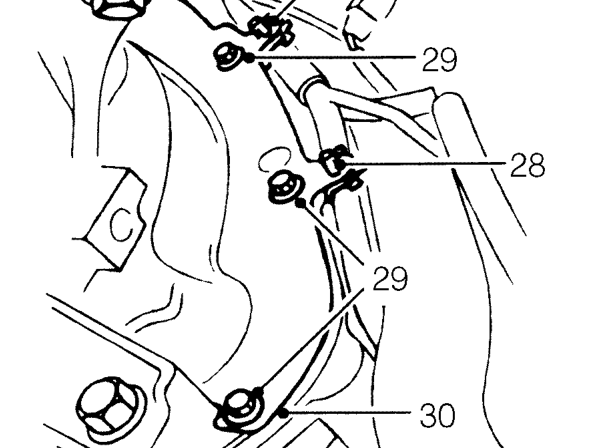

28. Release 2 clips securing starter motor cable to flywheel front cover plate.
29. Remove 3 bolts securing flywheel front cover plate to flywheel housing.
30. Remove flywheel front cover plate.

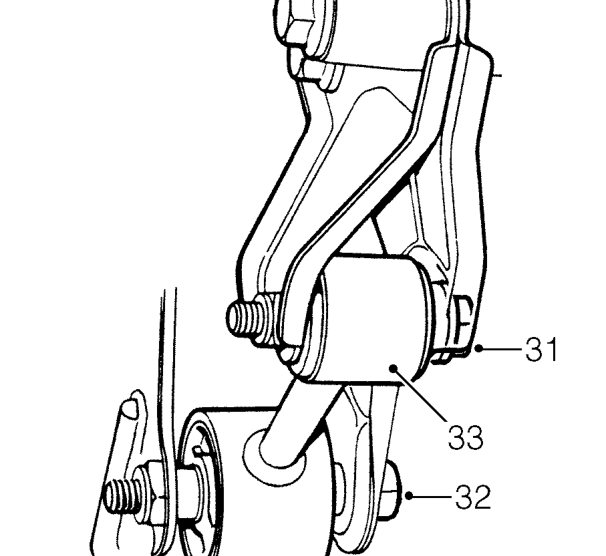

31. Loosen bolt securing engine steady bar to body.
32. Remove through bolt securing engine steady bar to mounting bracket on gearbox.
33. Release engine steady bar from gearbox mounting bracket.

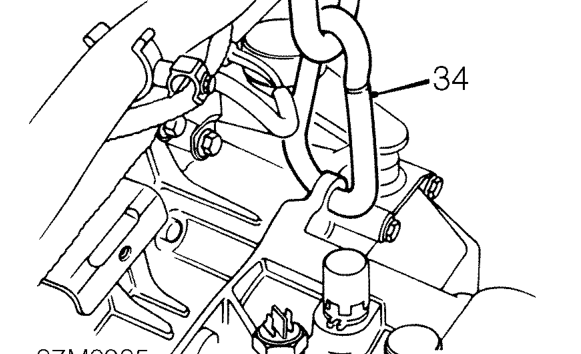

34. Fit lifting eye to gearbox and connect suitable lifting equipment to lifting eye.
35. Take weight of gearbox with lifting equipment.

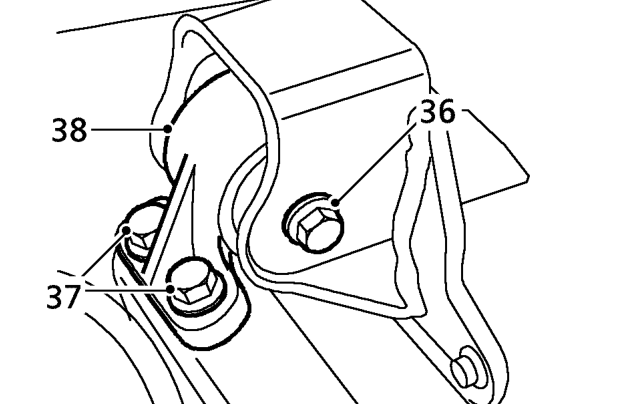

36. Remove through bolt securing engine mounting to body bracket.
37. Remove 2 bolts securing engine mounting to gearbox bracket.
38. Remove engine mounting.
39. Fit wooden block to jack and position jack to support engine.
