Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement13 · Manual gearbox - R65
13 · Transmission

Reverse lamp switch

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Reverse lamp switch
Manual gearbox - R65Reverse lamp switch

REVERSE LAMP SWITCH

Service repair no - 37.27.01

Remove

  1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

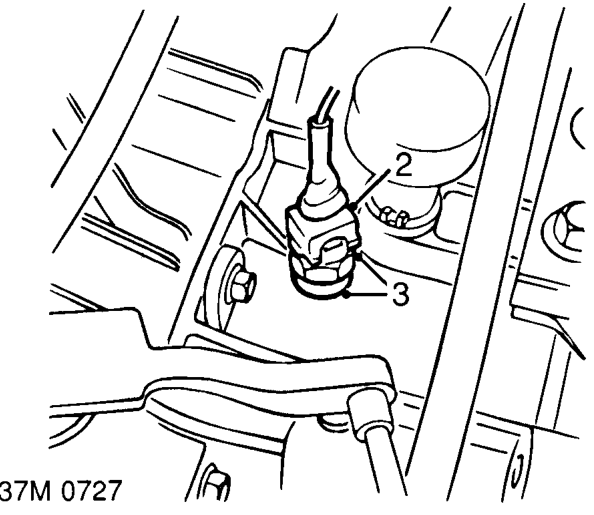

Reverse lamp switch – Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  1. Disconnect multiplug from reverse lamp switch.
  2. Remove reverse lamp switch and discard sealing washer.

Refit

  1. Clean mating faces of reverse lamp switch and gearbox.
  2. Fit new sealing washer to reverse lamp switch.
  3. Fit reverse lamp switch and tighten to 25 Nm.
  4. Connect multiplug to reverse lamp switch
  5. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

DIFFERENTIAL OIL SEAL

Service repair no - 54.10.18

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove front road wheel.
  2. Position container to collect fluid loss from gearbox.
Differential oil seal – Position container to collect fluid loss from gearbox.

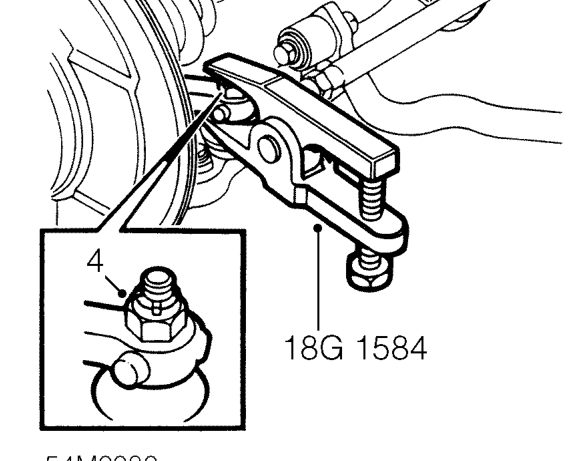

  1. Remove nut securing steering rack track rod end to front hub.
  2. Break taper joint using tool 18G 1584.
  3. Disconnect track rod end from front hub.
Differential oil seal – Disconnect track rod end from front hub.

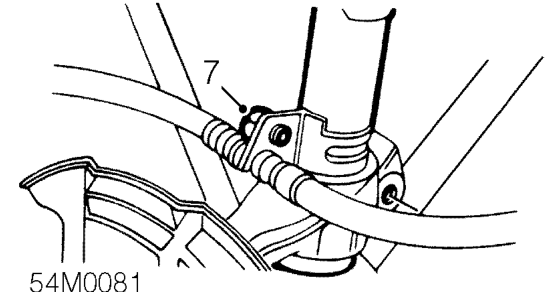

  1. Remove bolt securing brake hose to front damper.
