Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Drive cable adjustment

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Sun roof › Drive cable adjustment
BodyDrive cable adjustment

Service Repair No. 76.82.04

Adjust

  1. Slide back sun roof visor.

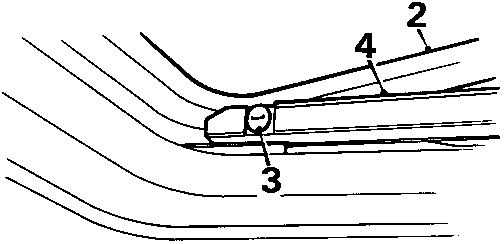

Diagram showing the front corner of a sun roof assembly with callout numbers 2, 3, and 4 indicating specific components.

8RM 1503

  1. Open sun roof in tilt position.
  2. Release 2 turnbuckles securing channel assembly to culisse.
  3. Slide channel assembly into tray.

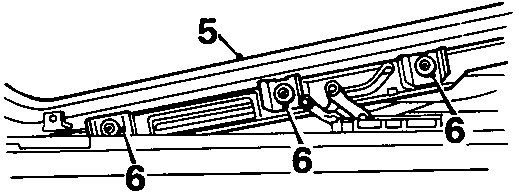

Diagram showing the side mechanism of a sun roof assembly with callout numbers 5 and 6 indicating guide rails and screws.

8RM 1504

  1. Tilt sun roof.
  2. Slacken 6 screws securing sun roof lid to culisse.
  3. Centralise lid in roof aperture, set front edge flush to 1 mm below roof panel and rear edge flush to 1 mm above roof panel.
  4. Tighten sun roof lid to culisse screws to 6 Nm.
  5. Slide channel assembly from back of tray to sun roof lid.
  6. Secure channel assembly turnbuckles to each culisse.
  7. Close sun roof lid.

DRIVE CABLE ADJUSTMENT

Service Repair No. 76.82.64

Adjust

  1. Electric sun roof: Remove sun roof motor, see Sun roof motor.
    Manual sun roof: Remove sun roof drive gear, see Sun roof drive gear and handle.

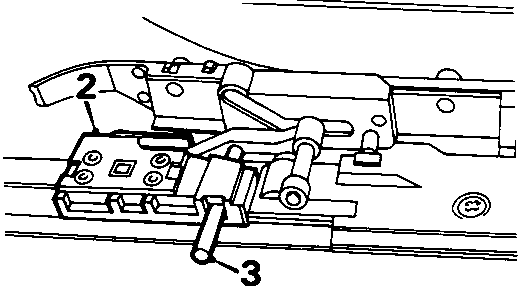

Diagram showing the internal drive gear mechanism of a sun roof with callout numbers 2 and 3 indicating the guide rail and alignment pin locations.

8RM 1385

  1. Align guide rail to set plates.
  2. Insert alignment pins (4mm drill) guide rail to set plates.
  3. Electric sun roof: Fit sun roof motor, see Sun roof motor
    Manual sun roof: Fit sun roof drive gear, see Sun roof drive gear and handle.
