Sun roof › Service Repair No. 76.82.31
BodyService Repair No. 76.82.31

Note: The wind deflector is no longer fitted to Rover 200/400 models manufactured after June 1993.

Service Repair No. 76.82.31

Remove

  1. Open sun roof and position protective cover over door sill.

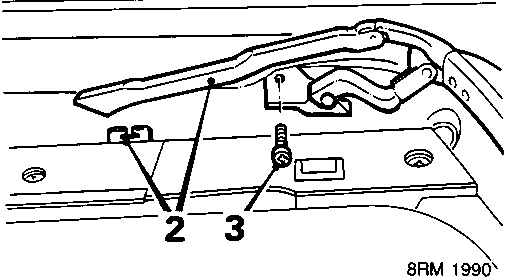

Diagram showing the attachment points of the wind deflector arms secured by clips and screws to the sun roof assembly
  1. Release both wind deflector arms from securing clips.
  2. Remove 2 screws and remove wind deflector.

Refit

  1. Position wind deflector to sun roof assembly ensuring wind deflector is aligned correctly.
  2. Fit screws, wind deflector to sun roof and tighten to 2 Nm.

SUN ROOF LID

Service Repair No. 76.82.05

Remove

  1. Raise sun roof lid to tilt position.

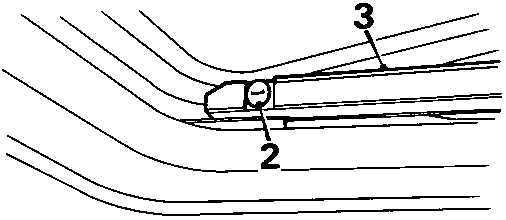

Diagram showing the turnbuckles securing the drain channel assembly to the culisse on the sun roof lid
  1. Release 2 turnbuckles securing drain channel assembly to culisse.
  2. Slide channel assembly fully into tray.

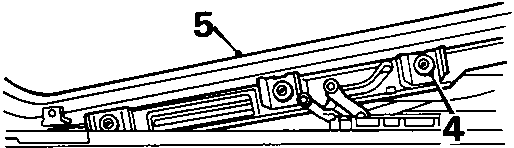

Diagram showing the screws attaching the sun roof lid to the culisse mechanism
  1. Remove 6 screws, sun roof lid to each culisse.
  2. Close sun roof lid.
  3. Remove sun roof lid assembly.

Refit

  1. Close sun roof.
  2. Position sun roof lid assembly.
  3. Fit but do not tighten screws, sun roof lid to culisse.
  4. Adjust sun roof, see Sun roof alignment.
  5. Slide drain channel assembly from back of tray to sun roof lid.
  6. Secure turnbuckles on drain channel assembly to each culisse.
