Sun roof › Remove
BodyRemove

Service Repair No. 76.82.53

Remove

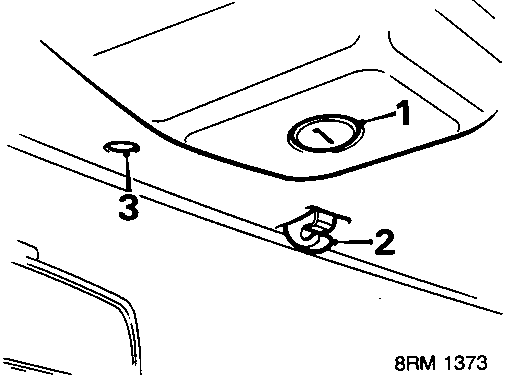

Diagram showing sun roof motor access plug, sun visor clips, and front fixing stud on headlining
  1. Remove sun roof motor access plug from headlining.
  2. Release sun visors from clips and swing aside.
  3. Remove front fixing stud from headlining.

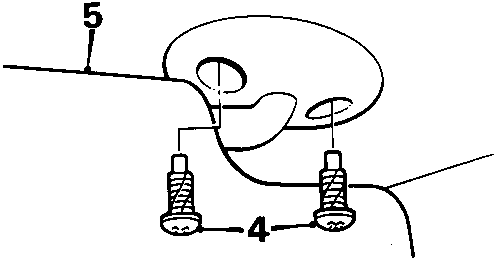

Diagram showing removal of sun visor screws and the sun visor itself from headlining
  1. Remove 2 screws securing each sun visor to headlining.
  2. Remove sun visors.

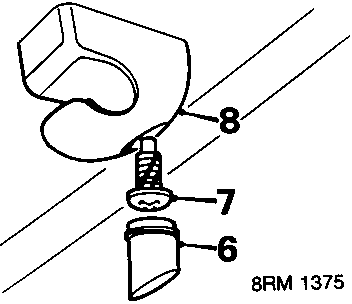

Diagram showing removal of blanking plug, clip screw, and sun visor clip
  1. Remove blanking plug from each sun visor clip.
  2. Remove screw securing each clip.
  3. Remove sun visor clips.

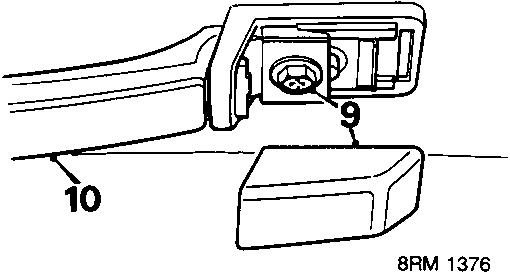

Diagram showing removal of covers and screws securing grab handle
  1. Remove 2 covers and 2 screws securing each grab handle.

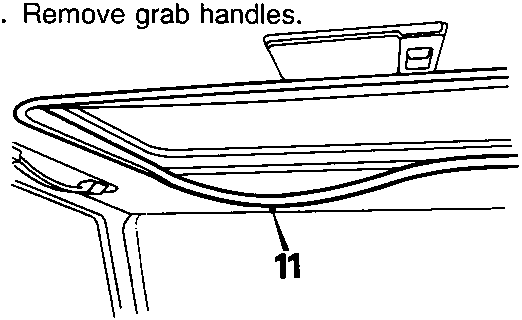

Diagram showing removal of grab handles from vehicle interior
  1. Remove grab handles.
  2. Release sun roof aperture seal finisher.

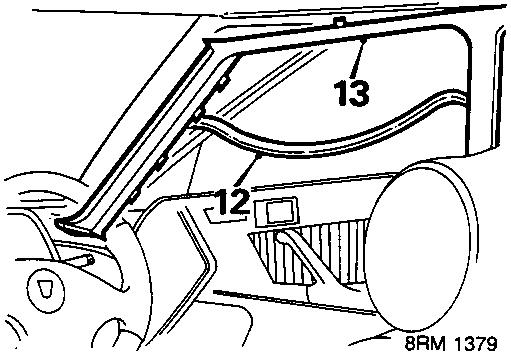

Diagram showing release of front door seals and post finishers at side and top of front door aperture
  1. Release front door seals, L.H. and R.H.
  2. Release 'A' and 'B' post finisher at side and top of each front door aperture.
  3. Lower headliner at front for access to sun roof motor.

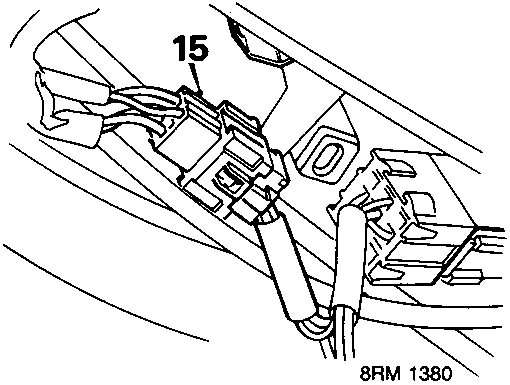

Diagram showing disconnecting of sun roof motor multiplug connector
  1. Disconnect sun roof motor multiplug.
