Sun roof › Remove
BodyRemove

Service Repair No. 76.82.57

Remove

  1. Remove sun roof wind deflector (if fitted), see Sun roof wind deflector.
  2. Remove sun roof lid, see Sun roof lid.
Illustrates removal of front bumper cover on vehicle

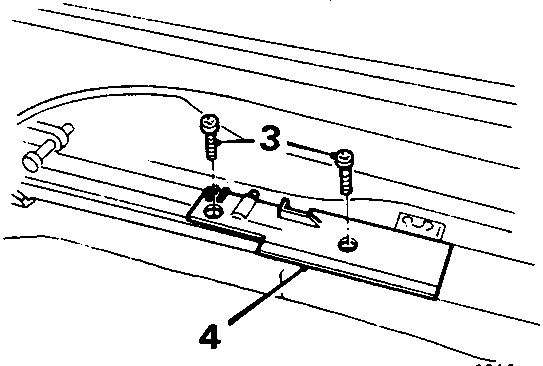

Diagram showing pilot plate secured by two screws (3) on the sun roof culisse rail
  1. Remove 2 screws securing pilot plate.
  2. Remove pilot plate.

Note: Ensure vehicle body work and headlining are fully protected.

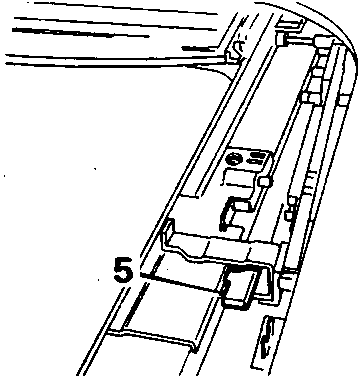

Diagram showing RED slide shoes (5) on the culisse slide rail
  1. Pull RED slide shoes on culisse clear from slide rail.

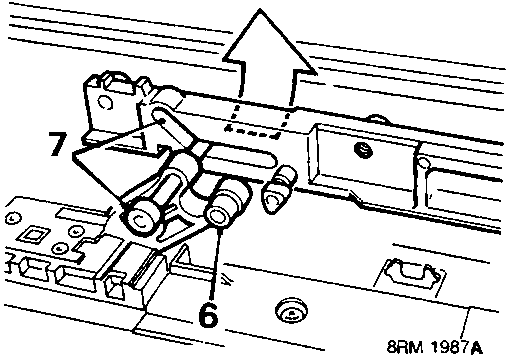

Diagram showing lifting arm (6) and fixing pivot (7) on the sun roof mechanism
  1. Raise lifting arm.
  2. Remove culisse by aligning the culisse groove and fixing pivot, then rotate lower edge of culisse outwards and pull clear.

Refit

  1. Align culisse groove to fixing pivot.
  2. Fit culisse to fixing pivot and red slide shoe to slide rail.

Note: Ensure fixing pivot is correctly engaged.

  1. Fit sun roof lid, see Sun roof lid.
  2. Fit sun roof wind deflector, see Sun roof wind deflector.
