Sun roof › Remove
BodyRemove

Service Repair No. Drive gear 76.82.51

Service Repair No. Handle 76.82.06

Remove

Diagram showing sun roof handle assembly with numbered parts 1, 2, 3, and 4

Handle

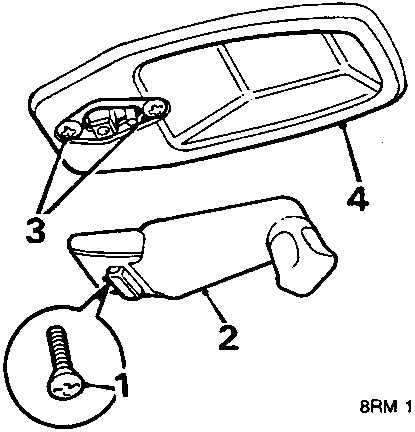

  1. Remove screw securing sun roof handle.
  2. Remove sun roof handle.

Drive gear.

  1. Remove 2 screws, escutcheon to sun roof.
  2. Remove escutcheon.
  3. Release front of aperture seal and lower headlining for access.
Diagram showing sun roof drive gear mounting bracket with numbered parts 6 and 7

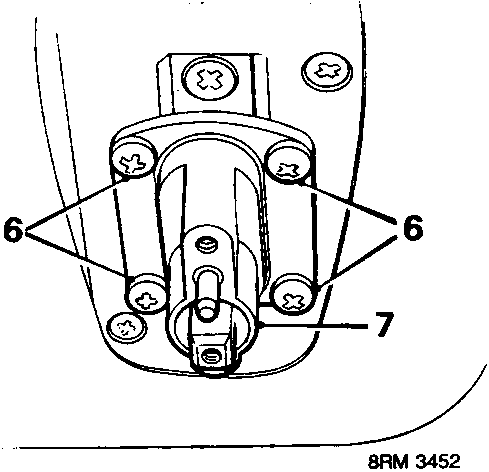

  1. Remove 4 screws, sun roof drive gear to mounting bracket.
  2. Remove sun roof drive gear.

Refit

Diagram showing drive gear shaft (1) and locking pin (A) engaging with handle component (2)
Diagram showing alignment of drive gear shaft (A) with locating hole in handle

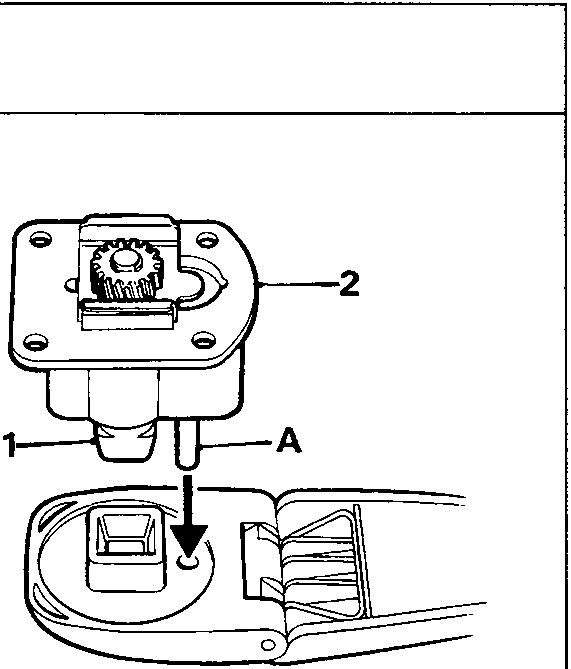

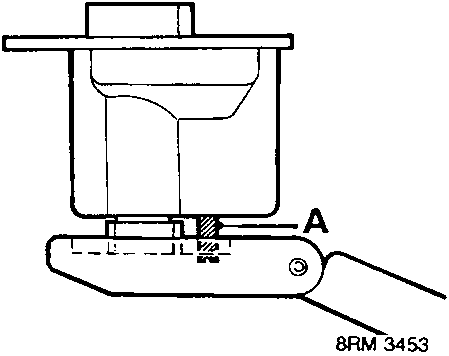

  1. Ensure drive gear shaft is in the locked position. Drive gear shaft will not be able to be turned by hand , and the locking pin (A) must be fully extended and drop into the locating hole in the handle.
  2. Position sun roof drive gear to mounting bracket, tighten screws to 3 Nm.
  3. Position escutcheon to sun roof, tighten screws to 2 Nm.
  4. Fit headlining and aperture seal.
  5. Fit handle and tighten screw.
  6. Remove alignment tools
  7. Fit sunroof wind deflector.
  8. Fit sunroof lid
