Sun roof › Remove
BodyRemove

Service Repair No. Manual 76.82.20
Service Repair No. Electric 76.82.50

Remove

  1. Remove sun roof wind deflector (if fitted), see Sun roof wind deflector.
  2. Remove sun roof lid, see Sun roof lid.
  3. Remove culisse.

Note: Ensure vehicle body work and headlining are fully protected.

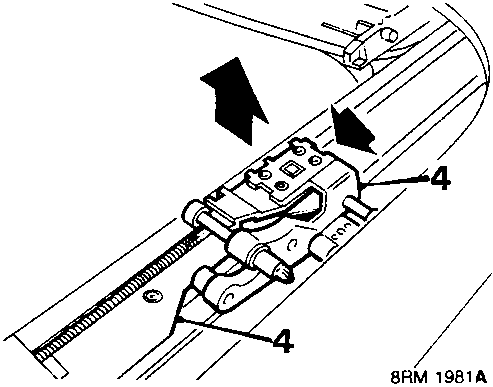

Diagram showing the removal of the cable block from the slide rail, with callout number 4 pointing to the block.
  1. Draw cable block forward and remove through slide rail cut out. Hang cable block over side of vehicle.

Do not carry out further dismantling if component is removed for access only

  1. Manual sun roof: Remove sun roof drive gear, see Sun roof drive gear and handle.
    Electric sun roof: Remove sun roof motor, see Sun roof motor.

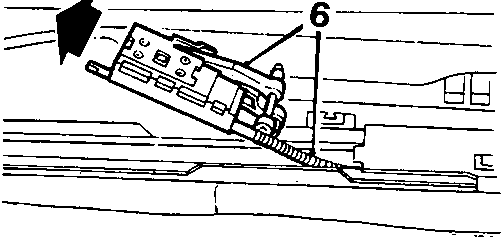

Diagram showing cables being removed from the slide rail channel, with callout number 6 pointing to the cable assembly.
  1. Remove cables from the slide rail channel.

Refit

  1. Feed cable and block assembly into slide rail channel.
  2. Push cable assembly back into tray until cable block reaches cut away in slide rail.
  3. Insert cable block into channel, draw block and cable assembly backward.
  4. Fit culisse.

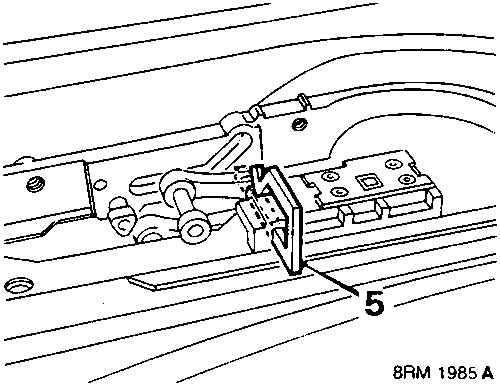

Diagram showing the alignment of the guide cable to the culisse using a tool, with callout number 5 pointing to the connection point.
  1. Align guide cable to culisse using sun roof alignment tools, Part No. EFX 10004.
  2. Manual sun roof: Fit sun roof drive gear, see Sun roof drive gear and handle.
    Electric sun roof: Fit sun roof motor, see Sun roof motor.
  3. Fit sun roof lid, see Sun roof lid.
  4. Fit sun roof wind deflector (if fitted), see Sun roof wind deflector.
