Sun roof › Refit
BodyRefit

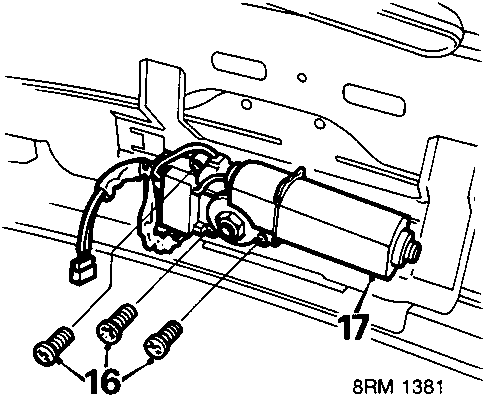

Diagram showing sun roof motor mounting bracket with screws labeled 16 and motor labeled 17, code 8RM 1381
  1. Ensure sun roof is shut. Remove 3 screws, sun roof motor to mounting bracket.
  2. Remove sun roof motor.

Refit

  1. Fit sun roof motor to mounting bracket, tighten screws to 3 Nm.
  2. Connect and secure sun roof motor multiplug.
  3. Position headlining and fit front stud fixing.
  4. Fit 'A' and 'B' post finisher at side and top of front doors, securing clips into body both sides.
  5. Fit door seals both sides.
  6. Fit sun roof aperture seal finisher.
  7. Fit grab handles and screw covers.
  8. Fit sun visors, clips and blanking plugs.
  9. Fit sun roof motor access plug.

SUN ROOF

Service Repair No. Manual 76.82.01
Service Repair No. Electric 76.82.44

Remove

  1. Remove headlining.
  2. Ensure sun roof is closed.

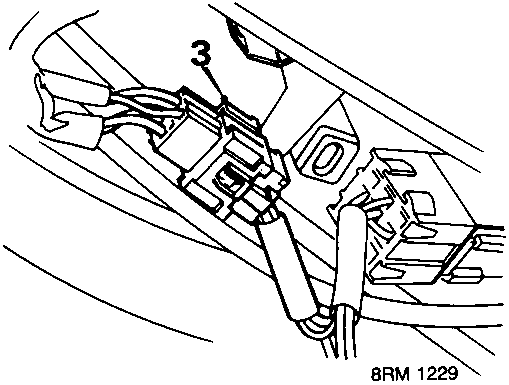

Diagram showing sun roof motor multiplug connector labeled 3, code 8RM 1229
  1. Electric sun roof: Disconnect sun roof motor multiplug

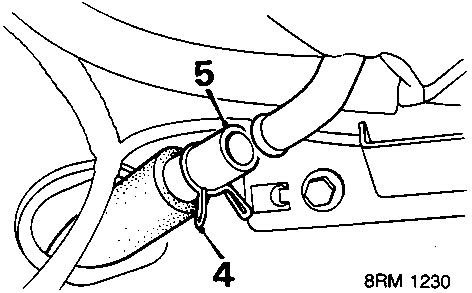

Diagram showing drain tube clips labeled 5 and 4, code 8RM 1230
  1. Release 4 drain tube clips.
  2. Release drain tubes.

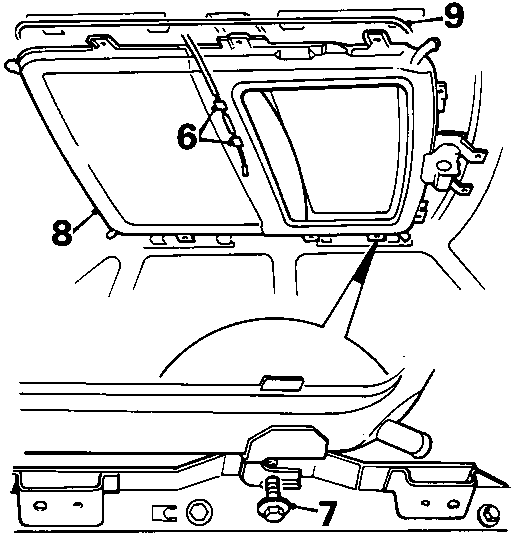

Diagram showing sun roof assembly interior view with interior lamp wiring clips labeled 6, bolts labeled 7, grab handles labeled 8, and access plug labeled 9, code 8RM 1231
  1. Remove interior lamp wiring clips.
  2. Remove 10 bolts, sun roof assembly to roof panel.
  3. Lower and remove sun roof assembly.
