Refit

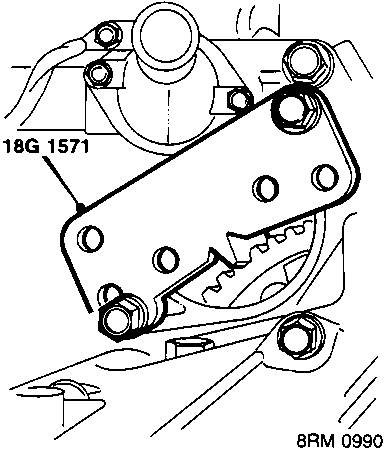

9. Fit tool 18G 1571 – Manual Gearbox or tool 18G 1603 – Automatic Gearbox to starter motor aperture.

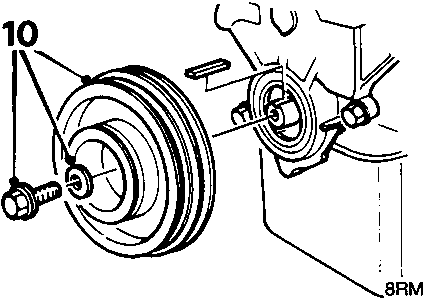

10. Remove crankshaft pulley bolt and washer; slide pulley off crankshaft.

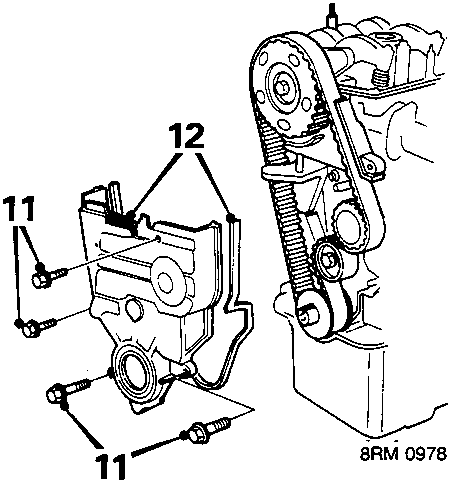

11. Remove 4 bolts securing bottom cover; withdraw cover.
12. Remove sealing strips.

Refit

1. Ensure sealing surfaces of bottom cover and cylinder block are clean.
2. Position a new sealing strip, fitted dry, in recess in bottom cover.
3. Position timing belt bottom cover on cylinder block.
4. Fit 4 timing belt bottom cover securing bolts; tighten bolts to 10 Nm.
5. Locate key, if removed, in crankshaft; fit crankshaft pulley.
6. Air conditioning: Fit air conditioning compressor drive belt adjuster pulley mounting bracket, tighten 2 bolts to 24 Nm.
7. Air conditioning: Fit pulley to mounting bracket, do not tighten bolt until belt is adjusted.
8. Apply clean engine oil to threads of pulley bolt; fit bolt and tighten to 165 Nm.
9. Remove tool 18G 1571 or tool 18G 1603.
10. Fit starter motor, see ELECTRICAL – Repairs.
11. Fit underbelly panel, see BODY – Repairs.
12. Fit camshaft timing belt top cover, see Camshaft Timing Belt Top Cover.
13. Fit alternator drive belt, see MAINTENANCE.
14. Air conditioning: Fit and tension air conditioning compressor drive belt, see MAINTENANCE.
15. Power steering: Fit and tension power steering pump drive belt, see MAINTENANCE.
