Engine 1.6Power steering · page 1 of 3

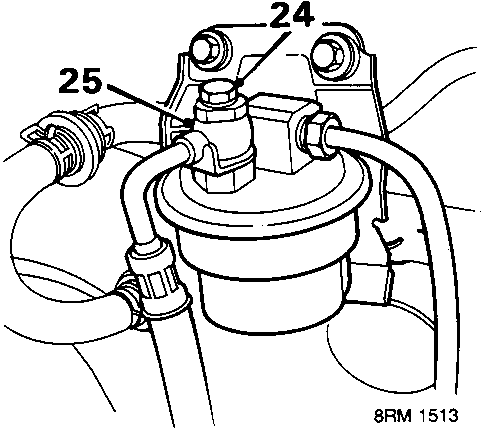

Diagram of fuel filter assembly with callout numbers 24 and 25
  1. Position absorbent cloth around sealing bolt. Slacken bolt to relieve fuel pressure. Retighten bolt to 12 Nm.
  2. Unscrew banjo bolt, disconnect fuel outlet pipe from filter and collect 2 sealing washers.

CAUTION: Plug the connections.

  1. Remove distributor, see ENGINE MANAGEMENT SYSTEM – PGM – Fi – Repairs.

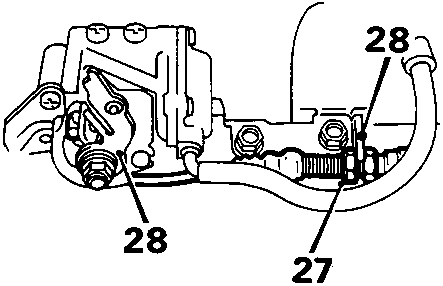

Diagram of throttle cable bracket area with callout number 28 and 27
  1. Slacken throttle cable lock nut.
  2. Disconnect throttle cable from bracket and throttle linkage.

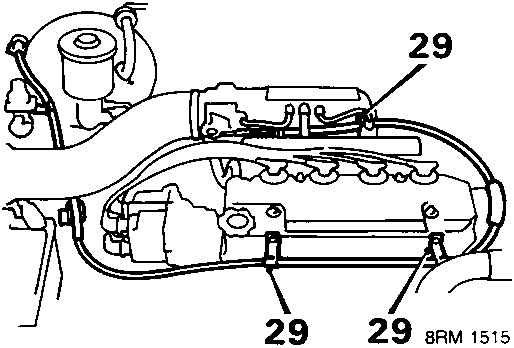

Diagram showing throttle cable routing with retaining clips labeled 29
  1. Release throttle cable from 3 retaining clips.

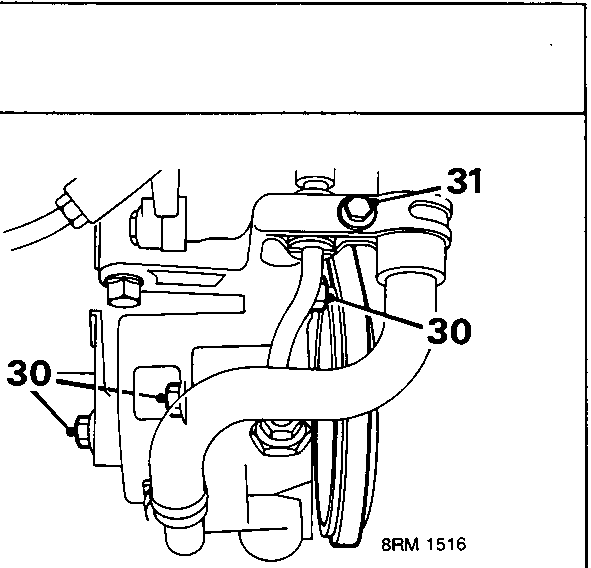

Diagram of power steering pump and pipe clamp with callout numbers 30 and 31

Power steering

  1. Remove 3 bolts securing power steering pump to bracket.
  2. Remove bolt securing power steering pipe clamp.

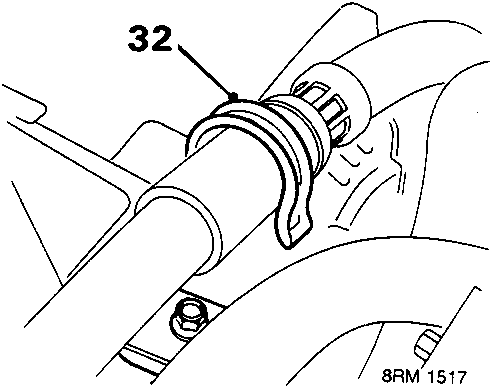

Diagram of power steering hose connection point with callout number 32
  1. Release power steering hose from clip.
  2. Release drive belt from pump pulley; move pump aside.

CAUTION: Keep pump upright to avoid oil spillage.

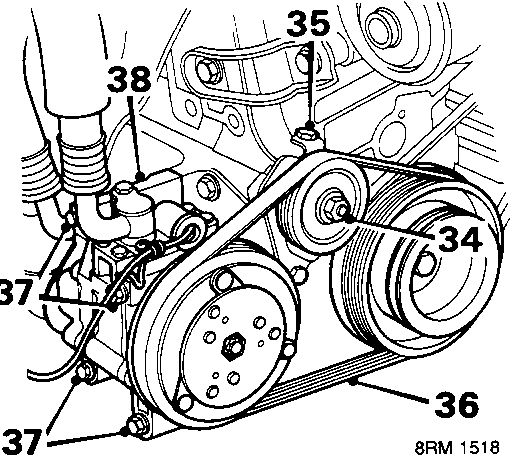

Diagram of air conditioning compressor, drive belt and tensioner with callout numbers 34 through 38

Air conditioning

  1. Slacken tensioner pulley nut.
  2. Slacken belt adjustment bolt.
  3. Remove compressor drive belt.
  4. Remove 4 bolts, compressor to engine bracket.
  5. Retain compressor aside.
