Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual05 · Engine 1.6
05 · Engine

All models (page 2 of 2)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs
Engine 1.6All models · page 2 of 2

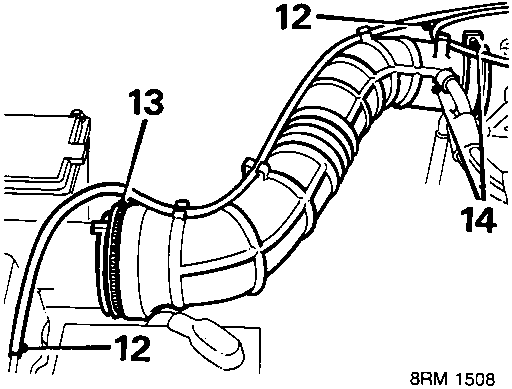

Diagram showing vacuum pipe, intake trunking, and breather pipe connections with callout numbers 12, 13, and 14.
  1. Disconnect vacuum pipe from air cleaner and intake trunking clips.
  2. Disconnect intake trunking from air cleaner and release from clips.
  3. Slacken hose clip, remove intake trunking from throttle housing. Release clip and disconnect breather pipe from trunking.

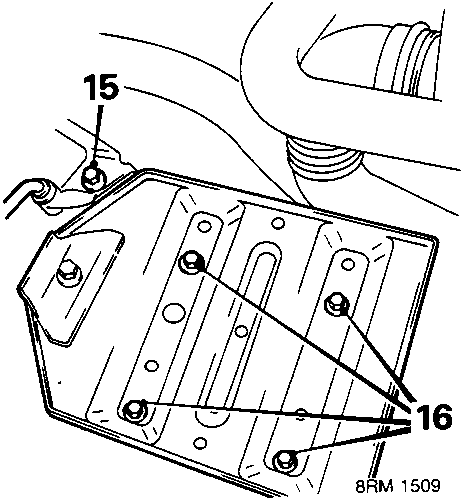

Diagram showing battery tray secured by a bolt and four bolts, with callout numbers 15 and 16.
  1. ABS 6: Remove bolt securing ABS pipe to battery tray.
  2. Remove 4 bolts, battery tray to body and remove battery tray.

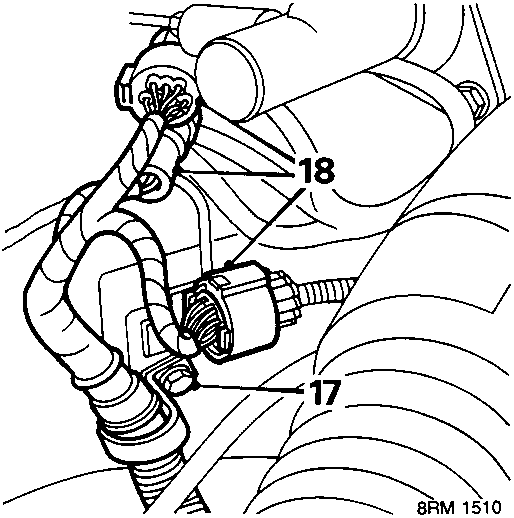

Diagram showing engine harness strap and multiplug connections with callout numbers 17 and 18.
  1. Remove bolt and release strap retaining engine harness.
  2. Disconnect 3 engine harness multiplugs.

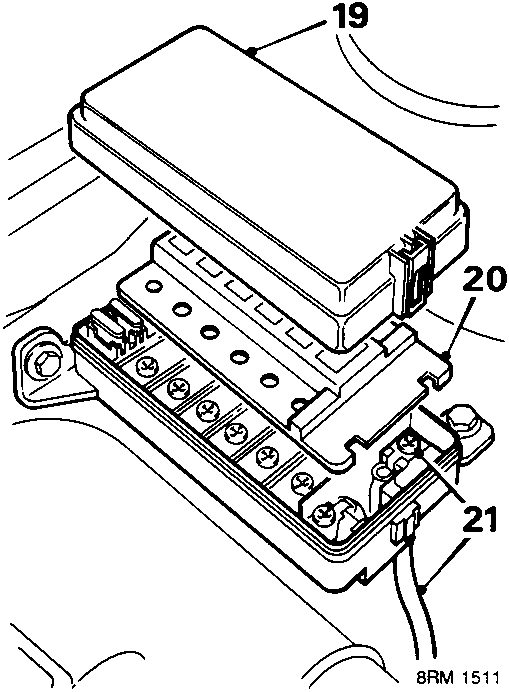

Diagram showing fusebox cover, fuse cover plate, and battery lead connection with callout numbers 19, 20, and 21.
  1. Remove fusebox cover.
  2. Remove fuse cover plate.
  3. Remove screw, battery lead to fusebox and release lead. Refit screw.
  4. Remove starter motor, see ELECTRICAL – Repairs.

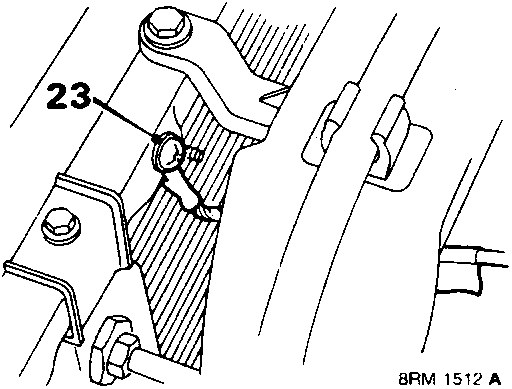

Diagram showing bolt securing engine earth lead to bonnet lock platform with callout number 23.
  1. Remove bolt, engine earth lead to bonnet lock platform.
