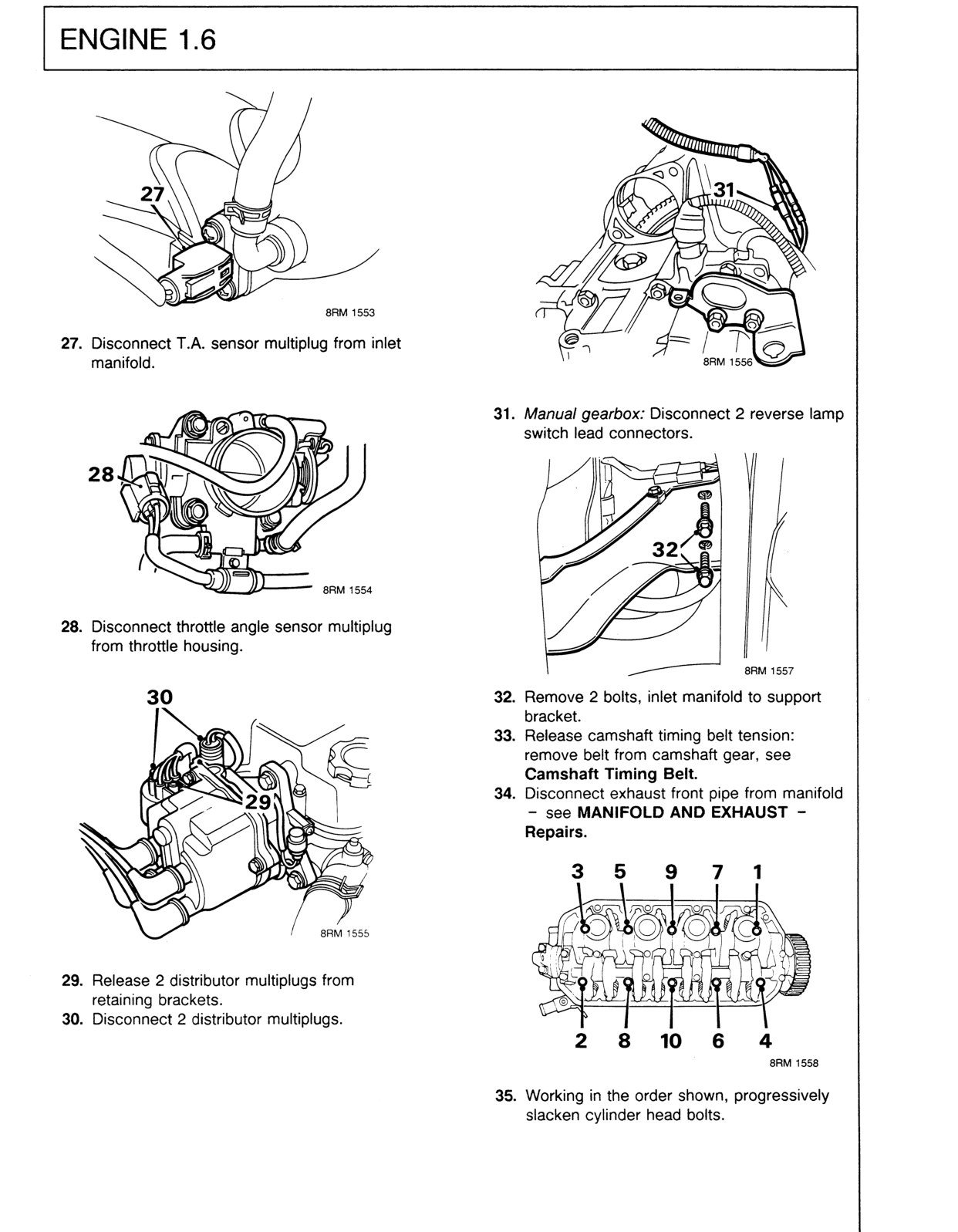

Engine 1.6Original page

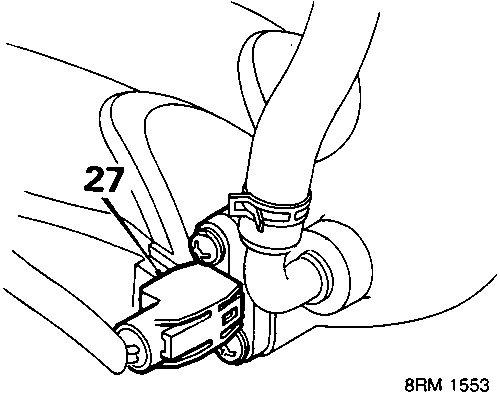

Diagram showing item 27, a T.A. sensor multiplug connected to the inlet manifold
  1. Disconnect T.A. sensor multiplug from inlet manifold.

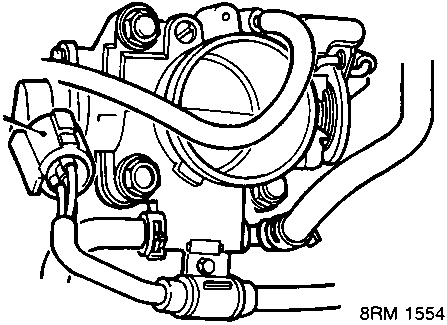

Diagram showing item 28, a throttle angle sensor multiplug connected to the throttle housing
  1. Disconnect throttle angle sensor multiplug from throttle housing.

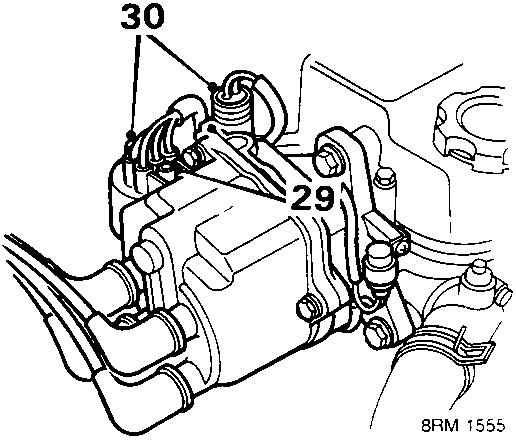

Diagram showing items 29 and 30, distributor multiplugs and their retaining brackets
  1. Release 2 distributor multiplugs from retaining brackets.
  2. Disconnect 2 distributor multiplugs.

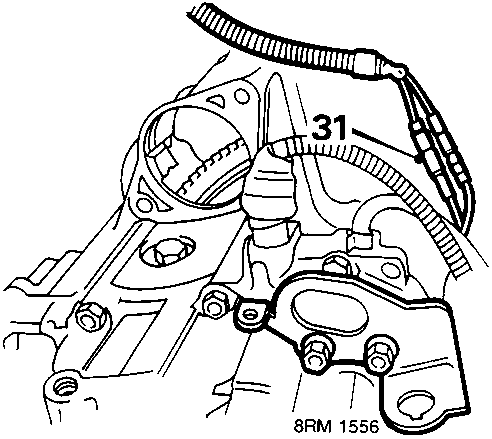

Diagram showing item 31, reverse lamp switch lead connectors on the gearbox
  1. Manual gearbox: Disconnect 2 reverse lamp switch lead connectors.

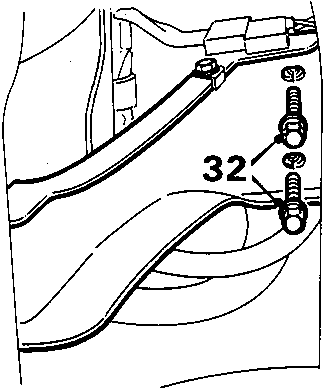

Diagram showing item 32, bolts securing the inlet manifold to support bracket
  1. Remove 2 bolts, inlet manifold to support bracket.
  2. Release camshaft timing belt tension: remove belt from camshaft gear, see Camshaft Timing Belt.
  3. Disconnect exhaust front pipe from manifold – see MANIFOLD AND EXHAUST – Repairs.

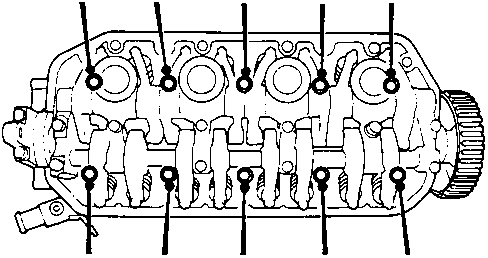

Diagram of cylinder head with numbers 1 through 10 indicating the order for slackening head bolts
  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  1. Working in the order shown, progressively slacken cylinder head bolts.
