Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual05 · Engine 1.6
05 · Engine

Remove (page 3 of 3)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs
Engine 1.6Remove · page 3 of 3

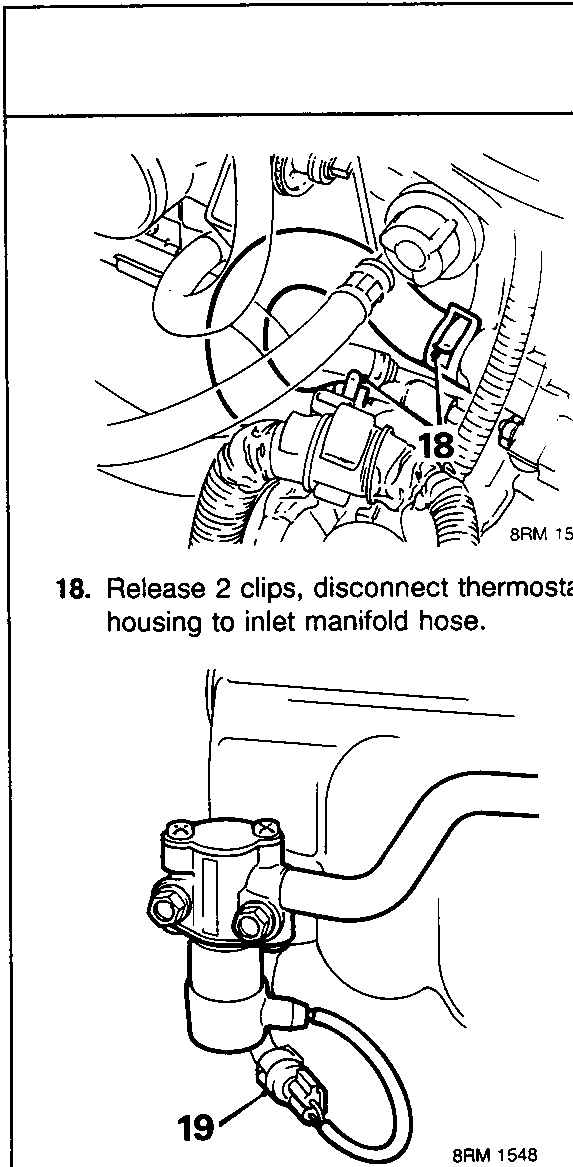

Diagram showing release of clips and disconnecting thermostat housing to inlet manifold hose, item 18; release of fast idle control valve multiplug from bracket, item 19
  1. Release 2 clips, disconnect thermostat housing to inlet manifold hose.
  2. Release fast idle control valve multiplug from bracket, disconnect multiplug.

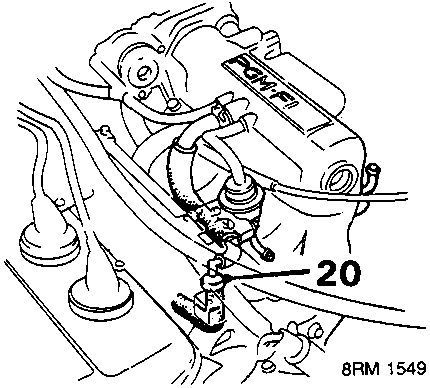

Diagram showing disconnecting P.C.V. hose from inlet manifold, item 20
  1. Disconnect P.C.V. hose from inlet manifold.

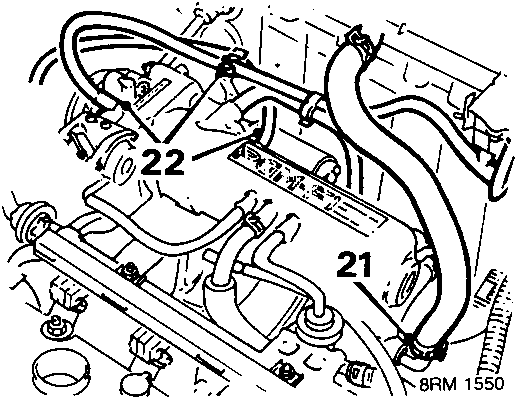

Diagram showing disconnecting brake servo vacuum hose from pipe, item 21; disconnecting air cleaner and MAP sensor hoses from inlet manifold and clip, item 22
  1. Disconnect brake servo vacuum hose from pipe.
  2. Disconnect air cleaner and MAP sensor hoses from inlet manifold and clip.

CAUTION: Plug the connections.

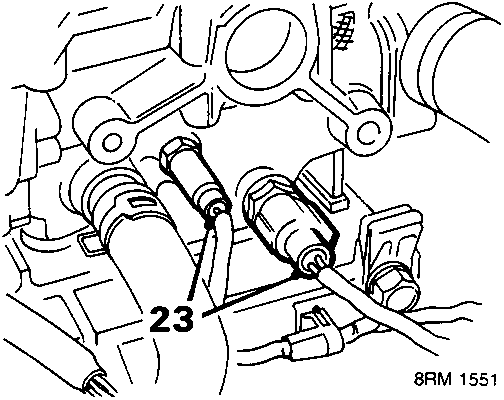

Diagram showing disconnecting 2 coolant sensor plugs at cylinder head, item 23
  1. Disconnect 2 coolant sensor plugs at cylinder head.

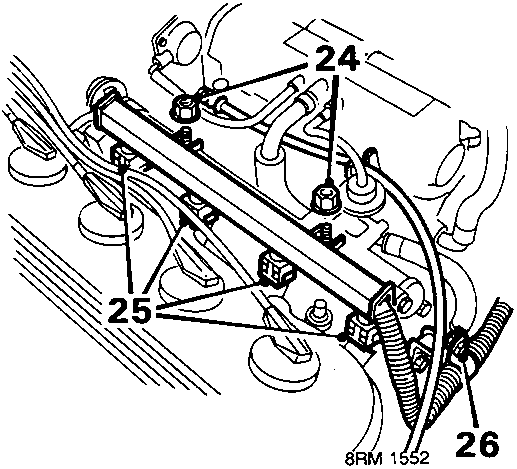

Diagram showing removal of nuts securing harness cover to inlet manifold, item 24; disconnecting 4 multiplugs from injectors, item 25; removing bolt, harness to bracket, item 26
  1. Remove 2 nuts securing harness cover to inlet manifold.
  2. Disconnect 4 multiplugs from injectors.
  3. Remove bolt, harness to bracket.
