Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual05 · Engine 1.6
05 · Engine

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
Engine 1.6Remove

Service Repair No. 12.65.41

Remove

  1. Remove camshaft cover, see Camshaft Cover Gasket.

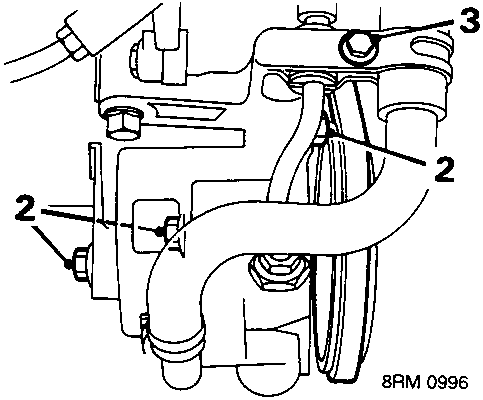

Figure

Power steering

  1. Remove 3 bolts securing power steering pump to bracket.
  2. Remove bolt securing power steering pipe clamp.

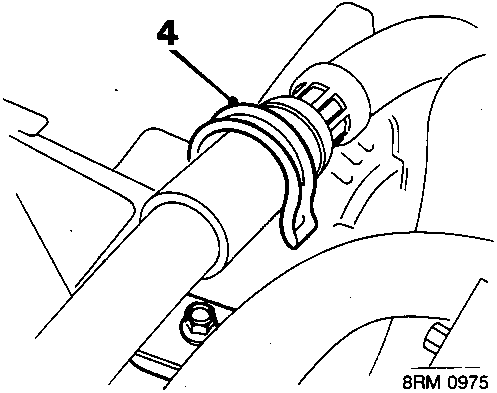

Diagram showing release of power steering hose from clip
  1. Release power steering hose from clip.
  2. Release belt from power steering pump pulley and move pump aside.

CAUTION: Keep pump upright to avoid fluid spillage.

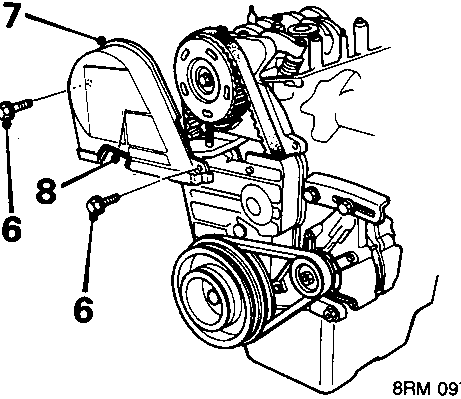

Diagram showing removal of timing belt cover bolts and withdrawal of cover from engine

All models

  1. Remove 2 bolts securing timing belt cover to engine.
  2. Withdraw cover.
  3. Remove sealing strip.

Refit

  1. Position new sealing strip on timing belt cover.
  2. Locate timing belt cover on engine and secure with 2 bolts; tighten bolts to 10 Nm.

Power steering

  1. Locate power steering pump and fit securing bolts, tighten to 35 Nm.
  2. Locate power steering hose in clip.
  3. Position power steering pipe clamp; tighten bolt to 15 Nm.
  4. Fit and tension power steering pump drive belt, see MAINTENANCE.

All models

  1. Fit camshaft cover, see Camshaft Cover Gasket.

CAMSHAFT TIMING BELT BOTTOM COVER

Service Repair No. 12.65.43

Remove

  1. Power steering: Remove power steering drive belt, see MAINTENANCE.
  2. Air conditioning: Remove air conditioning compressor drive belt, see MAINTENANCE.
  3. Remove alternator drive belt, see MAINTENANCE.
  4. Remove camshaft timing belt top cover, see Camshaft Timing Belt Top Cover.
  5. Remove underbelly panel, see BODY – Repairs.
  6. Remove starter motor, see ELECTRICAL – Repairs.

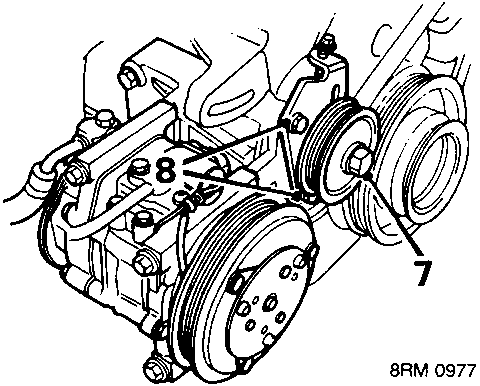

Diagram showing removal of air conditioning compressor adjuster pulley bolt and mounting bracket bolts
  1. Air conditioning: Remove bolt securing air conditioning compressor drive belt adjuster pulley.
  2. Remove 2 bolts securing mounting bracket.
