Remove

Service Repair No. 12.29.43

Remove

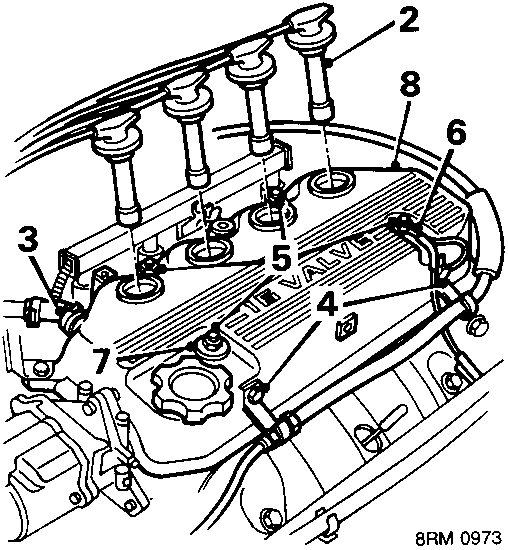

1. Release h.t. leads from clips.

2. Disconnect h.t. leads from spark plugs.
3. Slacken clip; disconnect P.C.V. hose from camshaft cover.
4. Remove 2 bolts – throttle cable brackets to camshaft cover.
5. Remove 4 nuts securing camshaft cover.
6. Release earth leads from securing nut stud.
7. Remove 4 sealing washers from studs.
8. Raise L.H. side of camshaft cover and manoeuvre it clear of timing belt cover; lift off camshaft cover.

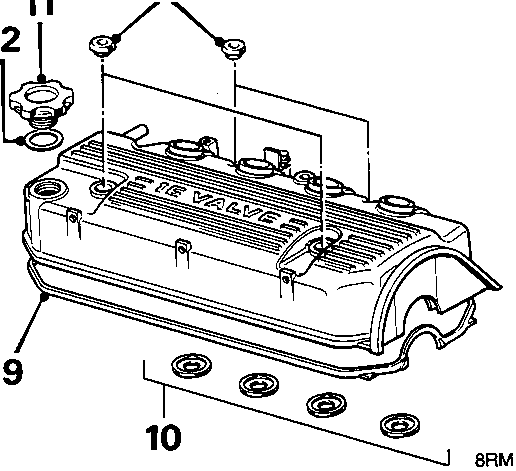

9. Remove gasket.
10. Remove 4 spark plug sealing rings.
11. Remove oil filler cap.
12. Remove 'O' ring from oil filler cap.
13. Remove 4 sealing grommets from securing stud holes.

Refit

1. Ensure all traces of gasket are removed from cylinder head and camshaft cover.
2. Fit new 'O' ring to oil filler cap; fit cap.
3. Fit 4 new grommets in securing stud holes.
4. Fit new camshaft cover gasket to camshaft cover.

CAUTION: Fit gasket dry.

5. Fit camshaft cover; ensure gasket is not disturbed.
6. Fit sealing washer to each securing nut stud.
7. Fit earth leads to securing nut stud.
8. Fit camshaft cover nuts; tighten progressively to 10 Nm.
9. Secure throttle cable brackets to camshaft cover.
10. Connect P.C.V. hose to camshaft cover; tighten clip.
11. Connect h.t. leads to spark plugs.
12. Secure h.t. leads in clips.
13. Run engine; check for oil leaks.

CYLINDER HEAD GASKET

Service Repair No. 12.29.02

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Drain cooling system, – see MAINTENANCE.

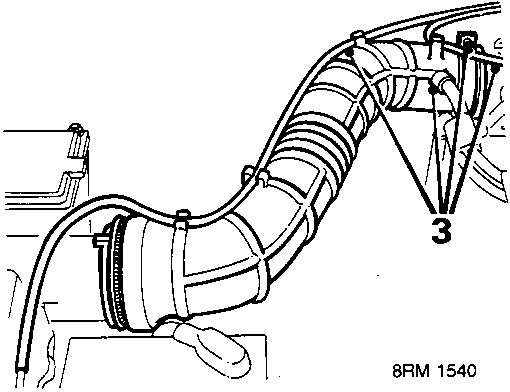

3. Disconnect vacuum pipe from air cleaner. Release 2 vacuum pipes from clips. Slacken hose clip, disconnect trunking from throttle housing and air cleaner. Release clip and disconnect breather pipe from trunking.
