Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual05 · Engine 1.6
05 · Engine

Power steering

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Power steering
Engine 1.6Power steering · page 1 of 2

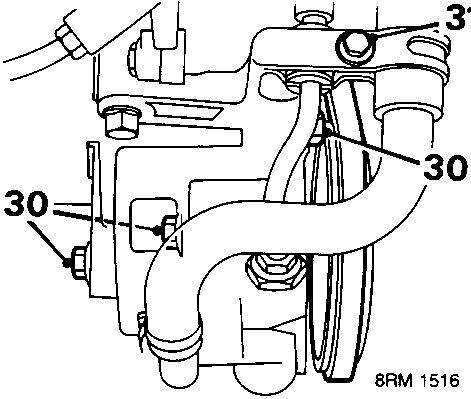

Diagram showing power steering pump and pipe clamp connections, with callout numbers 30 and 31.

Power steering

  1. Remove 3 bolts securing power steering pump to engine bracket.
  2. Remove bolt securing power steering pipe clamp.

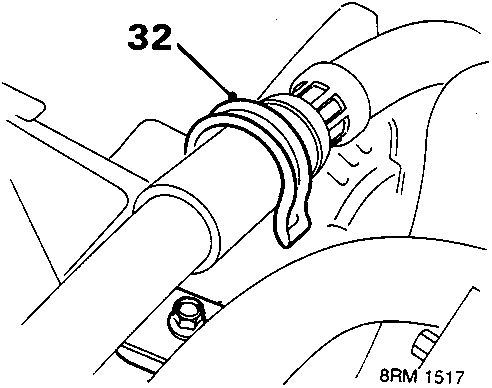

Diagram showing release of power steering hose from clip, with callout number 32.
  1. Release power steering hose from clip.
  2. Release drive belt from pump pulley; move pump aside.

CAUTION: Keep pump upright to avoid oil spillage.

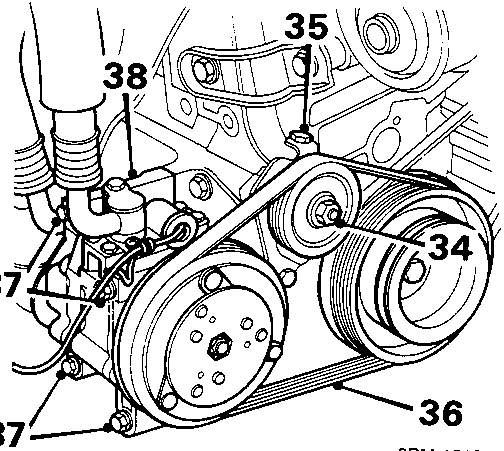

Diagram showing air conditioning compressor, tensioner pulley, and drive belt, with callout numbers 34, 35, 36, 37, and 38.

Air conditioning

  1. Slacken tensioner pulley nut.
  2. Slacken belt adjustment bolt.
  3. Remove compressor drive belt.
  4. Remove 4 bolts, compressor to engine bracket.
  5. Retain compressor aside.

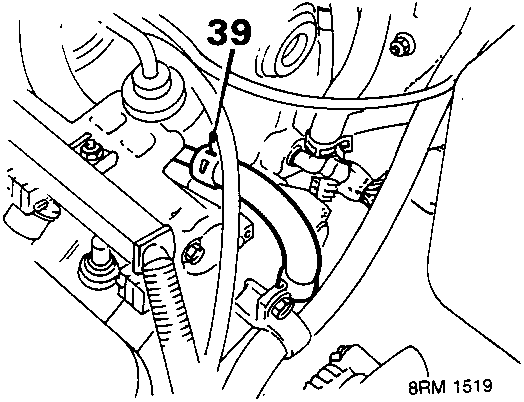

Diagram showing fuel return hose connection to fuel rail, with callout number 39.

All models

  1. Disconnect fuel return hose from fuel rail.

CAUTION: Plug the connections.

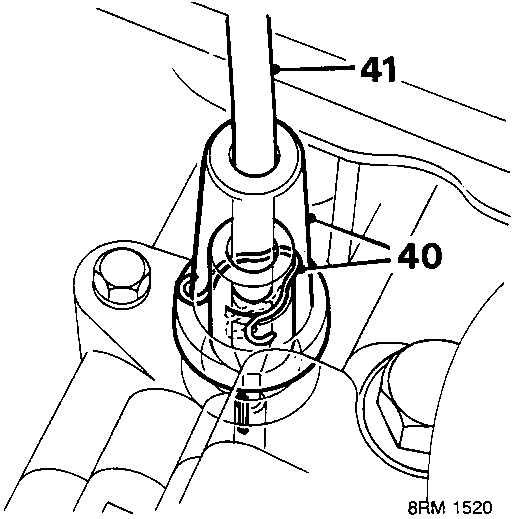

Diagram showing speedometer cable gaiter and pinion connection to gearbox, with callout numbers 40 and 41.
  1. Turn gaiter 90° to disengage clip, speedometer cable to gearbox.

CAUTION: Speedometer pinion may drop into gearbox if gaiter is removed.

  1. Disconnect speedometer cable from gearbox.
  2. Remove front exhaust pipe, see MANIFOLD & EXHAUST – Repairs.

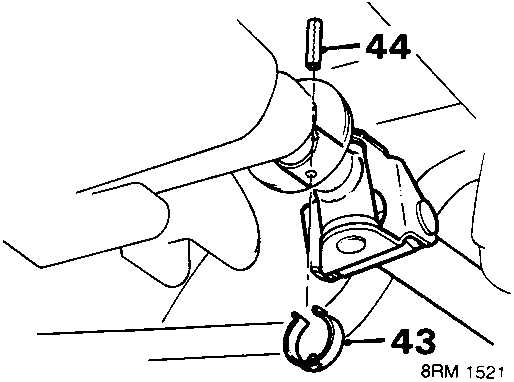

Diagram showing selector rod roll pin and retaining clip, with callout numbers 43 and 44.
  1. Pull back gaiter and remove clip retaining selector rod roll pin.
  2. Using a suitable punch, drive out selector rod roll pin.
