Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual05 · Engine 1.6
05 · Engine

Power steering (page 2 of 2)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs
Engine 1.6Power steering · page 2 of 2

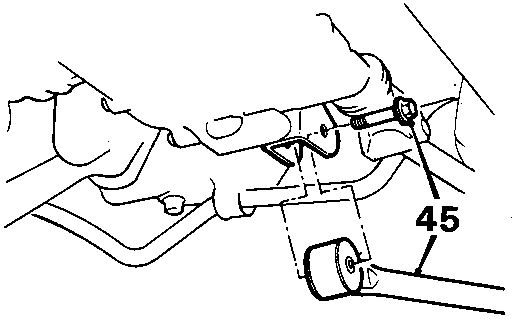

Diagram showing gear change steady bar connected to gearbox with callout number 45 pointing to a bolt

8RM 1522

  1. Remove bolt and disconnect gear change steady bar from gearbox.
  2. Disconnect clutch cable from release lever, see CLUTCH – Clutch Cable – 1.6.
  3. Air conditioning: Release air conditioning pipe from engine clip.

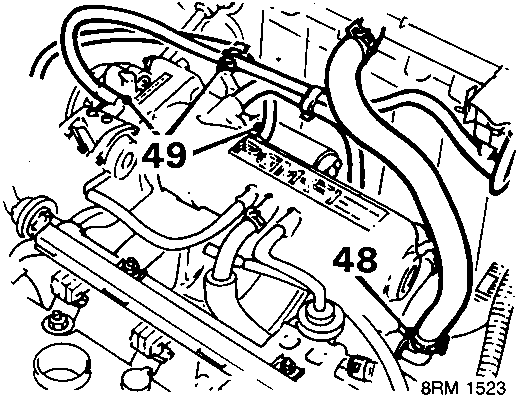

Diagram of engine inlet manifold area with callout numbers 49 and 48 pointing to vacuum pipes and hoses

8RM 1523

  1. Disconnect brake servo vacuum hose from pipe.

CAUTION: Plug the connections.

  1. Disconnect 2 vacuum pipes from inlet manifold and clip.

CAUTION: Plug the connections.

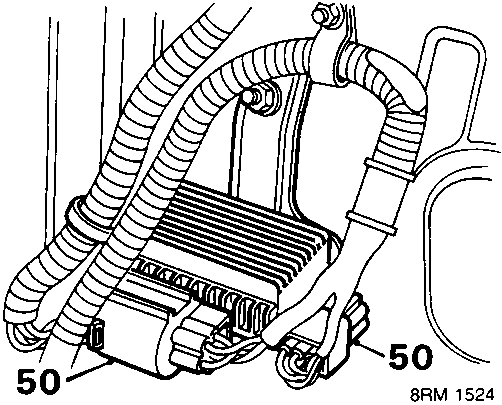

Diagram showing engine wiring harness multiplugs with callout number 50 pointing to retaining brackets and connectors

8RM 1524

  1. Release 2 engine harness multiplugs from retaining brackets.
  2. Disconnect engine harness at 2 multiplugs.
  3. Disconnect L.H. drive shaft from intermediate shaft, see MANUAL GEARBOX – 1.6 – Differential oil seal – L.H.
  4. Disconnect R.H. drive shaft from differential, see MANUAL GEARBOX – 1.6 – Differential oil seal – R.H.

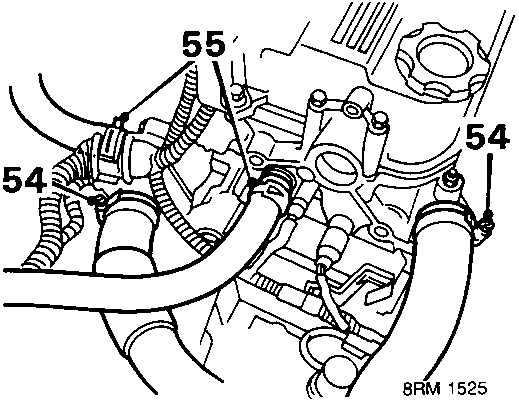

Diagram of engine coolant and heater hose connections with callout numbers 54 and 55 pointing to clips and hoses

8RM 1525

  1. Slacken clips, disconnect coolant top and bottom hoses from engine.
  2. Release 2 clips, disconnect heater hoses from engine.

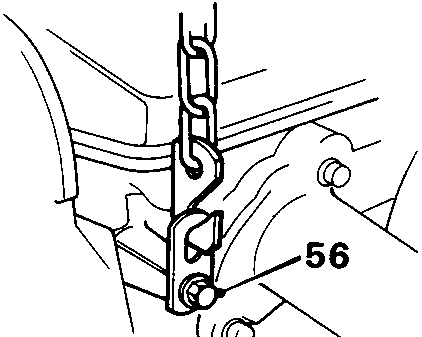

Diagram showing lifting bracket fitted to cylinder head with a spacer and bolt, callout number 56

8RM 1526

  1. Fit lifting bracket to cylinder head with a 20 mm thick spacer under bracket using a 10 mm bolt, tighten to 30 Nm.

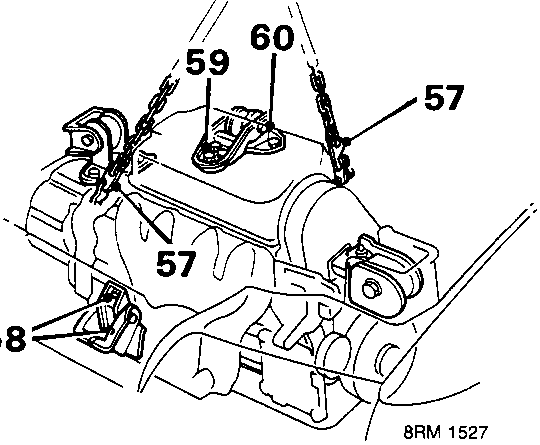

Diagram of engine and gearbox suspended by lifting chains attached to brackets, with callout numbers 57, 58, 59, and 60

8RM 1527

  1. Attach lifting chains to engine and gearbox brackets and support weight of engine.
  2. Remove 2 bolts, front mounting to gearbox.

CAUTION: Do not slacken front mounting through bolt.

  1. Remove 3 bolts, rear mounting bracket to gearbox bracket.
  2. Slacken rear mounting through bolt, raise mounting bracket clear of gearbox.
