Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual05 · Engine 1.6
05 · Engine

Oil sump gasket (page 3 of 3)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs
Engine 1.6Oil sump gasket · page 3 of 3

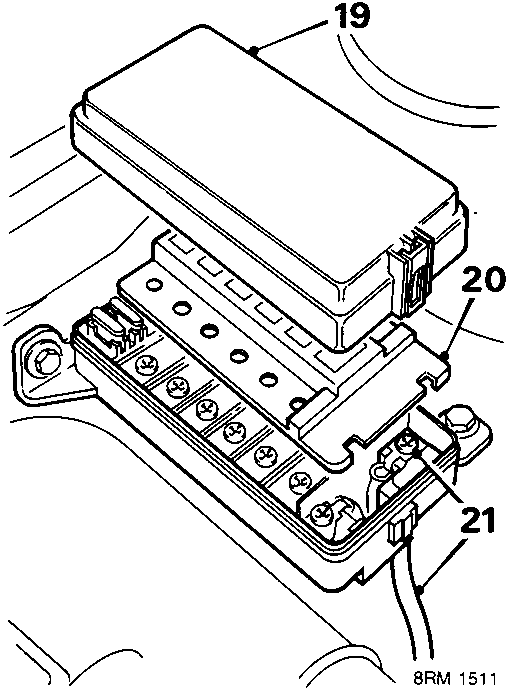

Diagram showing fusebox cover (19), fuse cover plate (20), and battery lead connection point (21)
  1. Remove fusebox cover.
  2. Remove fuse cover plate.
  3. Remove screw, battery lead to fusebox and release lead. Refit screw.

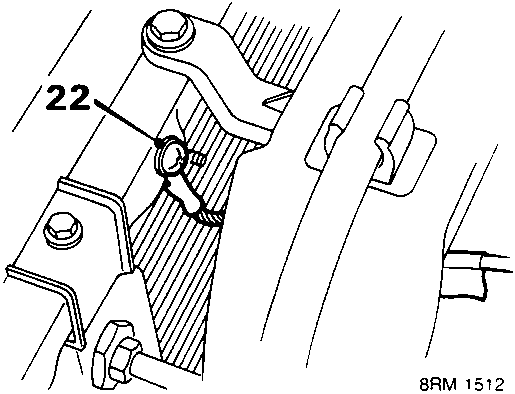

Diagram showing bolt (22) securing engine earth lead to bonnet lock platform
  1. Remove bolt, engine earth lead to bonnet lock platform.
  2. Remove starter motor, see ELECTRICAL – Repairs.

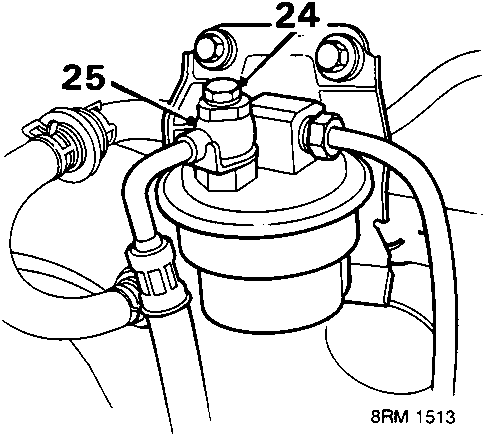

Diagram showing fuel filter with sealing bolt (24) and banjo bolt (25)
  1. Position absorbent cloth around sealing bolt. Slacken bolt to relieve fuel pressure. Retighten bolt to 12 Nm.
  2. Unscrew banjo bolt, disconnect fuel outlet pipe from filter and collect 2 sealing washers.

CAUTION: Plug the connections.

  1. Remove distributor, see ENGINE MANAGEMENT SYSTEM PGM – Fi – Repairs.

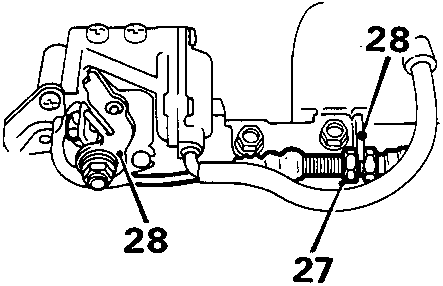

Diagram showing throttle cable locknut (27) and bracket connection point (28)
  1. Slacken throttle cable locknut.
  2. Release throttle cable from bracket and throttle linkage.

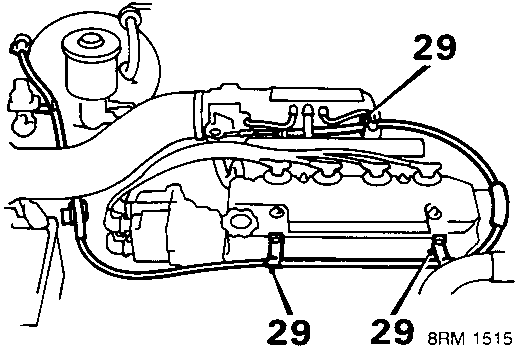

Diagram showing throttle cable retained by three clips (29) on intake manifold
  1. Release throttle cable from 3 retaining clips.
