05 · Engine

Oil sump gasket (page 2 of 3)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs
Engine 1.6Oil sump gasket · page 2 of 3

Service Repair No. 12.37.01

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove bonnet, see BODY – Repairs.
  2. Remove underbelly panel, see BODY – Repairs.
  3. Drain engine oil, see MAINTENANCE

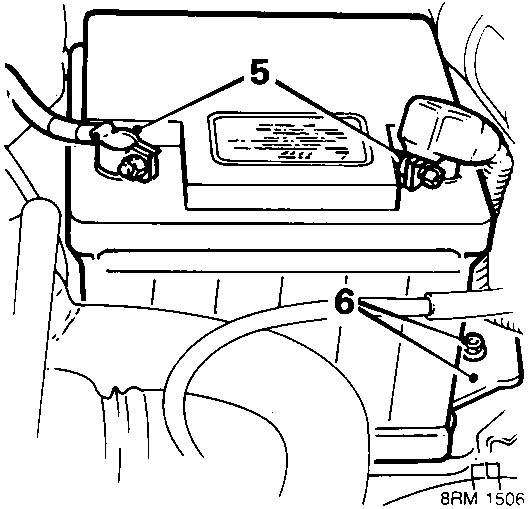

Diagram showing battery with callout numbers 5 and 6
  1. Disconnect both battery leads.
  2. Remove bolt and battery clamp, lift out battery.
  3. Drain cooling system, see MAINTENANCE
  4. Drain gearbox oil, see MAINTENANCE

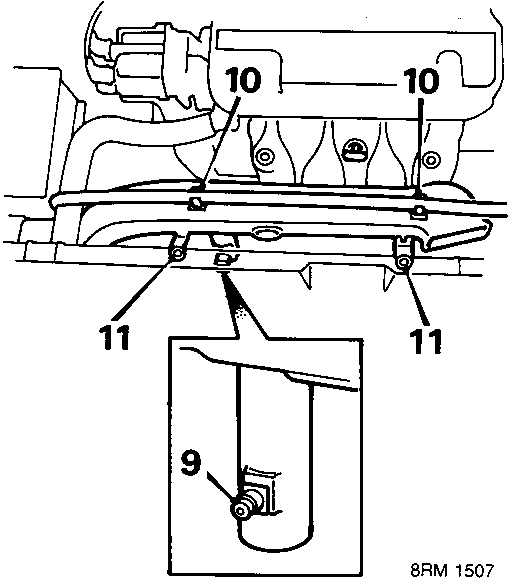

Diagram showing air duct and expansion tank hose connections with callout numbers 9, 10, and 11
  1. Release clip and remove side branch from air duct.
  2. Release expansion tank hose from 2 clips.
  3. Remove 2 bolts, air duct to bonnet lock platform and remove air duct.

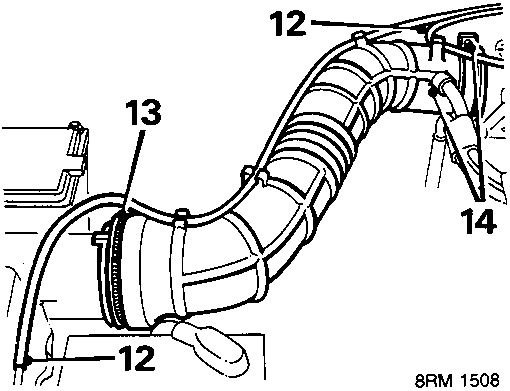

Diagram showing vacuum pipe and intake trunking connections with callout numbers 12, 13, and 14
  1. Disconnect vacuum pipe from air cleaner and intake trunking clips.
  2. Disconnect intake trunking from air cleaner.
  3. Slacken hose clip, remove intake trunking from throttle housing. Release clip and disconnect breather pipe from trunking.

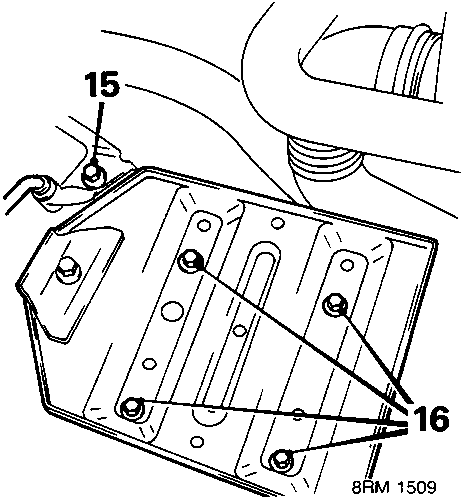

Diagram showing ABS pipe and battery tray mounting with callout numbers 15 and 16
  1. ABS6: Remove bolt, ABS pipe to battery tray.
  2. Remove 4 bolts, battery tray to body and remove battery tray.

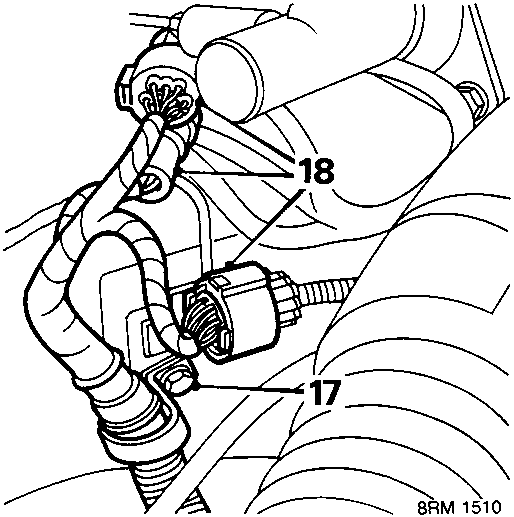

Diagram showing engine harness retaining strap and multiplug connections with callout numbers 17 and 18
  1. Remove bolt and release strap retaining engine harness.
  2. Disconnect 3 engine harness multiplugs.
