Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual05 · Engine 1.6
05 · Engine

Power steering (page 2 of 3)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs
Engine 1.6Power steering · page 2 of 3

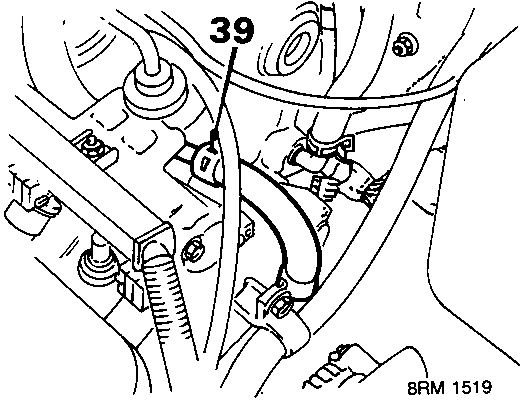

Diagram showing fuel return hose connection point labeled 39

All models

  1. Disconnect fuel return hose from fuel rail.

CAUTION: Plug the connections.

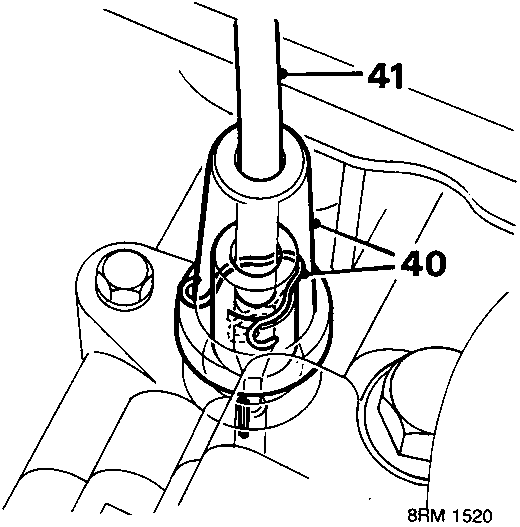

Diagram showing speedometer cable gaiter and pinion labeled 40 and 41
  1. Turn gaiter 90° to disengage clip, speedometer cable to gearbox.

CAUTION: Speedometer pinion may drop into gearbox if gaiter is removed.

  1. Disconnect speedometer cable from gearbox.
  2. Remove front exhaust pipe, see MANIFOLDS AND EXHAUST – Repairs.

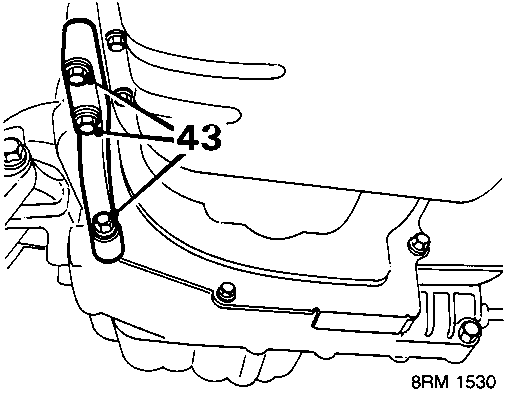

Diagram showing anti-beaming bracket bolts labeled 43
  1. Remove 3 bolts, anti – beaming bracket to engine and gearbox. Collect anti – beaming bracket.

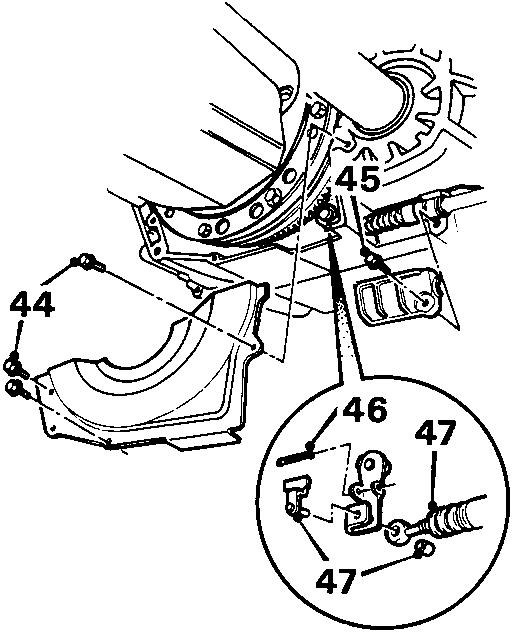

Diagram showing drive plate cover, selector cable holder, split pin, control pin and roller labeled 44, 45, 46, 47
  1. Remove 3 bolts drive plate cover to torque converter housing. Collect drive plate cover
  2. Remove bolt securing selector cable holder; release cable from holder.
  3. Remove split pin securing selector cable control pin.
  4. Remove control pin and roller; withdraw selector cable from gearbox.
  5. Air conditioning: Release air conditioning pipe from engine clip.

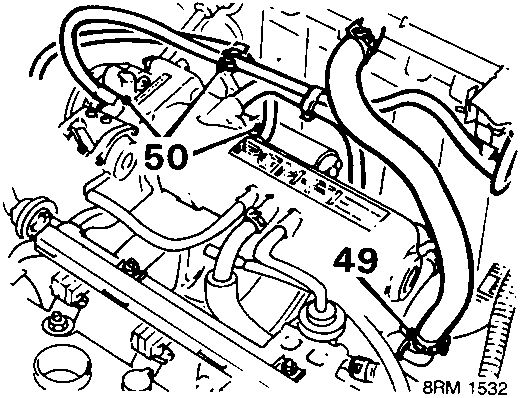

Diagram showing brake servo vacuum hose and inlet manifold vacuum pipes labeled 49, 50
  1. Disconnect brake servo vacuum hose from pipe.

CAUTION: Plug the connections.

  1. Disconnect 2 vacuum pipes from inlet manifold and clip.

CAUTION: Plug the connections.
