Adjust folding roof center - L67

Make

Vauxhall

Model

Astra H

Section

Folding roof › Repair Instructions › Adjust folding roof center - L67

Body EquipmentAdjust folding roof center - L67

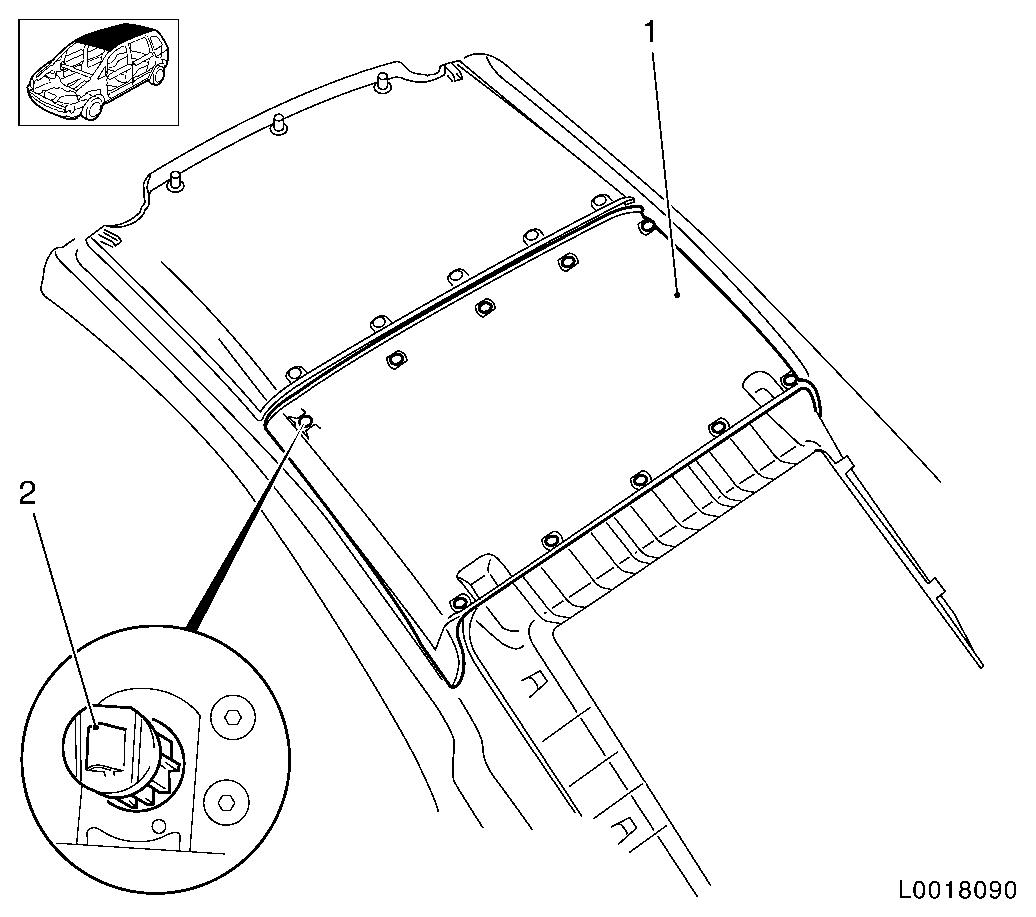

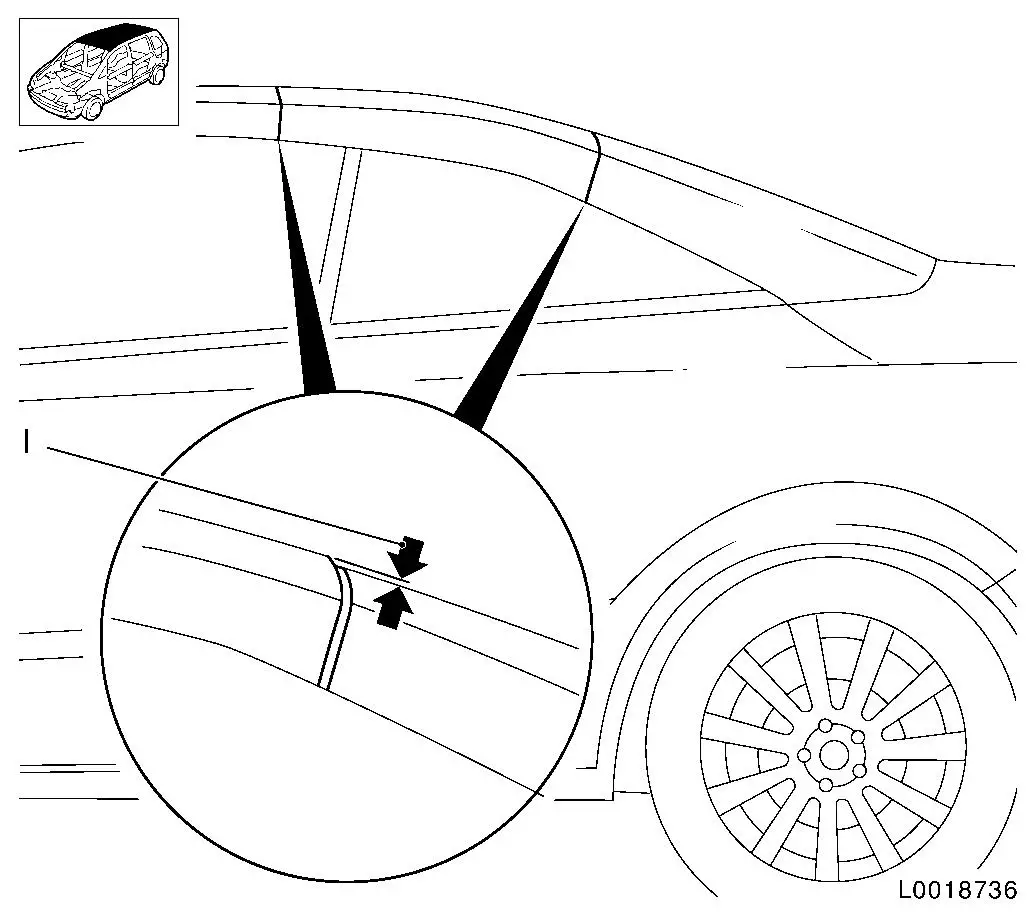

Adjust folding roof center - L67 Important:   Operation to be carried out only by certified service operators.   Adjust 1.   Fold down seat 2.   Remove moulded headlining (1) •   Unclip 10x clips (2) •   Remove moulded headlining 3.   Measure folding roof center gap •   Check gaps (l) – Height offset on the body fold front, rear to rear window, each right and left 1.0 +/- 1.0 mm 4.   Adjust folding roof if needed 5.   Align folding roof center (1) - both sides Note:   Place shims under the 6x bolts (2) so that the offset on the body fold font, and to the rear window both right and left is 1.0 +/- 1.0 mm. 6.   Measure folding roof offset •   Check gaps – Offset on the body fold front, rear to rear window, each right and left 1.0 +/- 1.0 mm 7.   Adjust if needed 8.   Measure folding roof center gaps •   Check gaps (l) – Gap over complete length, front 7.5 +/- 1.0 mm 9.   Adjust folding roof if needed 10.   Open folding roof halfway 11.   Align folding roof center (1) - both sides •   Loosen 6x bolts (2) •   Adjust folding roof •   Tighten 6x bolts (2) Note:   Adjust folding roof so that a gap in closed state of 7.5 +/- 1.0 mm tolerance exists. 12.   Close folding roof 13.   Measure folding roof center gap •   Check gaps – Offset on the body fold front, rear to rear window, each right and left 1.0 +/- 1.0 mm 14.   Adjust if needed 15.   Install moulded headlining •   Insert moulded headlining •   Clip in 10x clips 16.   Return seat to its original position
