Replace rear window centering - L67 (Folding roof)

Make

Vauxhall

Model

Astra H

Section

Folding roof › Repair Instructions › Replace rear window centering - L67

Body EquipmentReplace rear window centering - L67

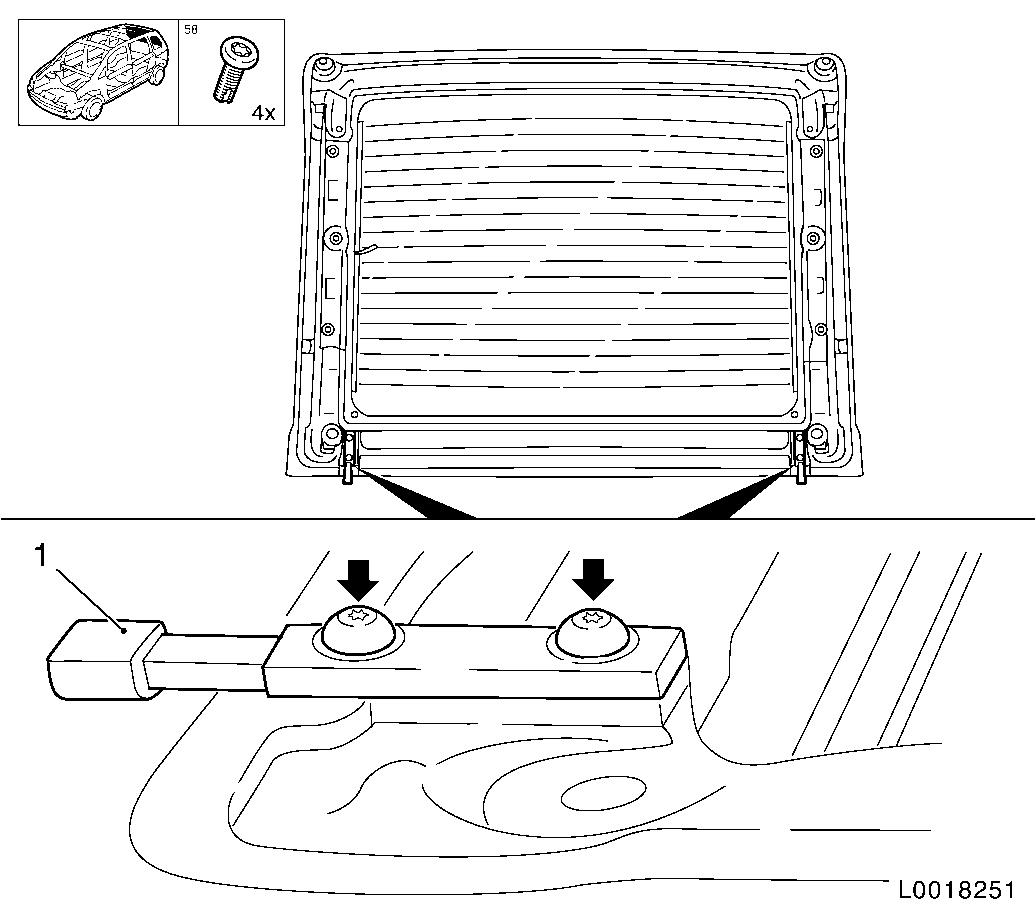

Replace rear window centering - L67   Remove 1.   Detach rear window panelling 2.   Detach rear window centering (1) - both sides •   Unscrew 2x screws (arrows) - left side   Install 3.   Attach rear window centering •   Tighten 2x bolts 8 Nm Note:   Screws are microencapsulated and must be replaced! Threads re-cut! 4.   Attach rear window panelling

04 Body & interior
