70 BodyworkDashboard · page 2 of 2

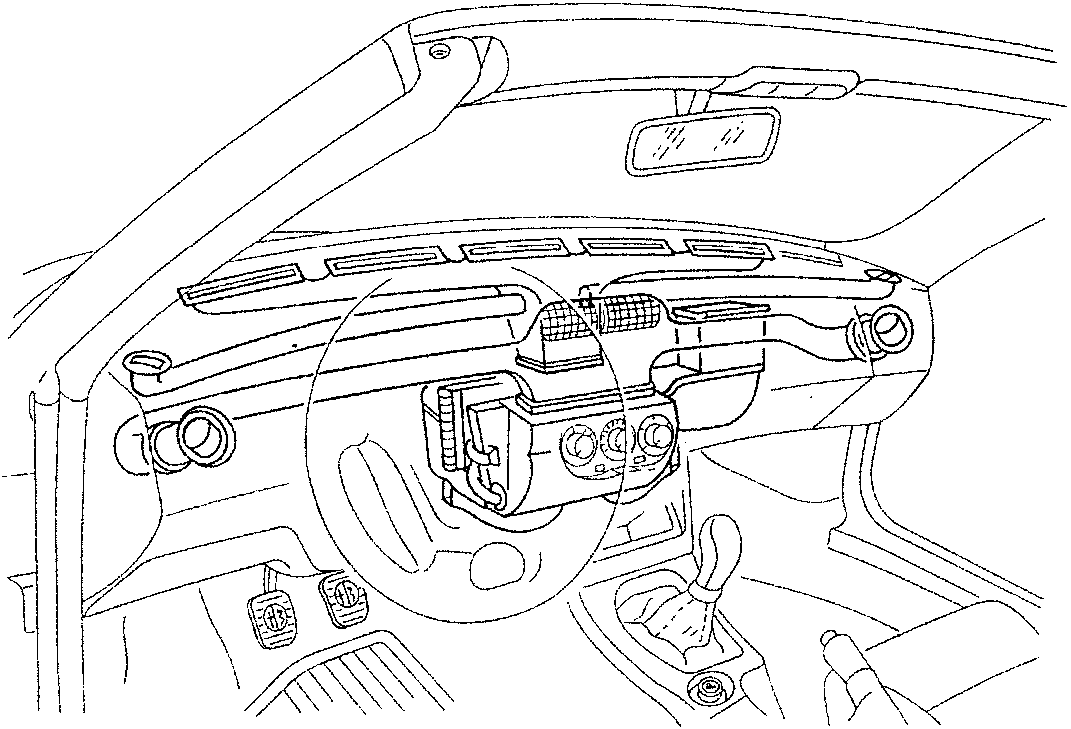

Below the dashboard are the housings for the heater-conditioner unit and the stiff air distribution ducts to the various outlets in the passenger compartment. For further information see "Group 50 - Auxiliary Components".

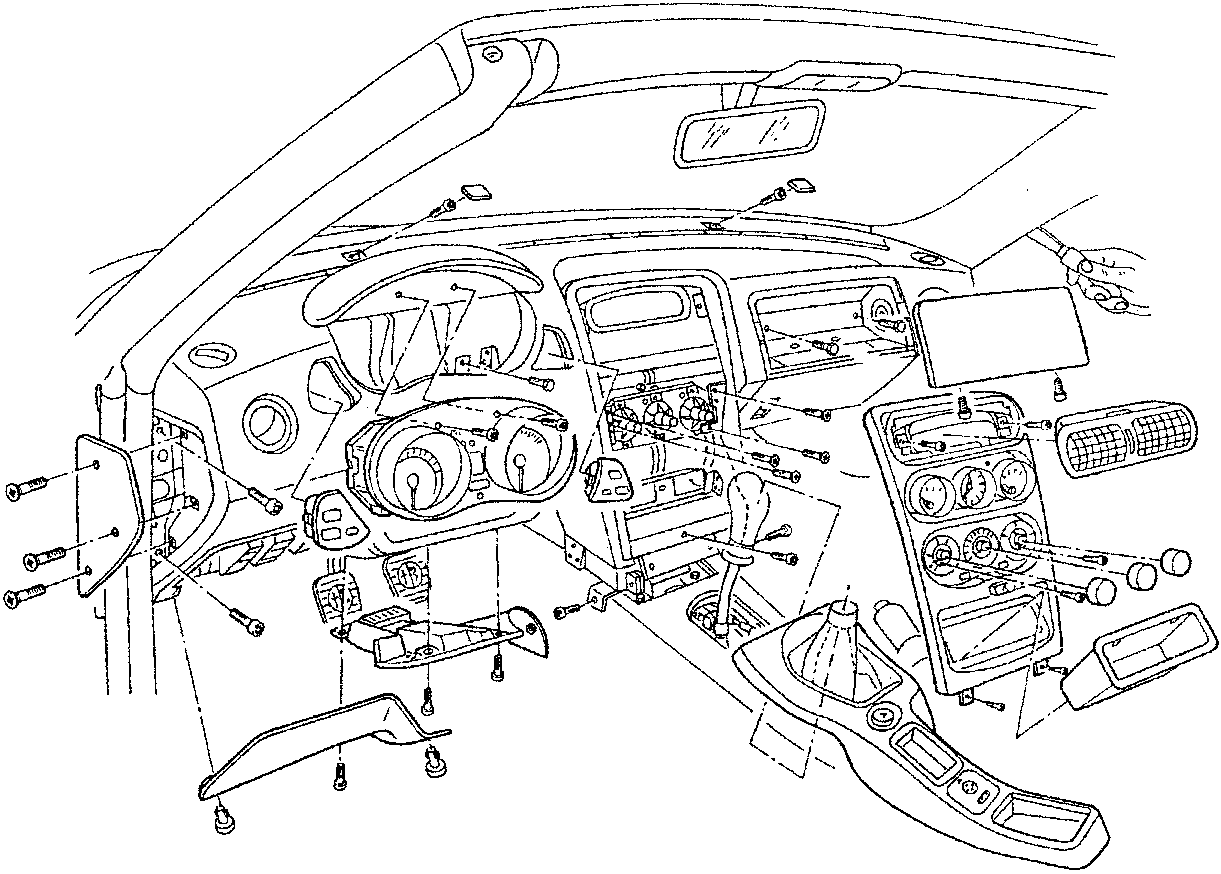

The illustration below is a "blown-up" view showing the parts comprising the dashboard and the location of the various fastening points.
