70 BodyworkREMOVAL / REFITTING (to '97 versions) · page 2 of 2

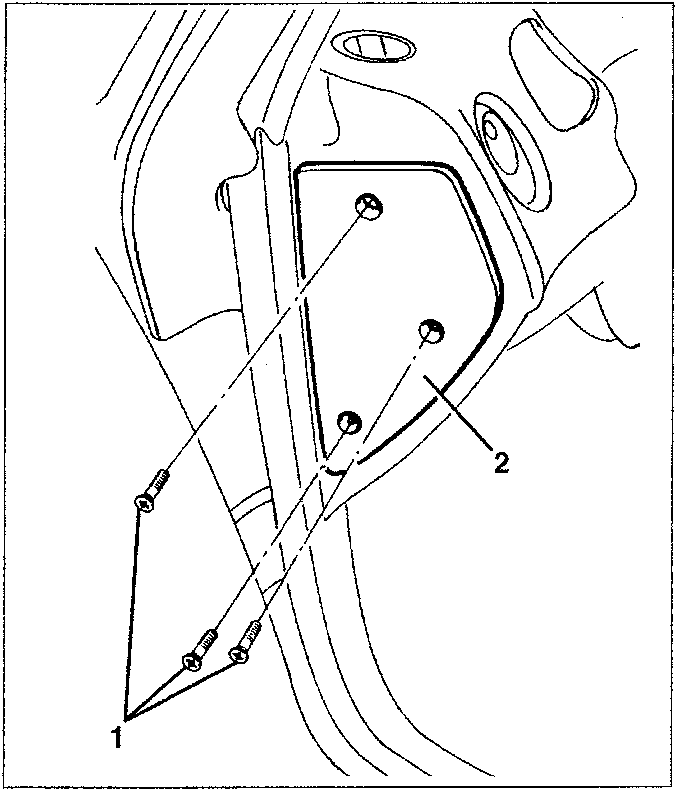

  1. Working on each side of the dashboard, slacken the three screws fastening the plate.
  2. Remove the plate.
Diagram showing three screws fastening a plate to the dashboard, with callouts 1 and 2 pointing to the screws and plate respectively

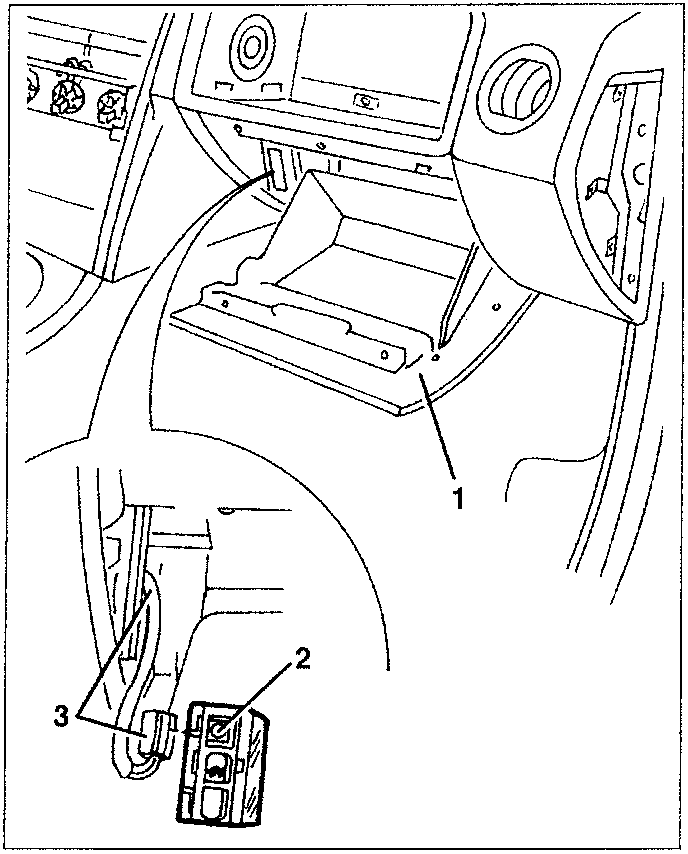

  1. Open the glovebox.
  2. Remove the lamp unit complete.
  3. Disconnect the electrical connection and release the wiring from the slot.
Diagram showing the glovebox open with a lamp unit labeled 1 and an electrical connector labeled 2, with callout 3 pointing to the wiring harness

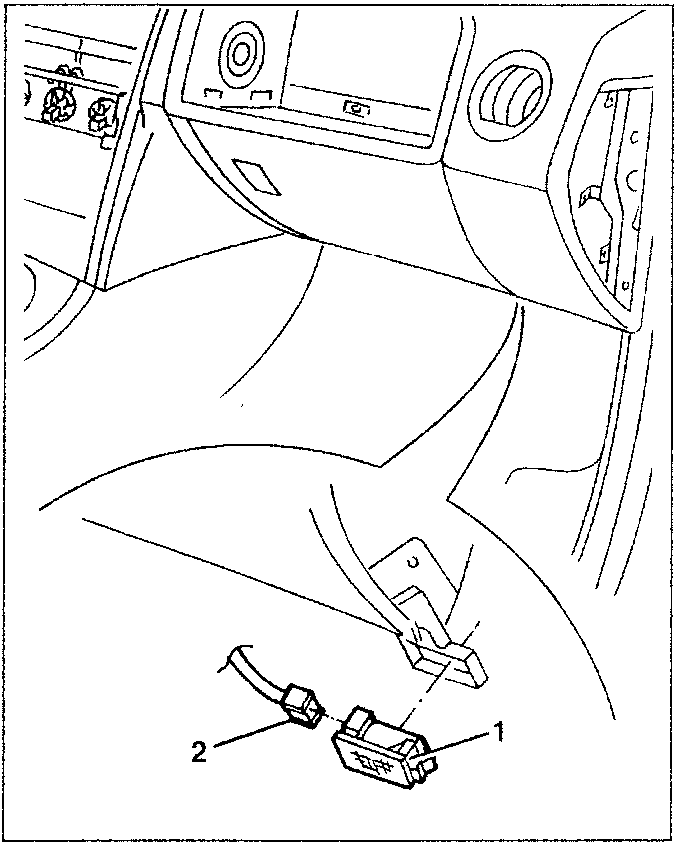

  1. Remove the right lower lamp.
  2. Disconnect the electrical connection.
Diagram showing the right lower lamp removed with its electrical connector labeled 1 and the wiring labeled 2
  1. Slacken the three screws fastening the dashboard lower bracket.
  2. Remove the bracket.
Diagram showing the dashboard lower bracket with two screws labeled 1 and a mounting point labeled 2
