Controls unit

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Climate control › Controls unit

Right-hand drive variantsControls unit

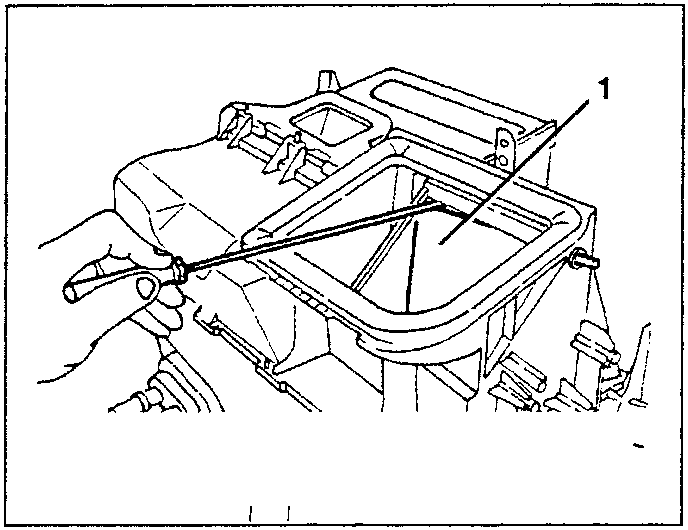

1. Release the outside air/recirculation port from the two fastening clips and remove it.

Controls unit

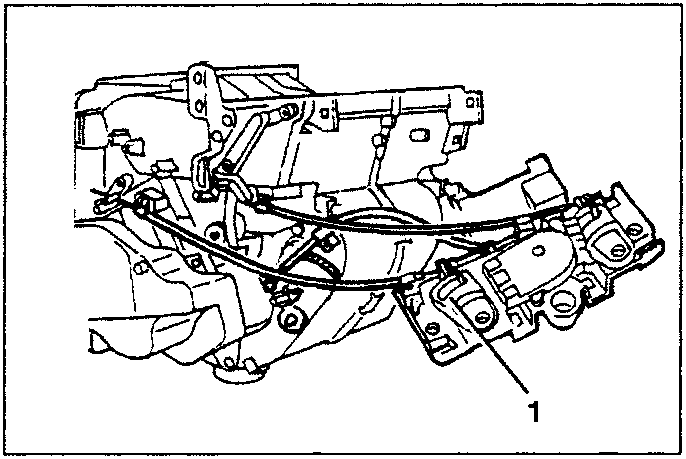

1. Disconnect the three bowden cables from the climate unit, then remove them complete with the controls unit.

Evaporator

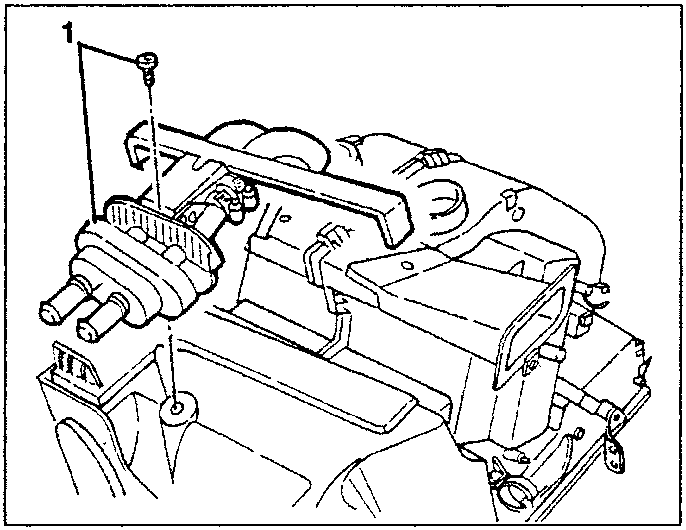

1. Slacken the fastening screw and remove the coolant fluid delivery and return pipes.

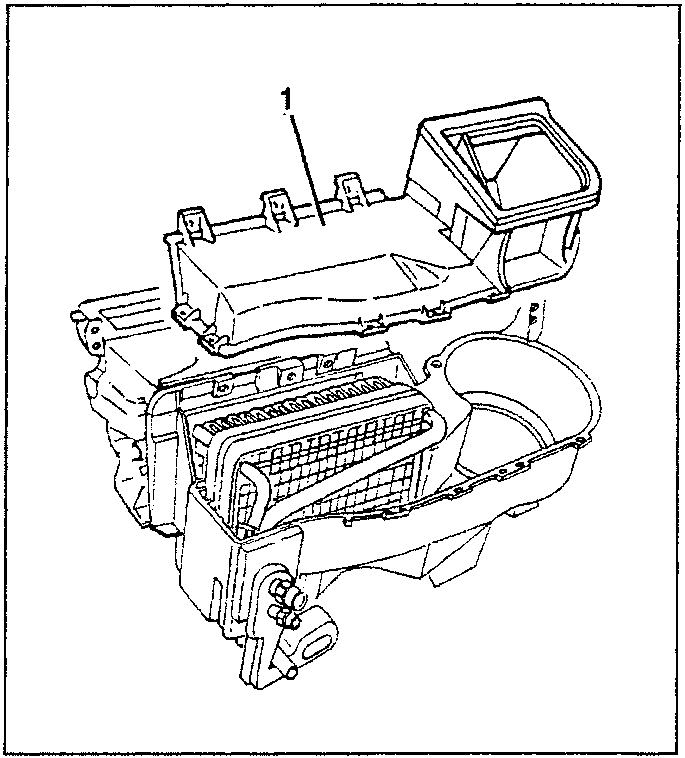

1. Slacken the fastening screws and remove the heater upper half box releasing it from the fastening clips.

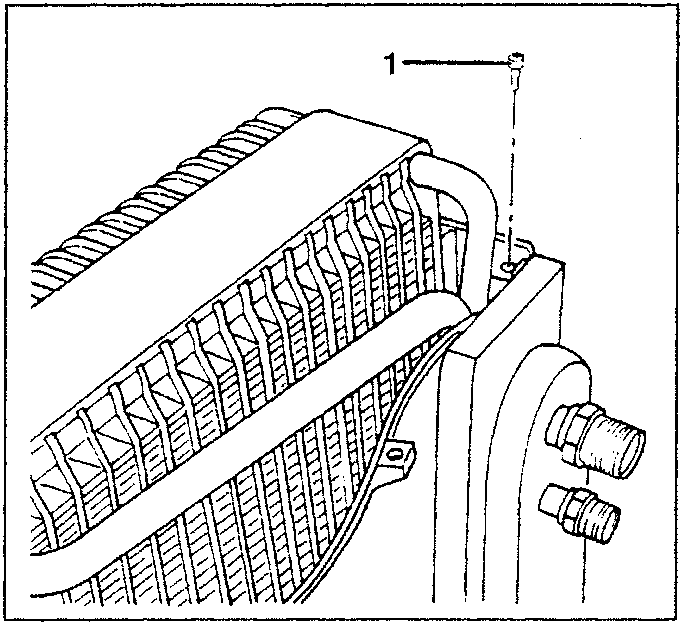

1. Slacken the evaporator fastening screw.

21 General
