IN-VEHICLE OPERATIONS

CLIMATE UNIT CONTROLS

Removal and Refitting

  • Disconnect the battery negative terminal.
  • Remove the centre console (see GROUP 70, base manual)
  1. Slacken the four fastening screws and remove the controls unit.

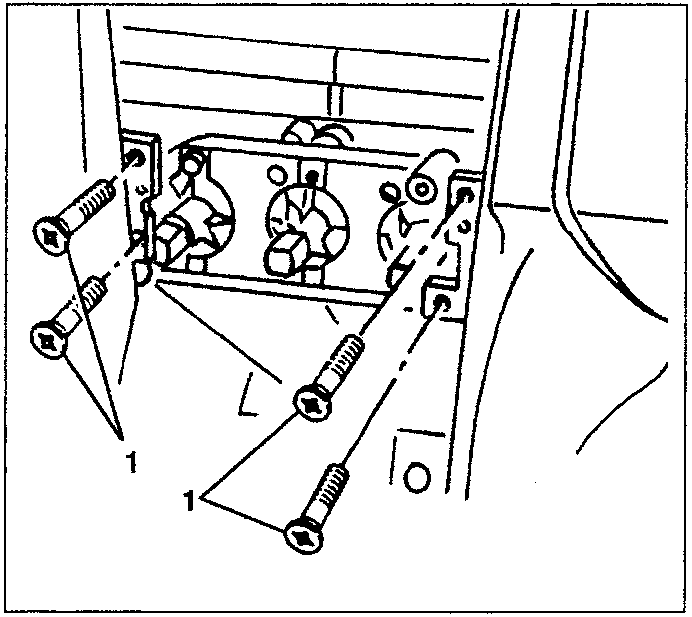

Diagram showing climate control unit with four screws labeled 1 and electrical connections.
  1. Disconnect the two electrical connections.
  2. Release the three bowden cables slackening the fastening clamps and removing the washers fastening the end ring.
  3. Slacken the two fastening screws and remove the climate control fan speed switch.

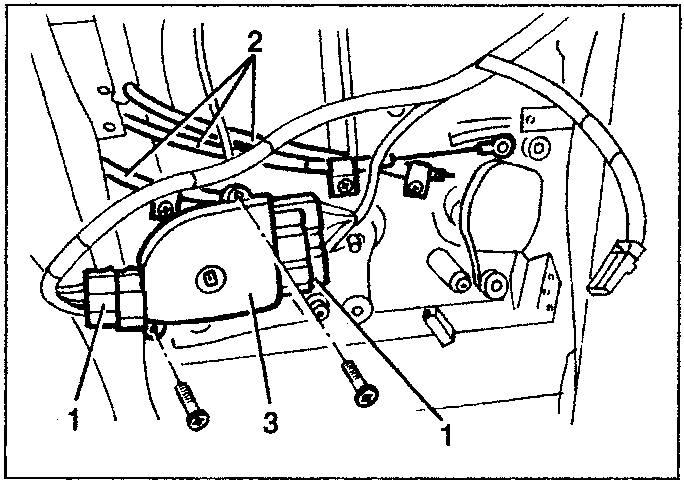

Diagram showing climate control unit with three bowden cables labeled 1, 2, 3 and electrical connections.

If necessary, remove the three bowden control cables of the mixing and distribution ports.

  • Without removing the steering wheel, half boxes, steering column control lever, etc., free the dashboard fasteners to move it aside, especially on the left-hand side (for further details see GROUP 70, base manual).
  1. Slacken the two fastening screws and remove the side guard.
  2. Loosen the fastening clamps of cables
  3. Remove the bowden cables.

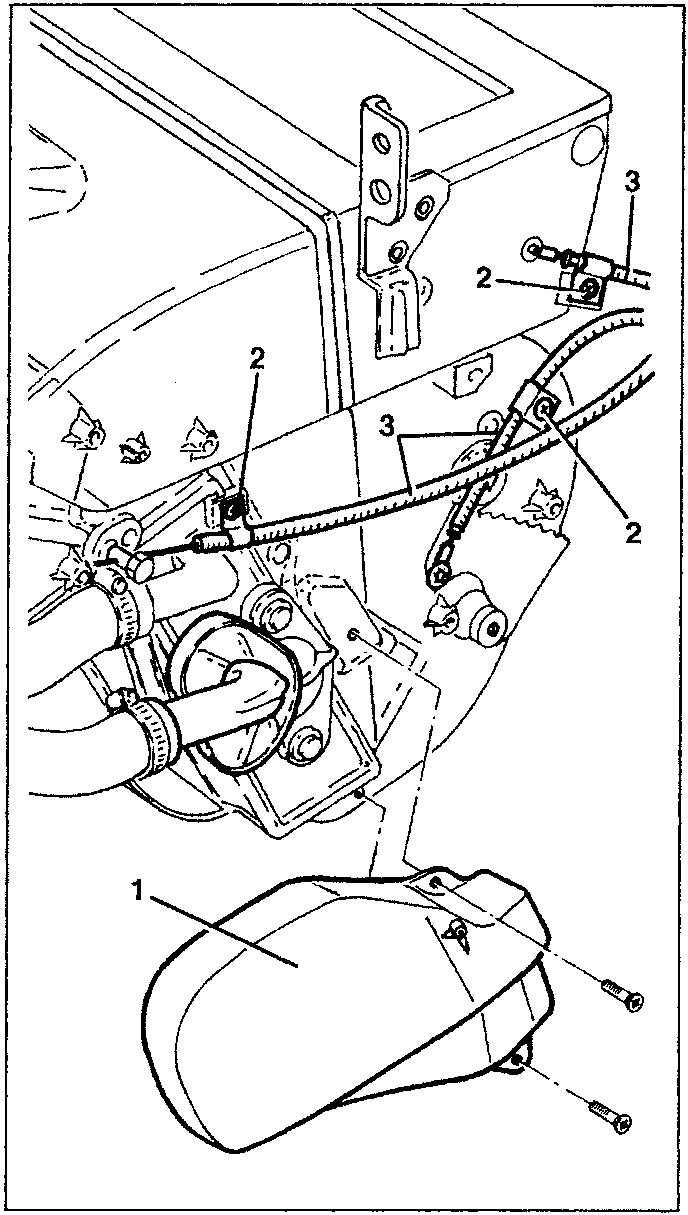

Diagram showing side guard, cables, and bowden cables labeled 1, 2, 3.

When refitting adjust the bowden cables operating as illustrated in next figure.
