Right-hand drive variantsElectric fan

Electric fan

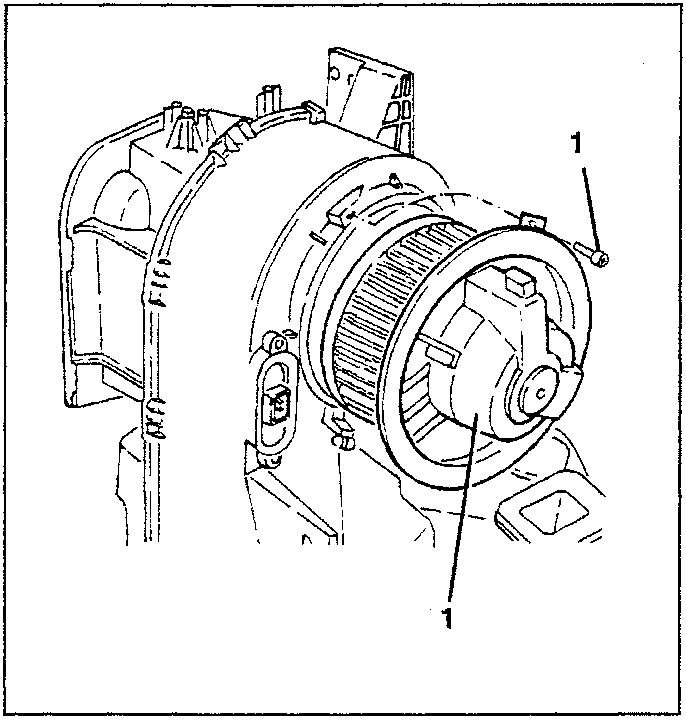

  1. Slacken the screw fastening the electric fan, turn it, then remove it.
Electric fan with screw and rubber teeth

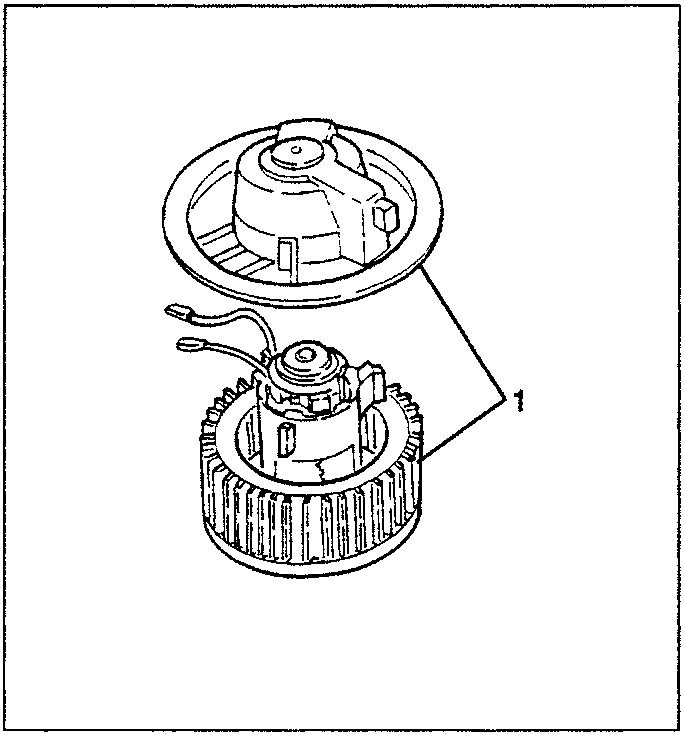

  1. Separate the electric fan from the cover, releasing the three rubber fastening teeth and withdrawing the two electric cables.
Disassembled electric fan with cables

Electric fan resistance

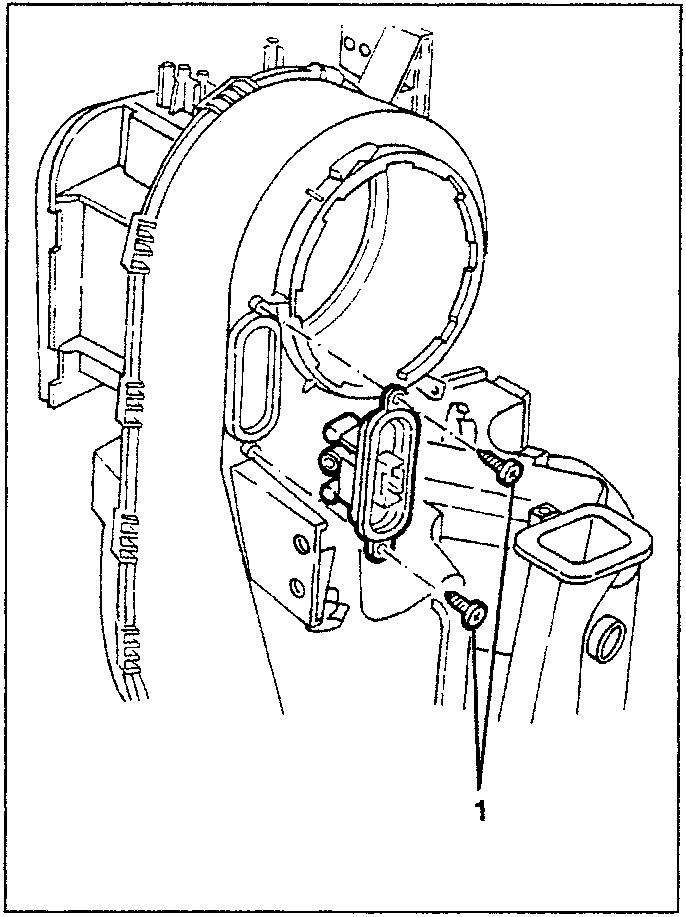

  1. Slacken the two fastening screws and remove the electric fan resistance.
Electric fan resistance with screws

Outside air port

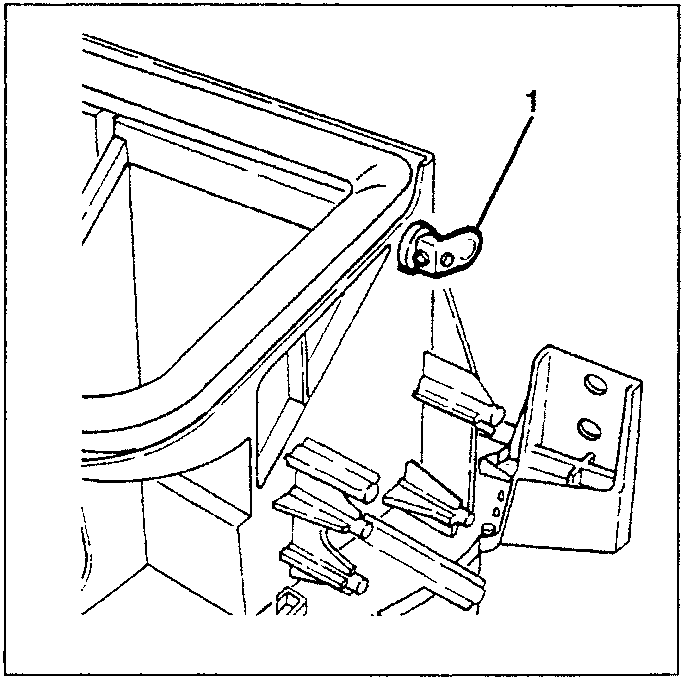

  1. Slacken the fastening screw and remove the hook connecting the outside air/recirculation port control rod.
Outside air port with hook and screw
