Ducting/distributor unit

DUCTING/DISTRIBUTOR UNIT

DISASSEMBLY

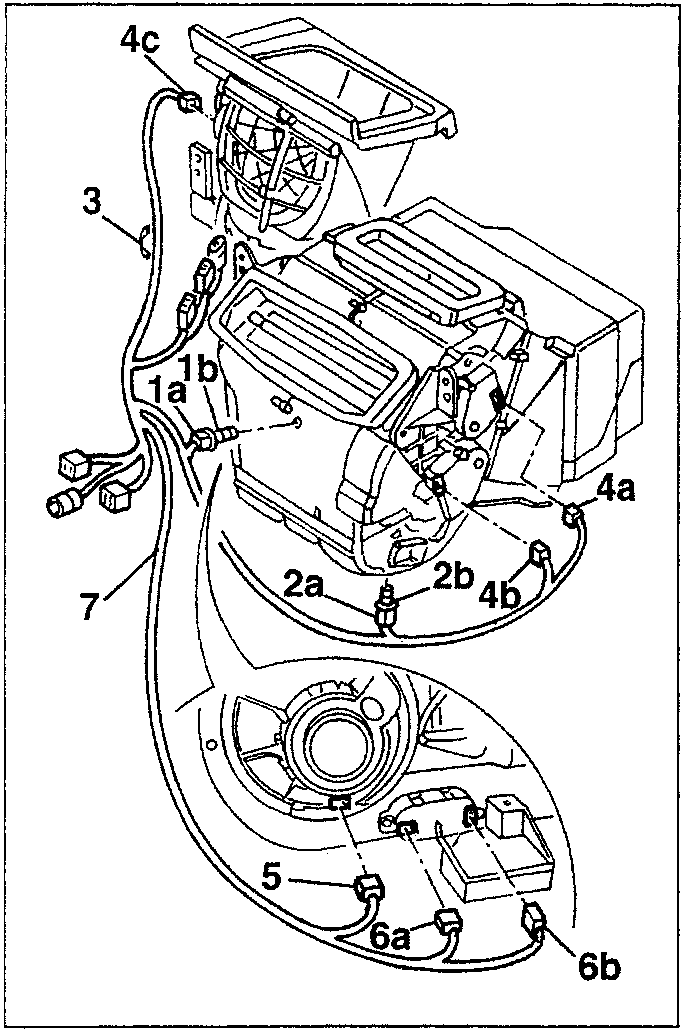

1. Disconnect the electrical connection (1a) from the upper mixed air sensor, turn the sensor (1b) anti-clockwise and remove it.
2. Disconnect the electrical connection (2a) from the lower mixed air sensor, turn the sensor (2b) anti-clockwise and remove it.
3. Remove the fastening clips.
4. Disconnect the three motor electrical connections (4a, 4b, 4c).
5. Disconnect the fan electrical connection.
6. Disconnect the electronic variator electrical connections (6a, 6b).
7. Remove the complete wiring harness.

1. 1a
2. 1b
3. 3
4. 4a
5. 4c
6. 5
7. 6a
8. 6b
9. 7
10. 2a
11. 2b
12. 4b

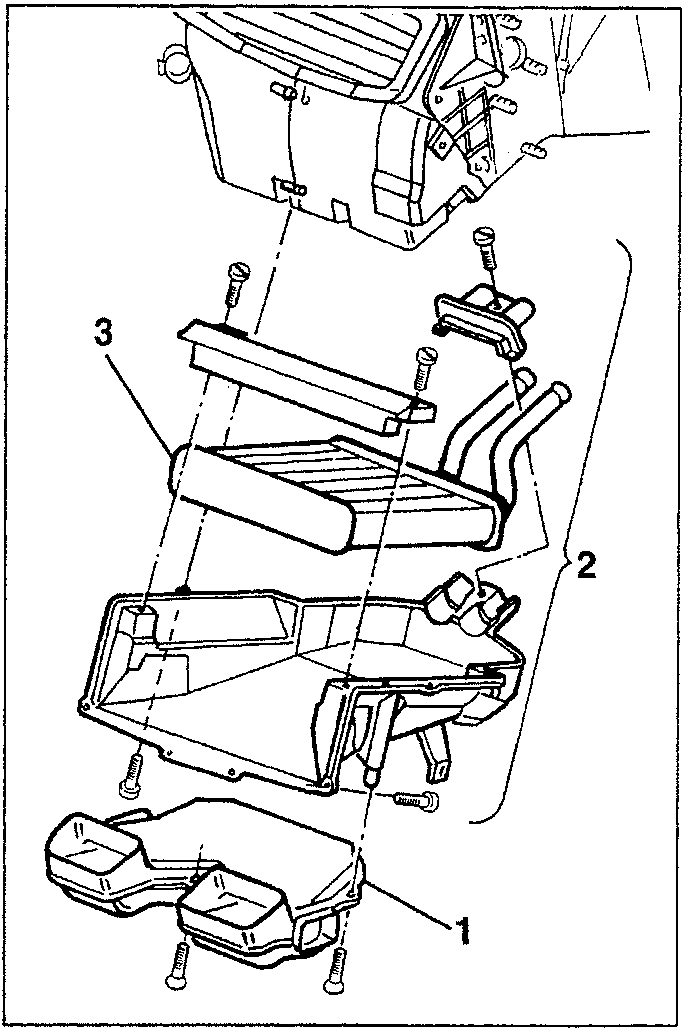

13. Remove the manifold cover.
14. Remove the heater radiator and bracket.
15. Disassemble the radiator from the bracket.

1. Remove the retainer screw.
2. Turn the fan assembly anti-clockwise and remove it.
3. Press the damper pads and separate the fan motor from the bracket.
4. Remove the electronic variator.
