Disassembly
- Make
- Alfa Romeo
- Model
- GTV / Spider GTV and Spider (916) Factory Service Manual
- Year
- 1995–2000
- Section
- Climate control › Disassembly
Right-hand drive variantsDisassembly

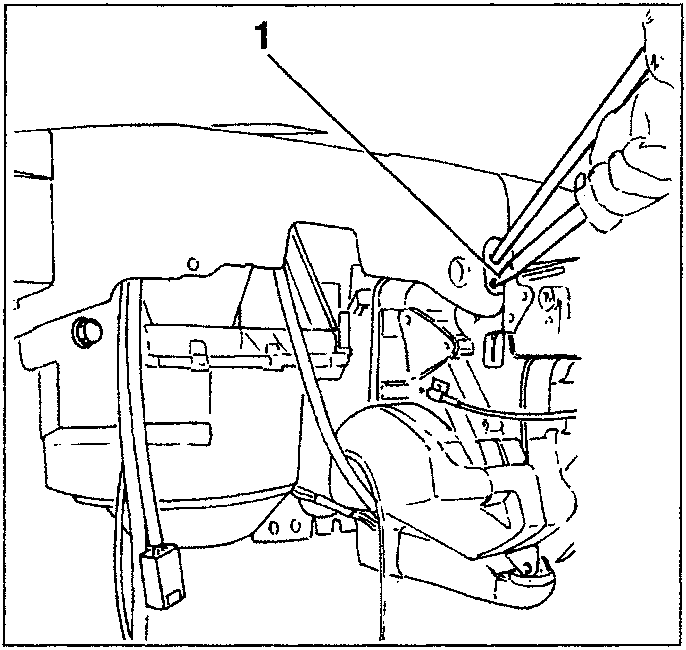

- Using two special centering pins, positioned as illustrated, centre the position of the unit before fastening it.
DISASSEMBLY
NOTE: The following description is of disassembly of the unit to replace single components. However, some of them may be replaced without removing the unit, as shown in the following paragraphs.
Air duct

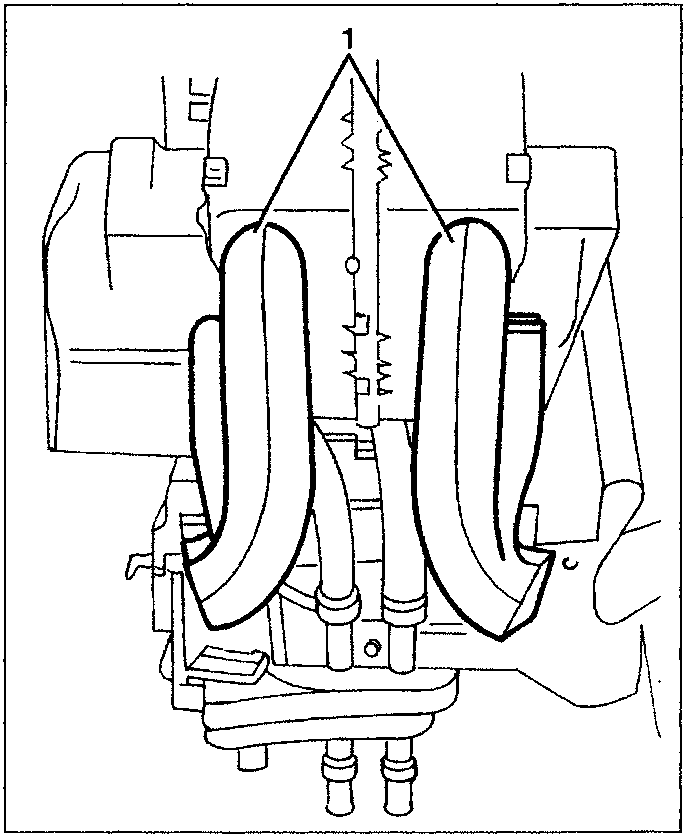

- Remove the two lower air ducts.
Wiring

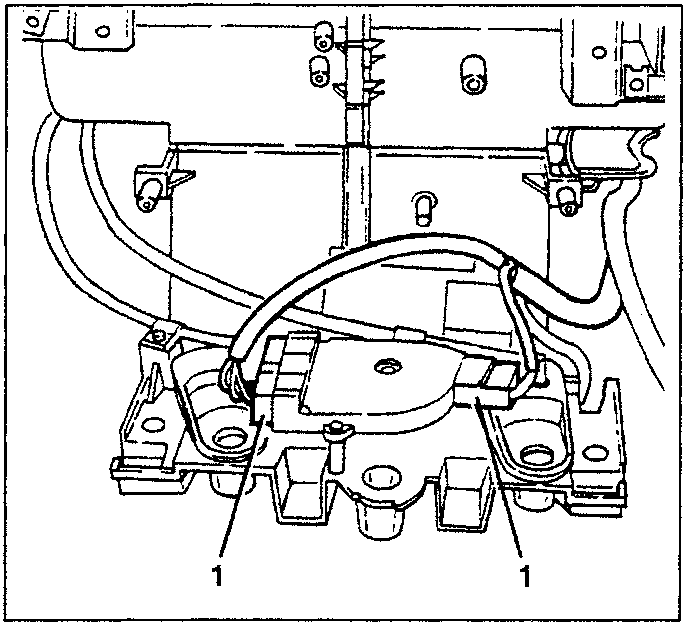

- Disconnect the two electrical connections from the climate controls.

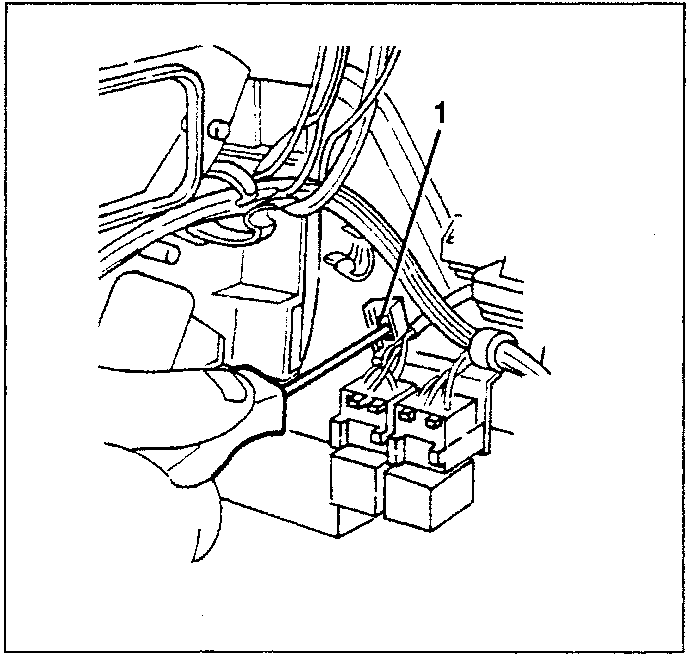

- Slacken the screw fastening the relay support bracket.
