Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)21 · Right-hand drive variants
21 · General

Heater radiator

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Climate control › Heater radiator
Right-hand drive variantsHeater radiator
  1. Remove the evaporator removing the pipes from the seals.

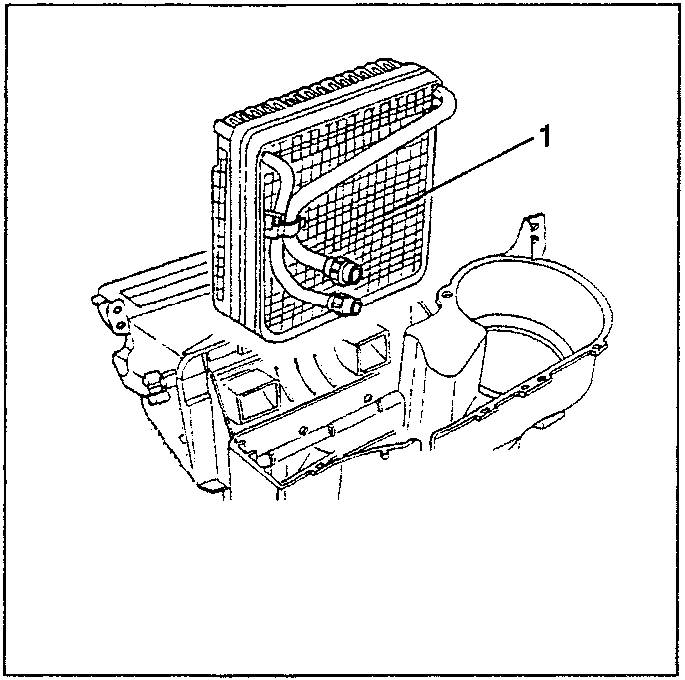

Heater radiator with evaporator and pipes

Heater radiator

  1. Slacken the fastening screws and remove the heater lower half box releasing it from the fastening clips.

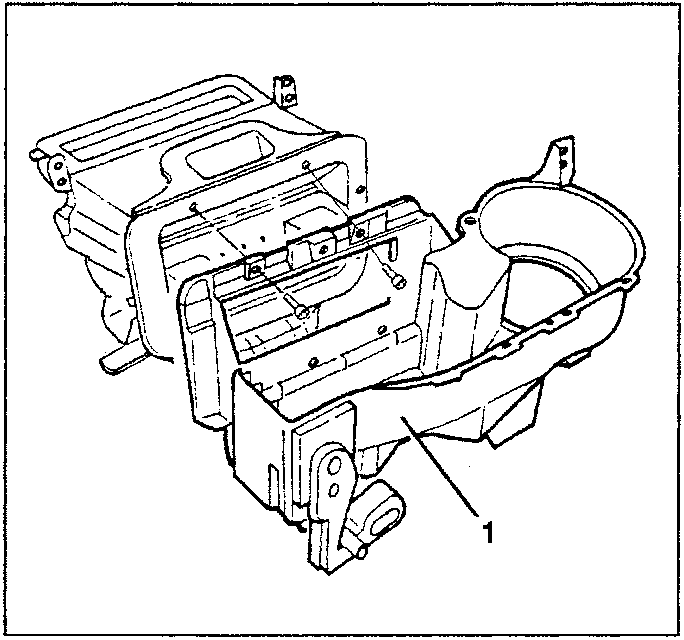

Heater radiator with lower half box removed
  1. Slacken the two fastening screws and remove the radiator water pipes guard.

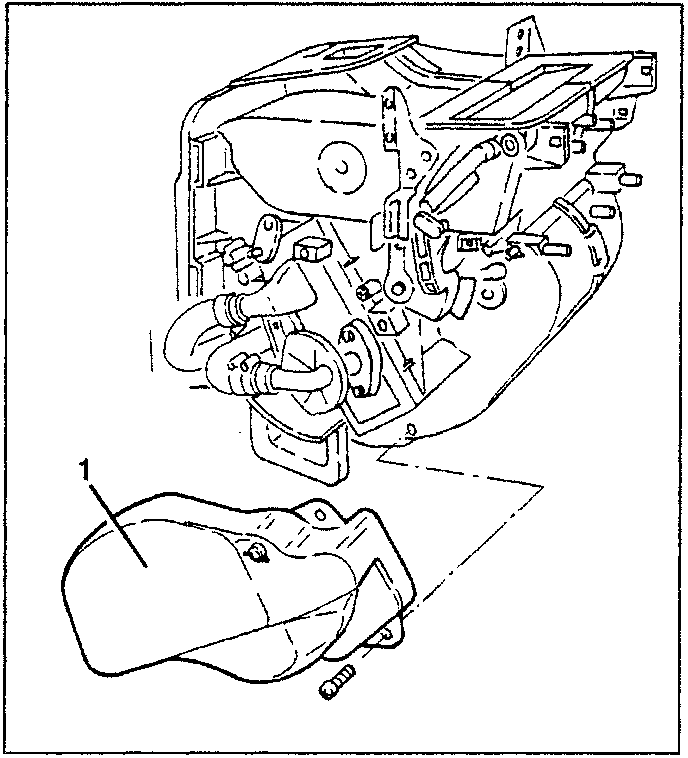

Radiator water pipes guard being removed
  1. Open the clamp and disconnect the water inlet pipe from the tap.
  2. Open the clamp and disconnect the water outlet pipe.

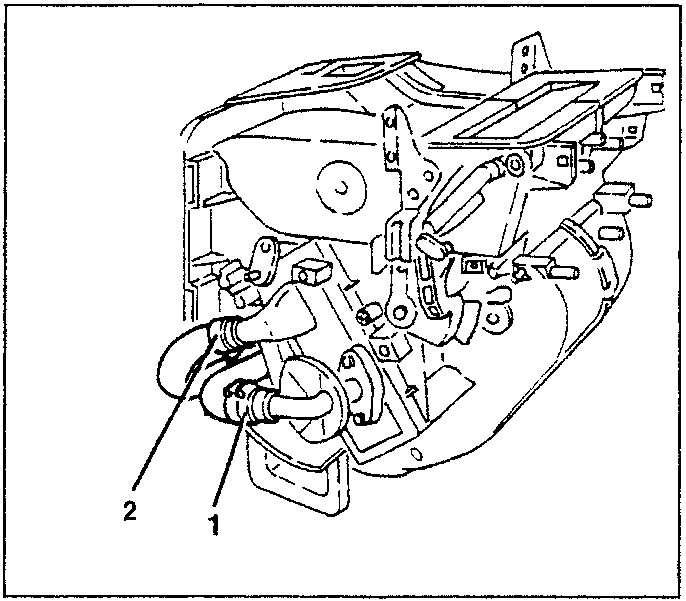

Water inlet and outlet pipes disconnected

When reassembling use screw clamps.
