Refitting

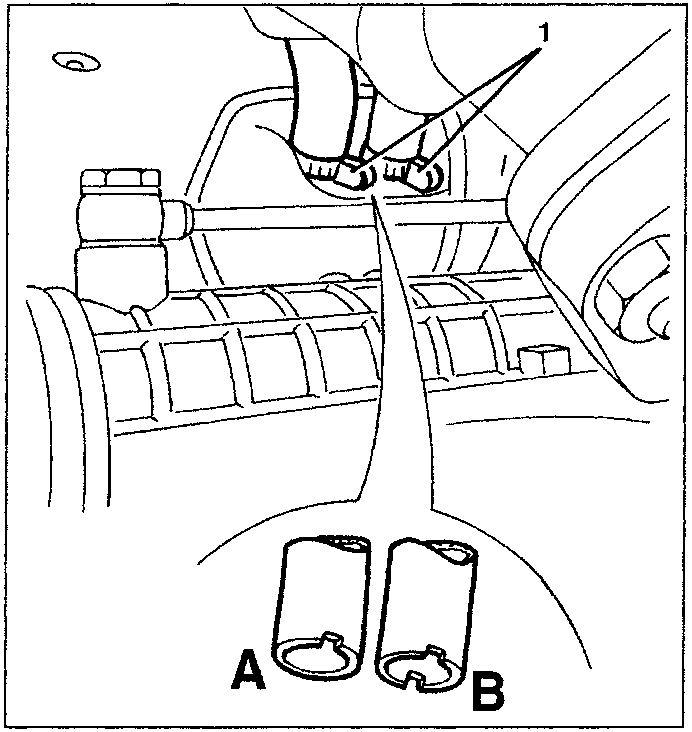

1. Open the clamps and disconnect the two engine coolant fluid delivery and return pipes in the heater: N.B. recover the fluid.

NOTE: The two pipes are marked by one notch (A) and two notches (B) to prevent them from being inverted.

When refitting use screw clamps.

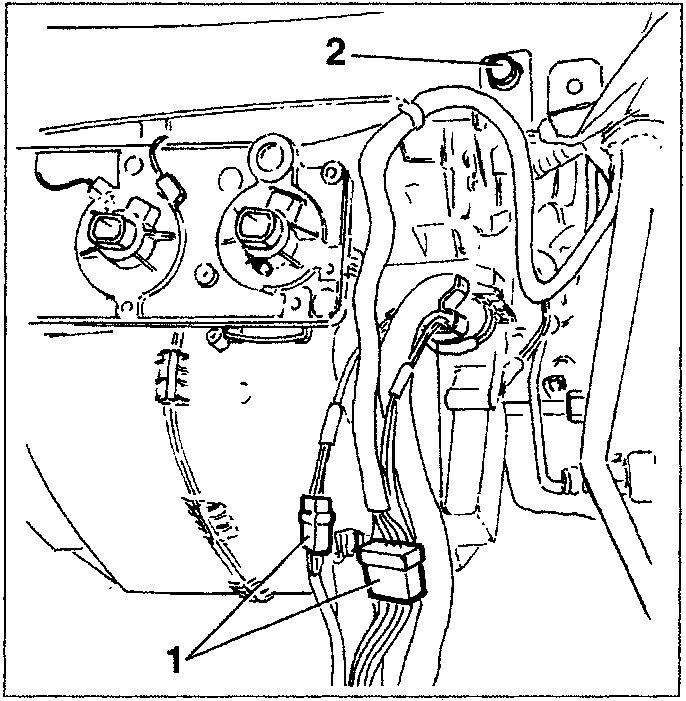

1. Working in the passenger compartment, disconnect the two electrical connections of the climate unit (connections between dashboard and dashboard cable loom).
2. Slacken the screw fastening the right hand side climate unit.

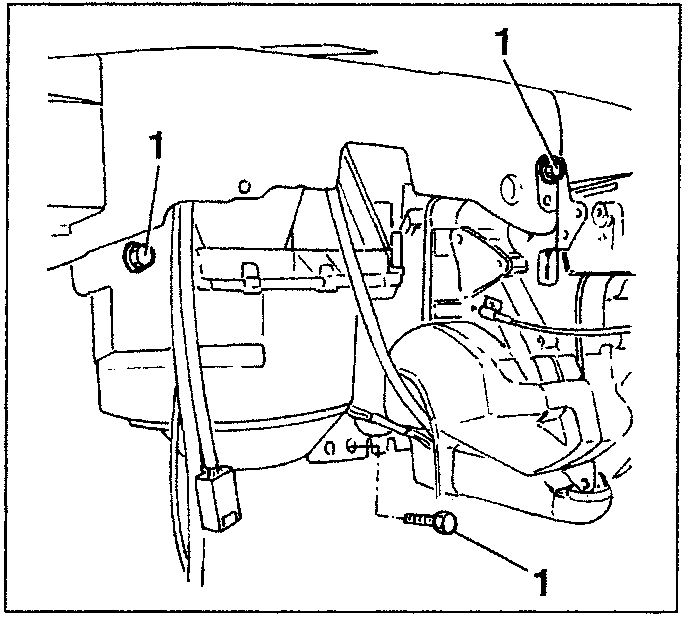

1. Slacken the screws fastening the left-hand side climate control unit.

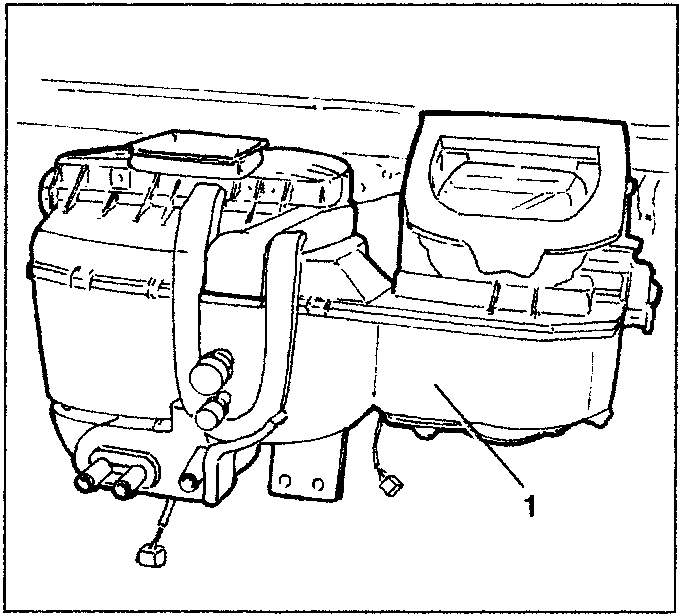

1. Remove the climate unit.

REFITTING

Refit the climate control unit reversing the sequence followed for removal and following the instructions given below:

• Coat the end of the heater, water drain and freon pipes with vaseline.
• Assemble the unit taking care to insert the above-mentioned pipes correctly in the passage holes.
