Electric fan resistance

ELECTRIC FAN RESISTANCE

Removal-Refitting

• Disconnect the battery

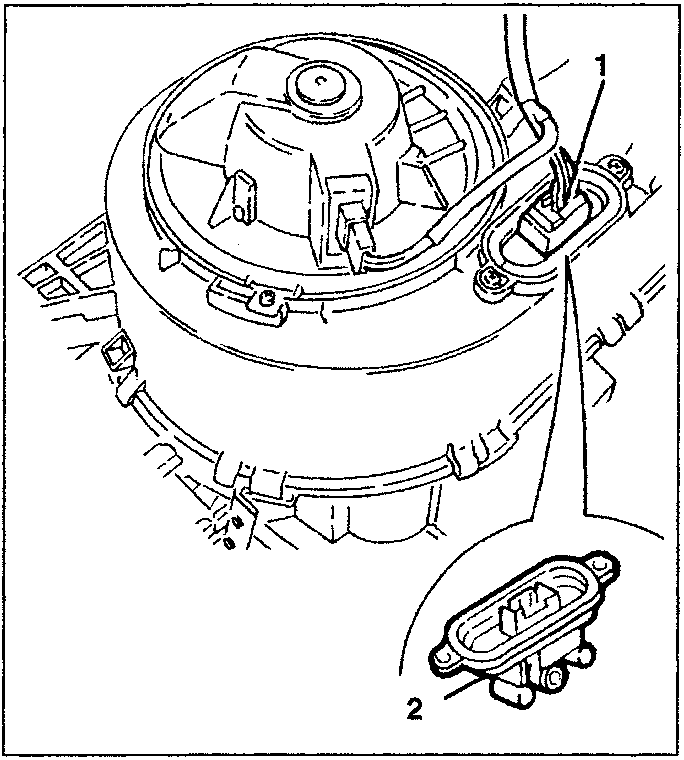

1. Disconnect the electrical connection from the electric fan resistance.
2. Slacken the two fastening screws and remove the resistances.

ELECTRIC FAN

Removal-Refitting

• Disconnect the battery

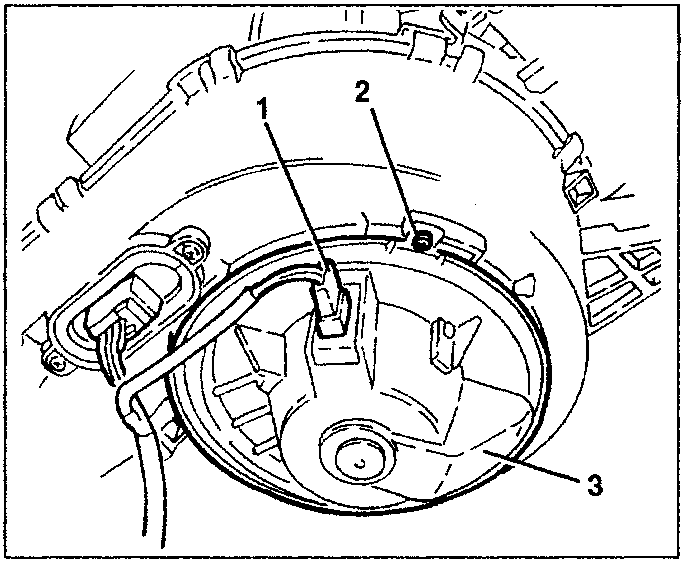

1. Disconnect the electrical connection from the electric fan.
2. Remove the safety screw and raise the tab.
3. Turn the electric fan and remove it.

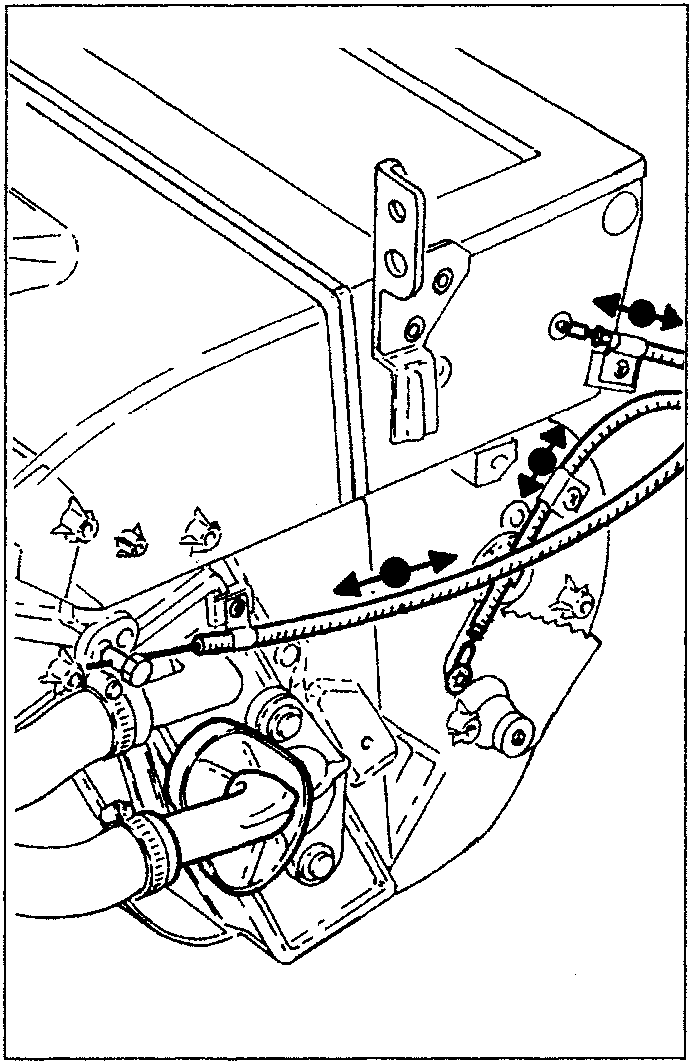

HEATER RADIATOR TAP

Removal-Refitting

• Remove the centre console (see GROUP 70, base manual).
• Without removing the steering wheel, half boxes, steering column control lever, etc., free the dashboard fasteners to move it aside, especially on the left-hand side (for further details see GROUP 70, base manual), thereby gaining access to the tap side guard.

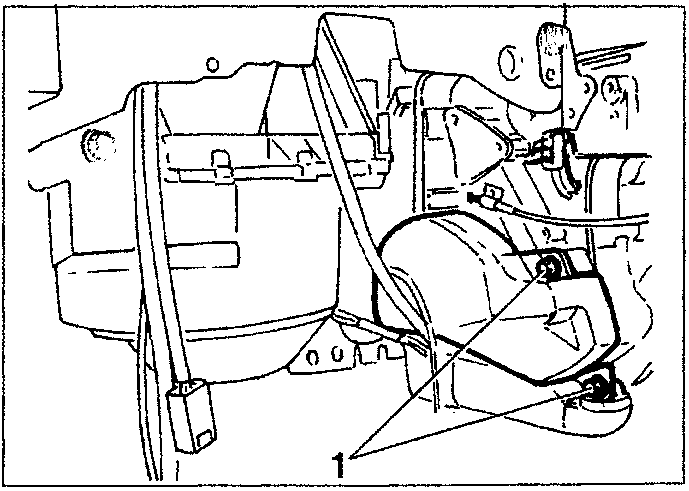

1. Remove the side guard, slackening the two fastening screws.
