Mixing port
- Make
- Alfa Romeo
- Model
- GTV / Spider GTV and Spider (916) Factory Service Manual
- Year
- 1995–2000
- Section
- Climate control › Mixing port
Right-hand drive variantsMixing port

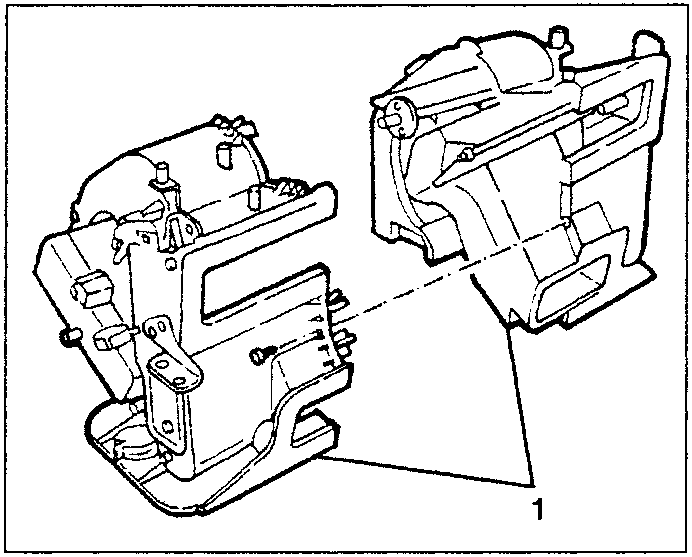

- Slacken the fastening screws and disassemble the two half boxes releasing the fastening clips.

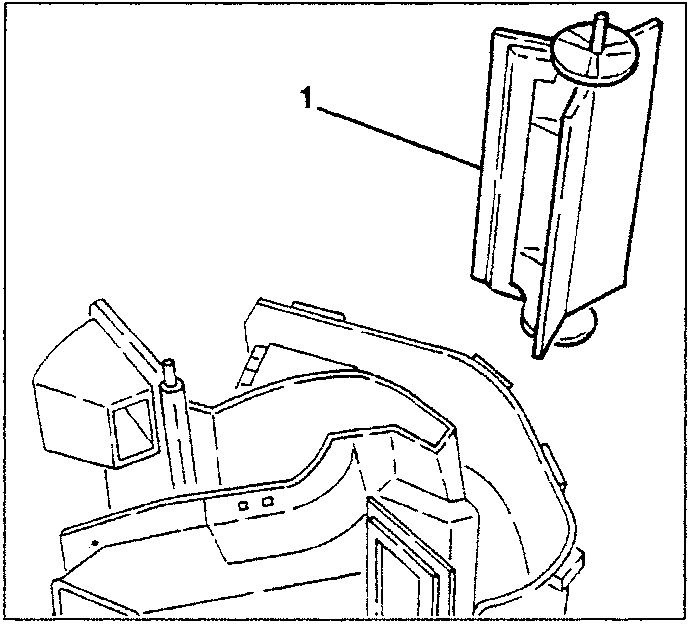

- Withdraw and remove the lower distribution port.
Upper distribution port

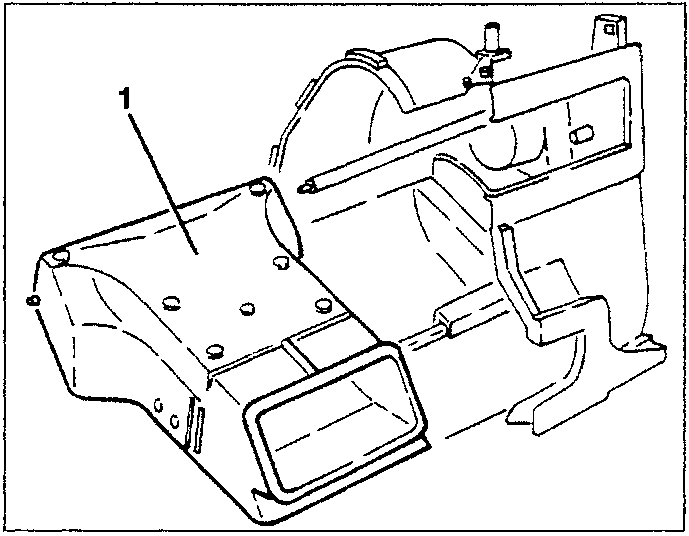

- Withdraw and remove the air duct.

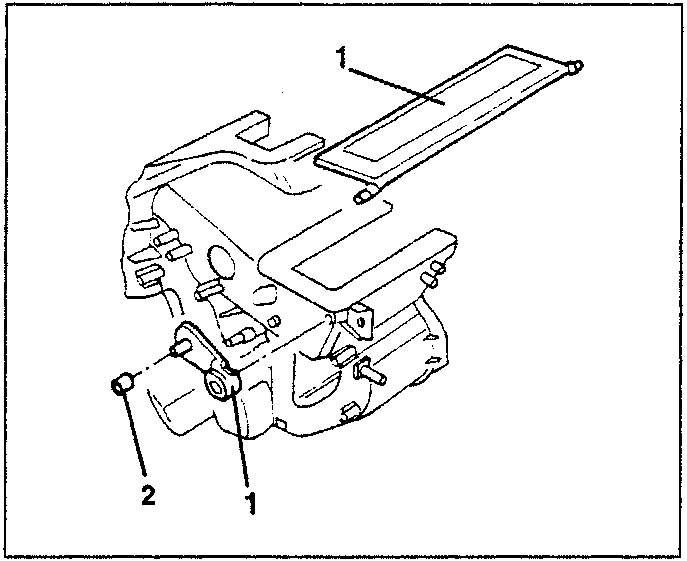

- Remove the fastening linkage and retrieve the upper distribution port.
- Retrieve the spacer.
Mixing port

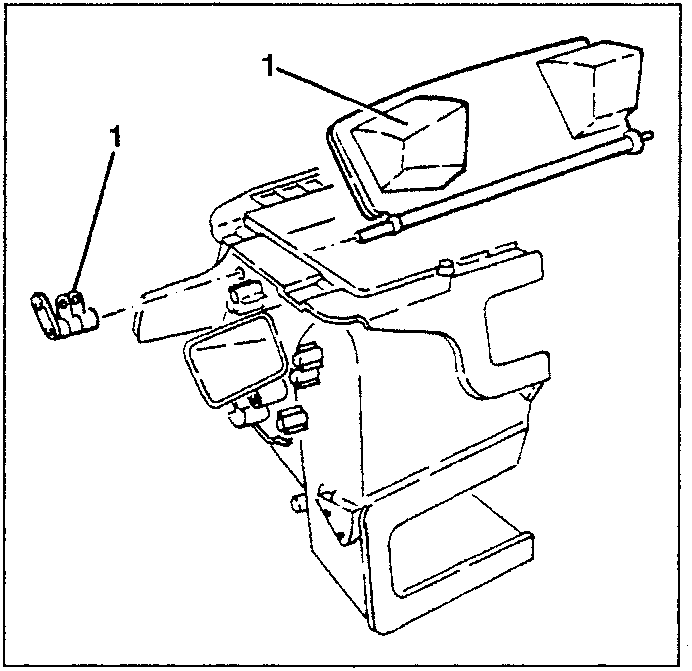

- Remove the fastening linkage and retrieve the air mixing port.
