Recirculation control motor
- Make
- Alfa Romeo
- Model
- GTV / Spider GTV and Spider (916) Factory Service Manual
- Year
- 1995–2000
- Section
- Climate control › Recirculation control motor
Right-hand drive variantsRecirculation control motor

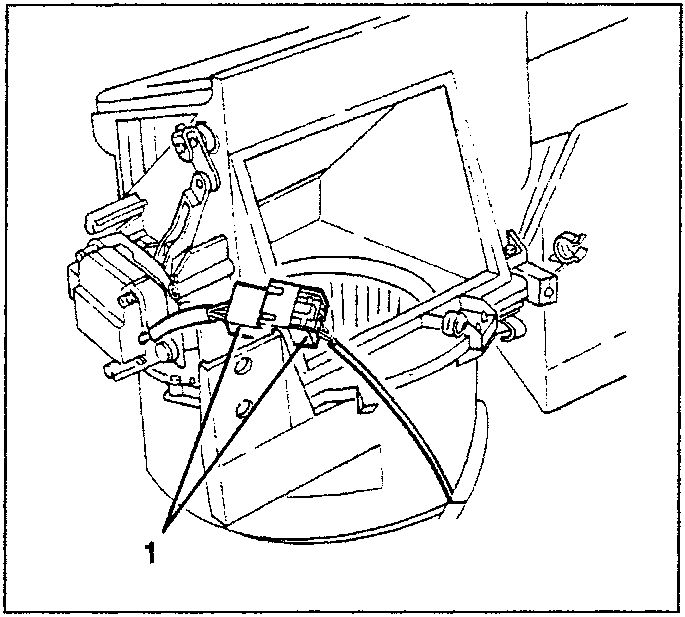

- Disconnect the electrical connection of the recirculation control motor.

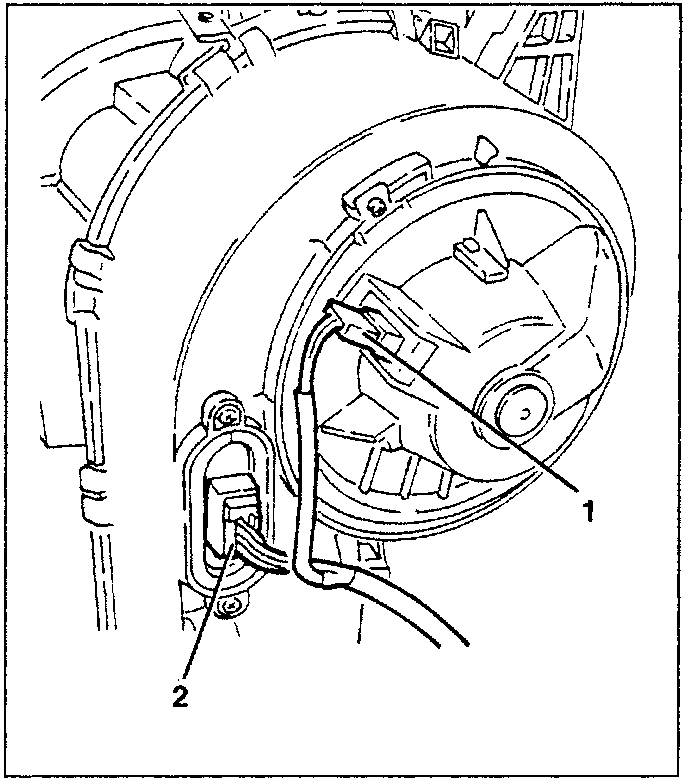

- Disconnect the electrical connection from the fan.
2. Disconnect the electrical connection from the electric fan resistance, then remove the cable freeing it from the clamps.
Recirculation control motor

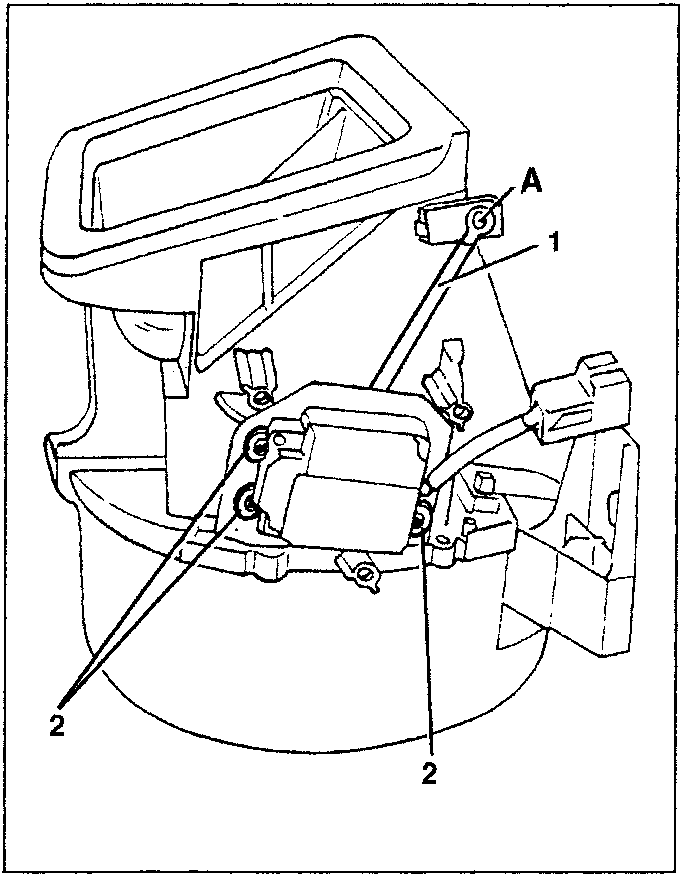

- Release the rod from the catch A.
2. Slacken the three screws fastening the recirculation control motor.

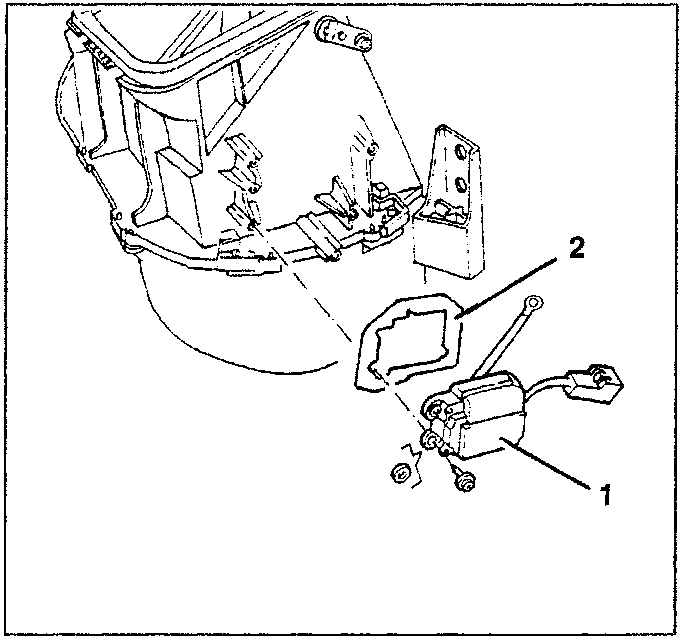

- Remove the recirculation control motor complete with grommets on the fastening holes.
2. Retrieve the rear plate.
