Climate control › Recirculation port control motor
Right-hand drive variantsRecirculation port control motor · page 1 of 2

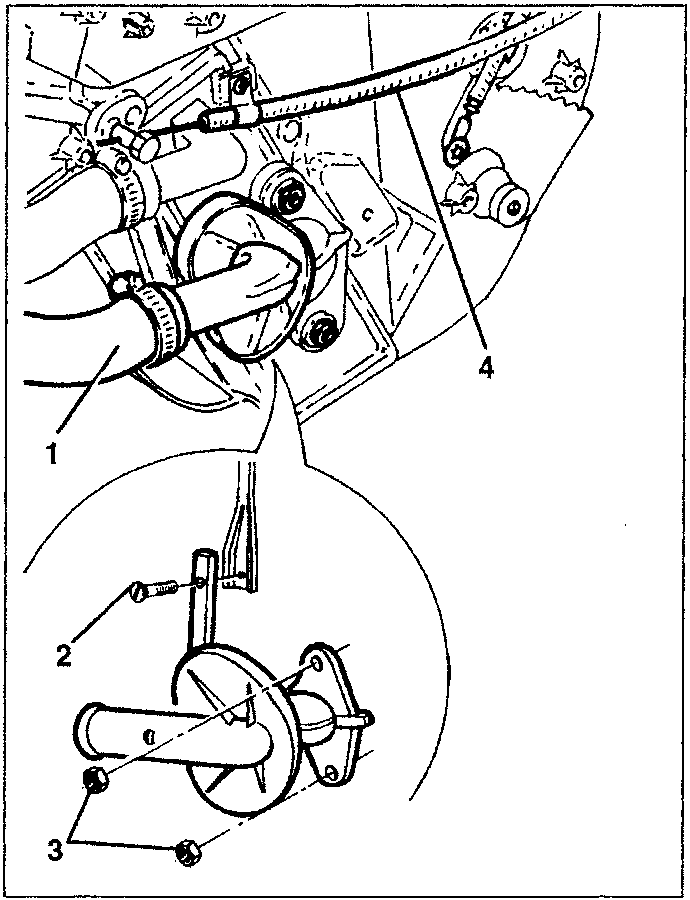

  1. Disconnect the water inlet piping from the tap and retrieve it.
  2. Slacken the screw fastening the tierod.
  3. Slacken the two tap fastening nuts, then remove it.
  4. Disconnect the bowden cable.

NOTE: to remove the radiator too, it is necessary to work with the ducting/distributor unit on the bench, following the instructions given previously.

Diagram showing components 1, 2, 3, and 4 of a recirculation port control motor setup.

RECIRCULATION PORT CONTROL MOTOR

Removal-Refitting

  • Disconnect the battery.
  • Remove the dashboard (see GROUP 70, base manual).

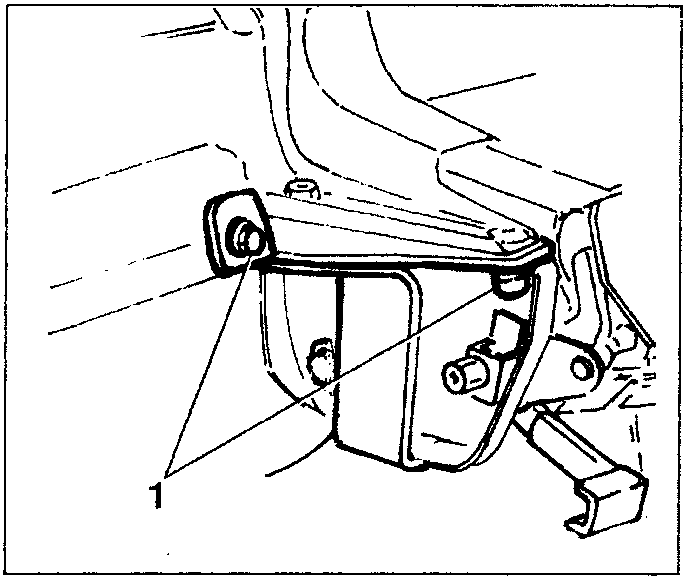

  1. Remove the connection bracket of the heater unit on the right-hand side.
Diagram showing a mechanical linkage with part 1 and a lever mechanism.
  • Remove the injection control unit (N.B. without disconnecting from the wiring loom) (see GROUP 55 of Base Manual).
  • Slacken the four screws fastening the ducting/distributor unit: move the unit backwards to gain access to the motor.

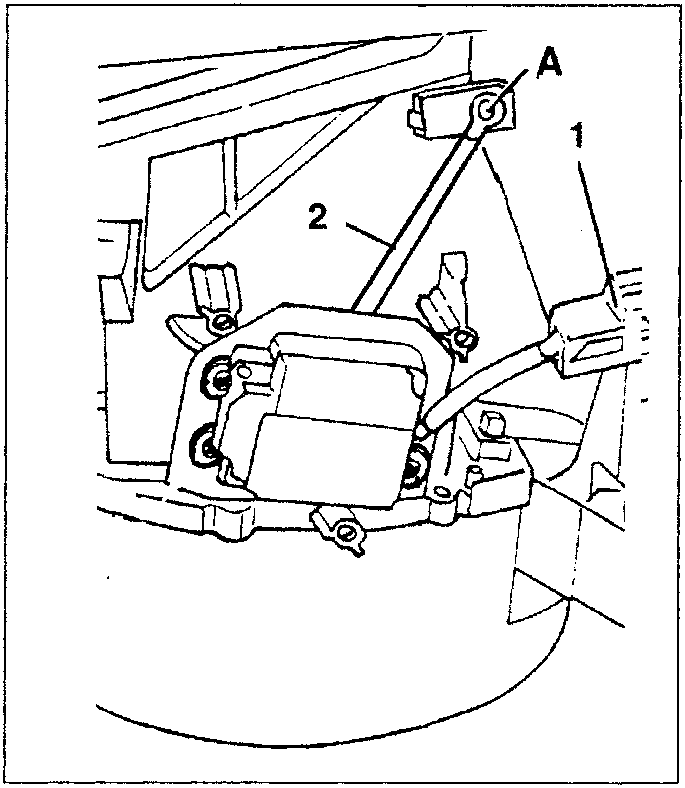

Diagram showing a motor unit with parts labeled A, 1, and 2, including a rod connected to catch A.
  1. Disconnect the electrical connection of the motor.
  2. Release the rod from the catch A.
