Alfa Romeo GTV and Spider (916) Factory Service Manual (1995-2000)21 · Right-hand drive variants
21 · General

Lower distribution port

Make
Alfa Romeo
Model
GTV / Spider GTV and Spider (916) Factory Service Manual
Year
1995–2000
Section
Climate control › Lower distribution port
Right-hand drive variantsLower distribution port

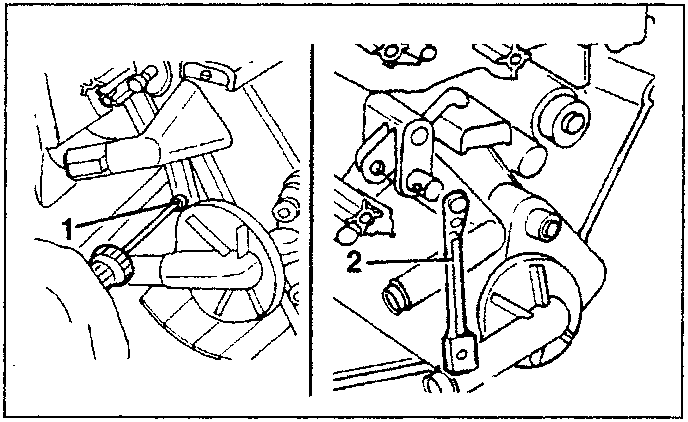

  1. Slacken the fastening screw of the radiator water inlet tap control rod.
  2. Disconnect and remove the rod.
Diagram showing two views of a control rod being disconnected from a gear assembly, with numbered parts 1 and 2 indicating the rod and its attachment point respectively.

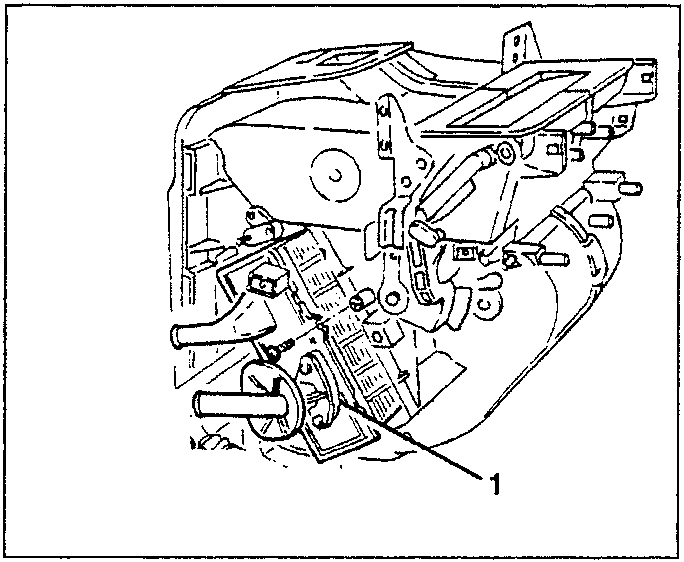

  1. Slacken the two fastening screws and remove the radiator.
Diagram showing the removal of a radiator from an engine bay, with part 1 indicating the radiator itself.

Lower distribution port

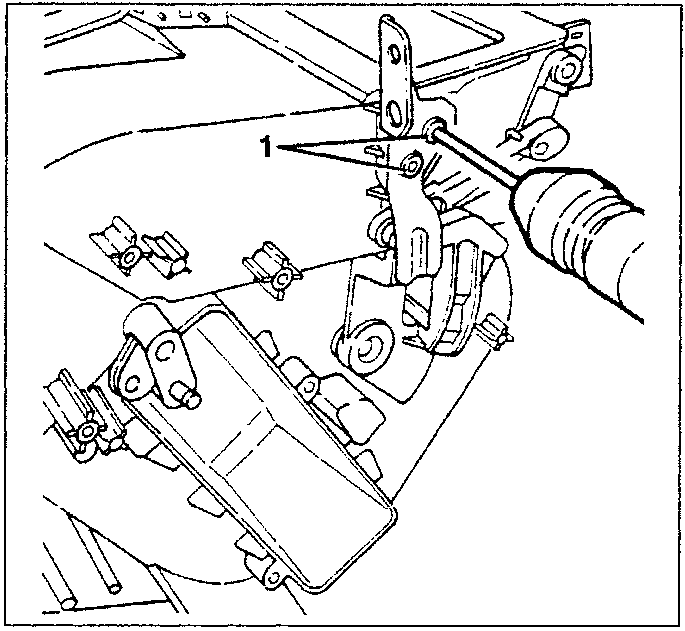

  1. Using a drill remove the two rivets fastening the unit support bracket.
Diagram showing a drill removing a rivet from a metal bracket attached to an engine component, with part 1 indicating the rivet being removed.

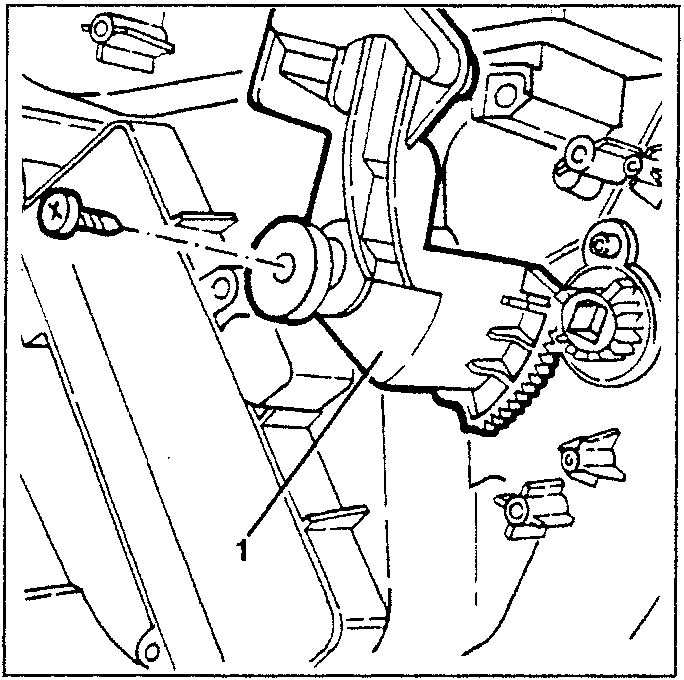

  1. Slacken the fastening screw and remove the air distribution lower port control linkage
Diagram showing the removal of an air distribution lower port control linkage from an engine bay, with part 1 indicating the linkage being removed.

When reassembling the linkage, make the two notches stamped on the gears coincide.

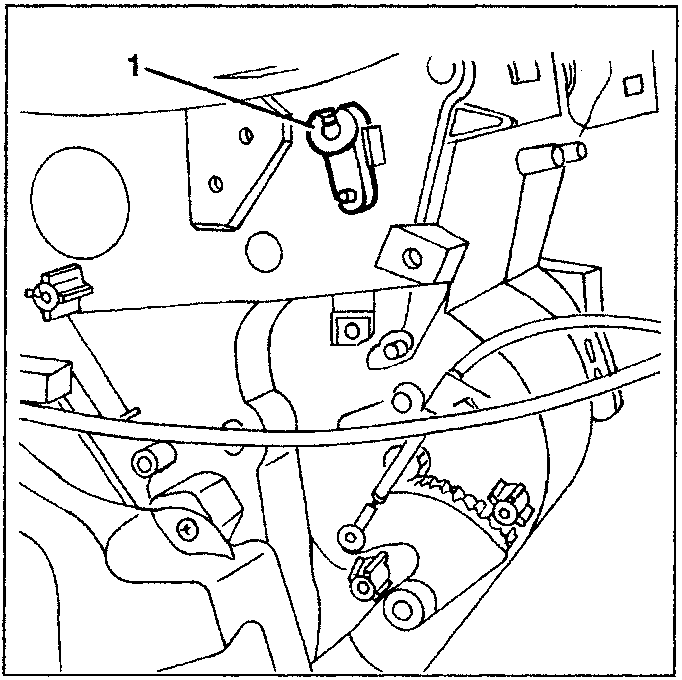

  1. Release and remove the air distribution upper port control linkage.
Diagram showing the removal of an air distribution upper port control linkage from an engine bay, with part 1 indicating the linkage being removed.
