SYSTEM COMPONENT LOCATION

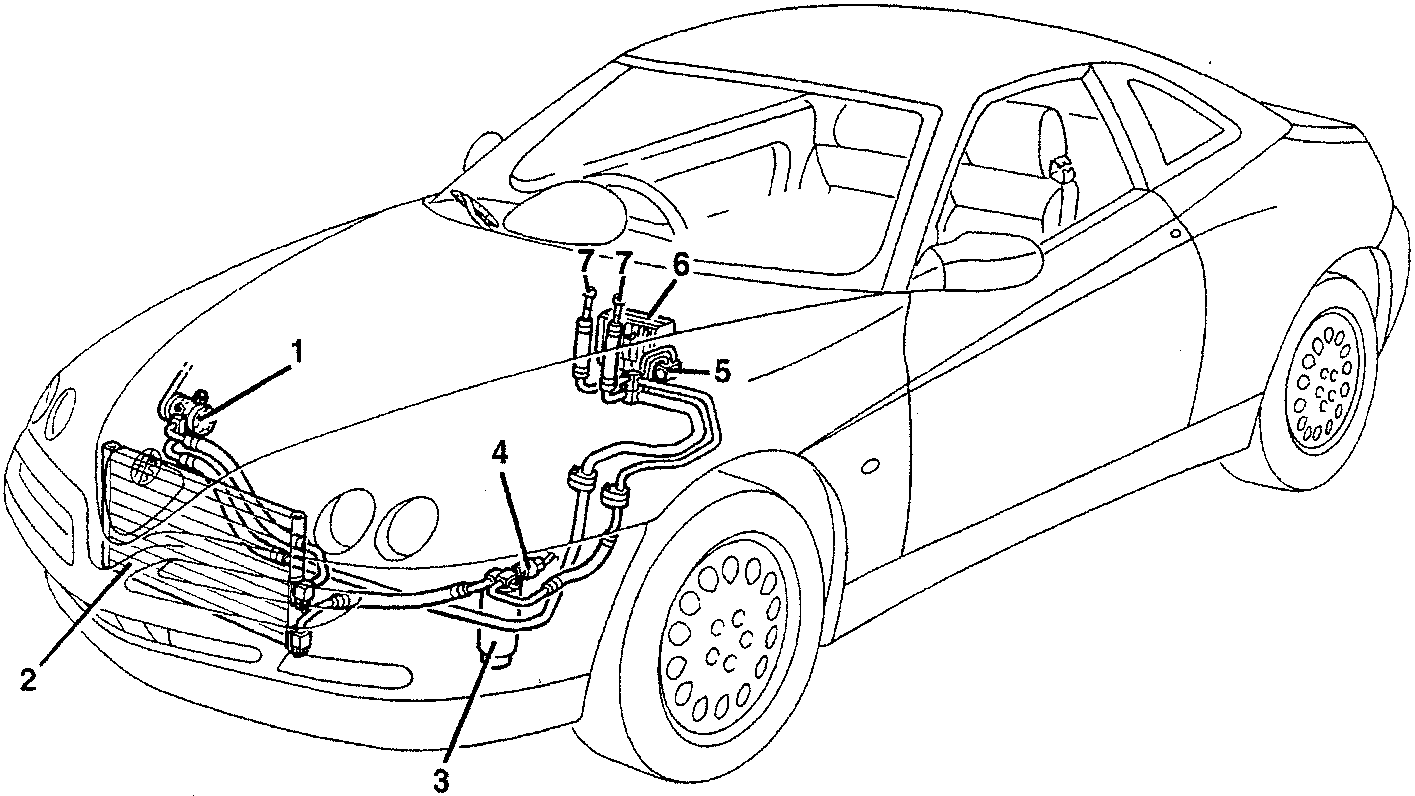

Line drawing of a car showing climate control system components labeled 1 to 7.
  1. Conditioner compressor
  2. Conditioner compressor
  3. Drier filter
  4. Four level pressure switch
  5. Expansion valve
  6. Evaporator assembly
  7. System recharge valve fittings

OPERATING PROCEDURES

GENERAL PRECAUTIONS FOR WORK ON THE CLIMATE CONTROL UNIT

  • Before carrying out any maintenance and repair work it is advisable to disconnect the battery negative terminal.
  • Before dismantling the system it must be drained recovering the coolant fluid.
  • During the operations, when the system components are disconnected, suitable plug the disconnected fittings to prevent moisture and purities from getting into the system.
  • When re-installing the pipe fittings change the O-rings on them.
  • Lubricate the pipe fitting threads with the specified antifreeze oil and tighten the fittings to the specified torque.
