Right-hand drive variantsAutomatic temperature climate control · page 2 of 2

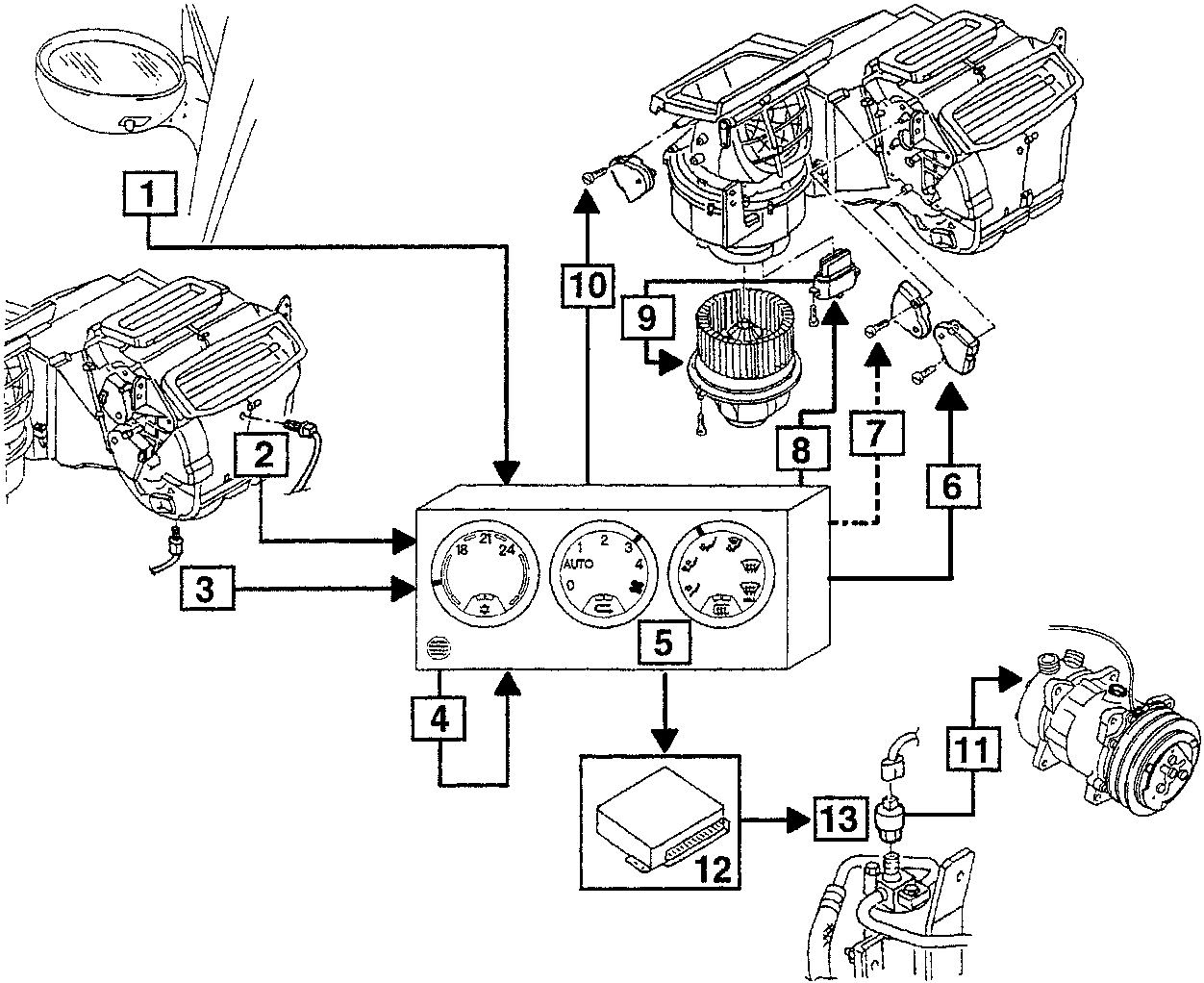

The various components interacting with the ECU are illustrated in the figure:
- External air temperature sensor
- Upper mixed air temperature sensor
- Lower mixed air temperature sensor
- Passenger compartment air temperature sensor
- ECU
- Mixing actuator
- Distribution actuator
- Electronic fan motor speed variator
- Fan motor
- Re-circulation flap actuator
- Air-conditioner compressor
- E.I. ECU
- Four-level pressure switch
- Top opening switch
