Ducting/distributor unit (page 2 of 2)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Climate control

Right-hand drive variantsDucting/distributor unit · page 2 of 2

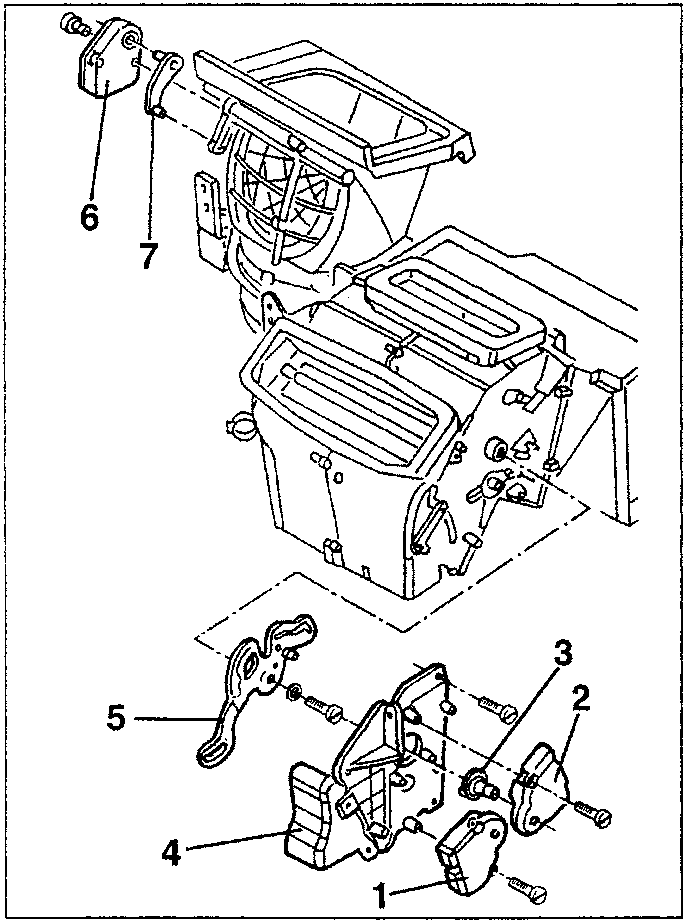

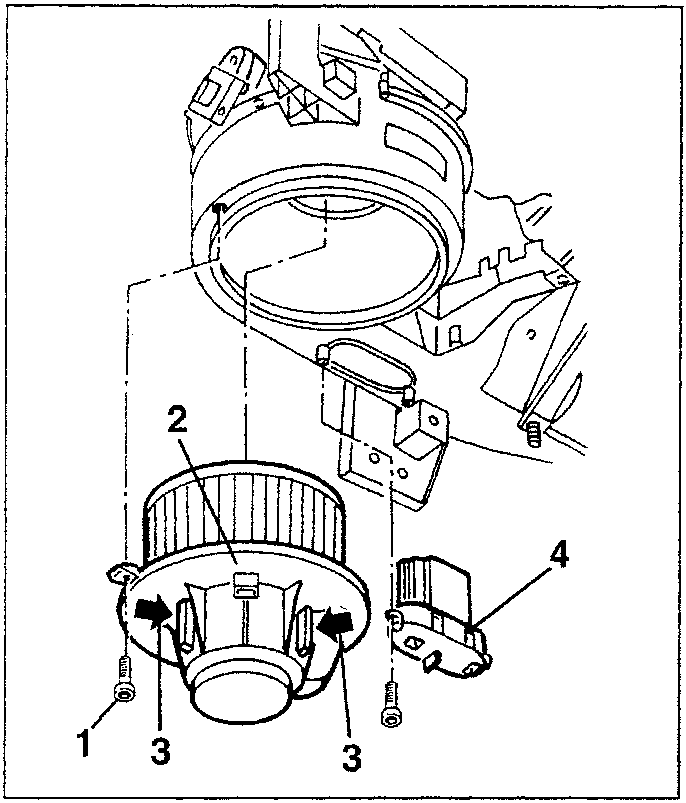

1. Remove the air mixing motor.
2. Remove the air distribution motor.
3. Take the motor shaft.
4. Remove the control linkage cover.
5. Remove the linkage assembly .
6. Remove the air intake motor.
7. Take the control lever.

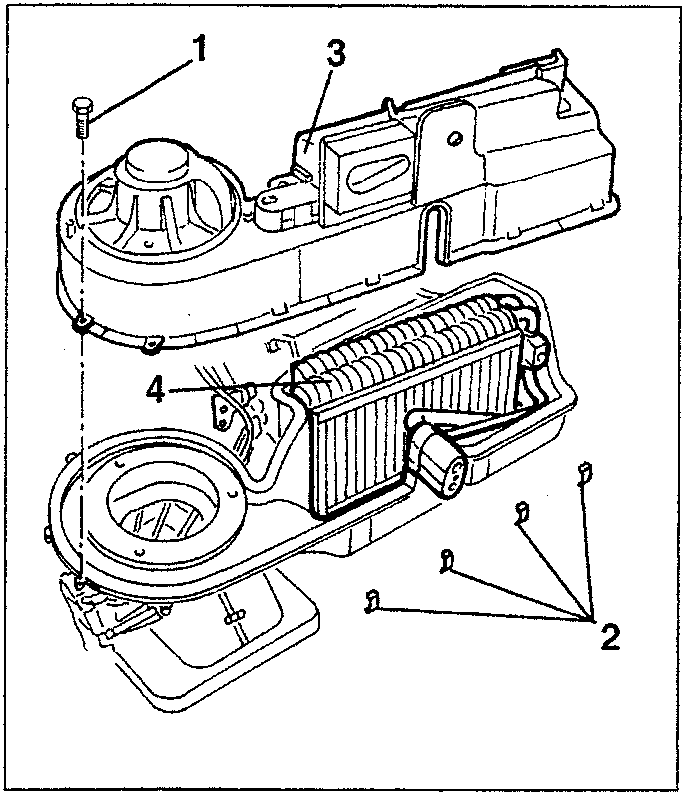

1. Remove the fastening screws of lower half unit.
2. Use tool 1.823.014.000 to remove the half unit fastening pegs.
3. Remove the lower half unit.
4. Remove the evaporator.

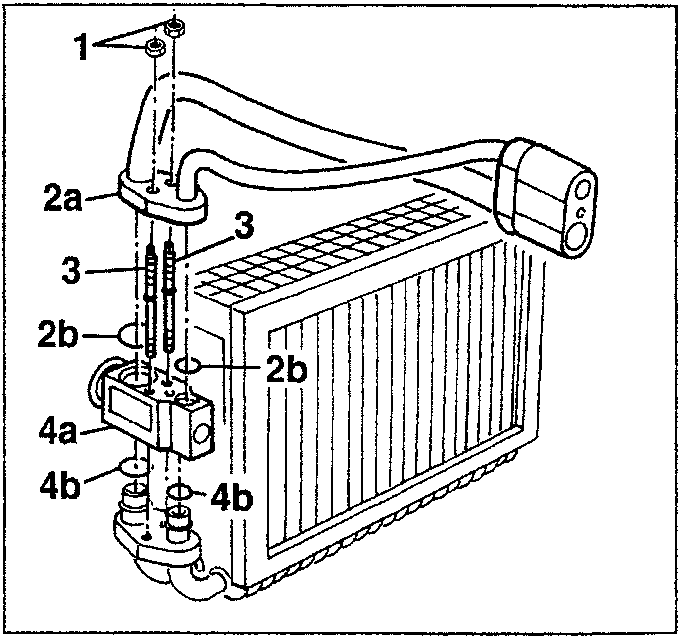

1. Unscrews pipe fixing nuts.
2. Remove pipe with gaskets.
3. Unscrews studs.
4. Remove the expansion valve with gaskets.

21 General
