MASTER CYLINDER (PUMP) - R + R

Operation 3330C10 · BRAKE PUMP, RESERVOIR AND LOAD PROPORTIONING VALVE

1.2 8v, 1.3 Multijet, 1.4 16v

Removing

- Position the vehicle on a lift.

- Disconnect the negative battery terminal.

Op. 5530B10 BATTERY - R+R

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

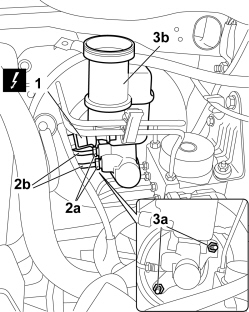

1. Disconnect the electrical connection from the brake fluid level sensor (switch).

2. Undo the connectors (2a) and disconnect the hydraulic braking system pipes (2b).

3. Undo the fixing nuts (3a) and remove the master cylinder (3b) complete with reservoir.

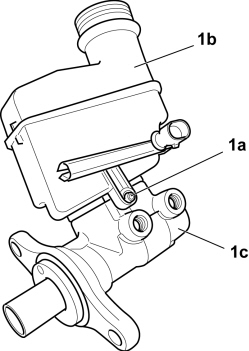

1. At the bench, release the fixing pin (1a) and separate the reservoir (1b) from the master cylinder (1c).

Refitting

- At the bench, proceed with assembling the master cylinder and the reservoir, securing it using the retaining pin.

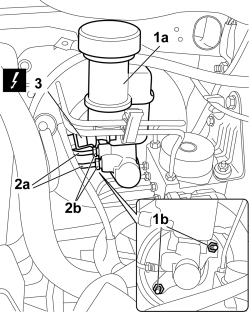

1. Position the master cylinder (1a) and tighten the fixing nuts (1b).

2. Connect the brake fluid system pipes (2a) and tighten the connectors (2b).

3. Disconnect the electrical connection from the brake fluid level sensor (switch).

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

Op. 5530B10 BATTERY - R+R

- Connect the negative battery terminal.

Op. 0010T65 HYDRAULIC BRAKE SYSTEM - BLEED AIR

Op. 0010T64 BRAKE AND/OR CLUTCH FLUID CHECK LEVEL AND TOP UP AS NECESSARY

- Remove the vehicle from the lift.
