IGNITION COIL/S - R+R
Removing
- Disconnect the negative battery terminal.
| Description | Connector | |
|---|---|---|
| Battery | See A001 BATTERY |
Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R
Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

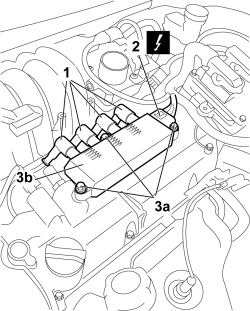

1. Disconnect the spark plug electrical connections, ignition reel/coil side.
2. Disconnect the electrical connection from the ignition reel/coil.
| Description | Connector | |
|---|---|---|
| 2 | Ignition coil | See A030 IGNITION COIL |
3. Undo retaining bolts (3a) and remove ignition reel/coil (3b).
Refitting

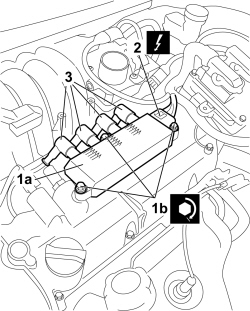

1. Position ignition reel/coil (1a) in its housing and tighten retaining bolts (1b) to the recommended torque.
| Component | Fastening | dia | Value (daNm) | Validity |
|---|---|---|---|---|
| Coils | Bolt | M6x1x25 | 0.9 | 1.2 8V |
2. Connect the spark plug electrical connections, ignition reel/coil side.
3. Disconnect the electrical connection from the ignition reel/coil.
| Description | Connector | |
|---|---|---|
| 3 | Ignition coil | See A030 IGNITION COIL |
Op. 1048A10 AIR FILTER ASSEMBLY - R.R.
Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R
- Connect the negative battery terminal.
| Description | Connector | |
|---|---|---|
| Battery | See A001 BATTERY |
