SPARK PLUGS - R+R

Operation 5510D10 · SPARK PLUGS AND LEADS

1.4 16v

Removing

- Disconnect the negative battery terminal.

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 5510C14 IGNITION COIL/S - R.R.

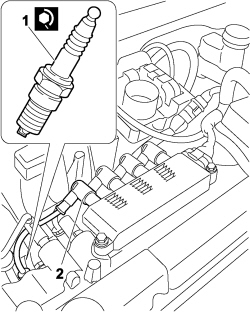

1. Undo and remove the spark plugs from their seats.

Refitting

- Place the spark plug in position and tighten it to the recommended torque.

Op. 5510C14 IGNITION COIL/S - R.R.

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

- Connect the negative battery terminal.

1.2 8v

Removing

- Disconnect the negative battery terminal.

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

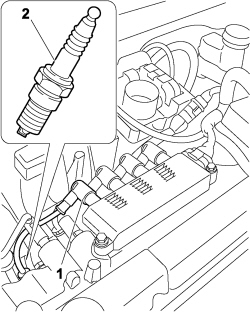

1. Disconnect the electrical connection from the relevant spark plug cable, spark plug side.

2. Undo and remove the spark plug from its seat.

Refitting

1. Position the spark plug in its housing and tighten to the recommended torque.

2. Connect the electrical connection from the relevant spark plug cable, spark plug side.

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

- Connect the negative battery terminal.
