ENGINE TIMING SENSOR - R+R

Operation 5510C30 · COIL, ECU, SENSORS

1.2 8v

Removing

Op. 5530B10 BATTERY - R+R

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

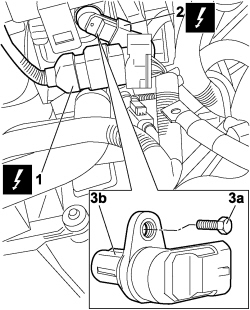

1. Disconnect the electrical connection for the engine/front coupling, freeing the associated wiring looms from the retaining clip.

2. Detach the timing sensor electrical connection.

3. Undo retaining bolt (3a) and remove the sensor from its housing (3b)

Refitting

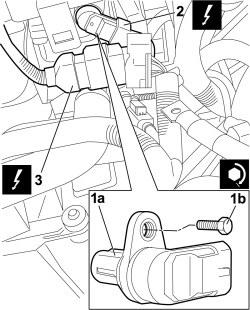

1. Position timing sensor (1a) in its housing and tighten retaining bolt (1b) to the recommended torque.

2. Connect the electrical connection for the timing sensor.

3. Connect the electrical connection for the engine/front coupling, attaching the associated wiring looms to the retaining clip.

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

Op. 5530B10 BATTERY - R+R

1.4 16v

Removing

- Disconnect the negative battery terminal.

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

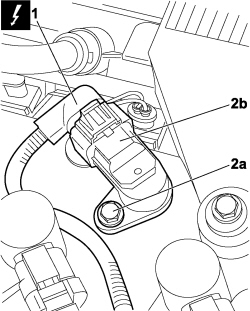

1. Detach the engine timing sensor electrical connection.

2. Undo retaining bolt (2a) and remove engine timing sensor (2b).

Refitting

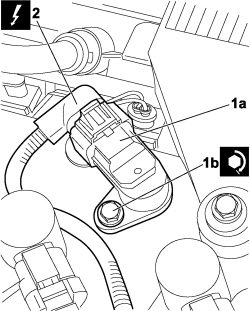

1. Position engine timing sensor (1a) in its housing and tighten retaining bolt (1b) to the recommended torque.

2. Connect the engine timing sensor electrical connection.

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

- Connect the negative battery terminal.
