ENGINE FLYWHEEL COVER - R.R.

Operation 1024B50 · FLYWHEEL

1.2 8v

Removing

- Position the vehicle on a lift.

Op. 1008C34 BRACKET ON GEARBOX FOR LOWER REACTION ROD - R.R.

Op. 2110A60 MANUAL GEARBOX/ENGINE COUPLING BRACKET - R+R

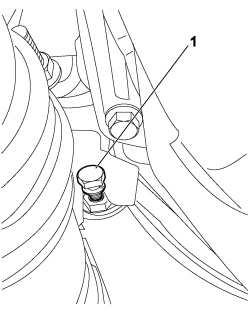

1. Undo the remaining flywheel cover retaining bolt.

- Remove the flywheel cover from its housing.

Refitting

- Position the flywheel cover in its seat and tighten the retaining bolts.

Op. 2110A60 MANUAL GEARBOX/ENGINE COUPLING BRACKET - R+R

Op. 1008C34 BRACKET ON GEARBOX FOR LOWER REACTION ROD - R.R.

- Remove the vehicle from the lift.

1.4 16v

Removing

- Position the vehicle on a lift.

Op. 0010T10 CHANGE ENGINE OIL

- Disconnect the negative battery terminal.

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

Op. 1048A32 HOSE FROM AIR FILTER TO INTAKE MANIFOLD - R + R

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 1072C44 EXHAUST MANIFOLD HEAT SHIELD - R+R

Op. 1072C16 EXHAUST MANIFOLD WITH CATALYTIC CONVERTER - R.R.

Op. 1020A20 CRANKCASE OIL SUMP - R.R CLEAN SURFACES FOR SEALANT APPLICATION

1. Undo the fixing bolts (1a) and remove the flywheel cover (1b).

Refitting

1. Place the flywheel cover (1a) in position and tighten the fixing bolt (1b) to the recommended torque.

Op. 1020A20 CRANKCASE OIL SUMP - R.R CLEAN SURFACES FOR SEALANT APPLICATION

Op. 1072C16 EXHAUST MANIFOLD WITH CATALYTIC CONVERTER - R.R.

Op. 1072C44 EXHAUST MANIFOLD HEAT SHIELD - R+R

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 1048A32 HOSE FROM AIR FILTER TO INTAKE MANIFOLD - R + R

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

Op. 0010T10 CHANGE ENGINE OIL

- Connect the negative battery terminal.

- Remove the vehicle from the lift.
