FUEL FILLER PIPE ASSEMBLY- R + R

Operation 1040A30 · FUEL TANK AND COMPONENTS

1.2 8v, 1.4 16v

Removing

- Position the vehicle on a lift.

Op. 4450B08 RIGHT REAR WHEEL - R.R

Op. 7055B48

Op. 1040E20 FUEL FILLER PIPE PROTECTION - ARRANGE

- Remove the fuel filler cap.

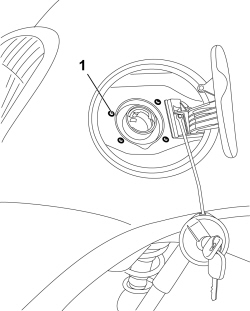

1. Undo the bolts fixing the fuel filler pipe to the bodyshell.

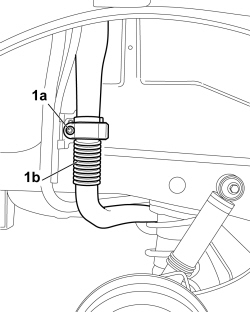

1. Undo the fixing nut (1a) and release the fuel filler pipe (1b) from the housing.

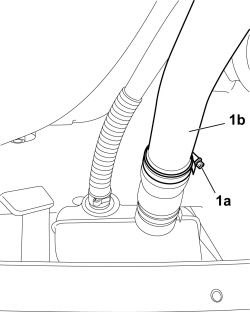

1. Open the retaining band (1a) and remove the fuel filler pipe (1b).

Refitting

- Connect the fuel filler pipe to the hose and secure them using the retaining band.

- Place the fuel filler pipe in position and tighten the bolts securing it to the bodyshell.

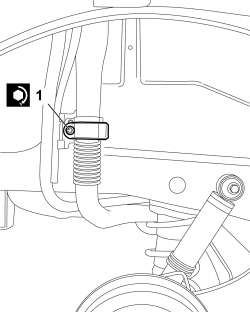

1. Tighten the fixing nut to the recommended torque.

- Fit the fuel filler cap.

Op. 1040E20 FUEL FILLER PIPE PROTECTION - ARRANGE

Op. 7055B48

Op. 4450B08 RIGHT REAR WHEEL - R.R

- Remove the vehicle from the lift.

1.3 Multijet

Removing

- Position the vehicle on a lift.

Op. 4450B08 RIGHT REAR WHEEL - R.R

Op. 7055B48

- Remove the fuel filler cap.

1. Undo the bolts fixing the fuel filler pipe to the bodyshell.

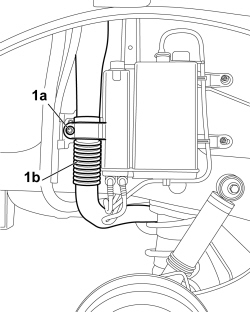

1. Undo the fixing nut (1a) and release the fuel filler pipe (1b) from the housing.

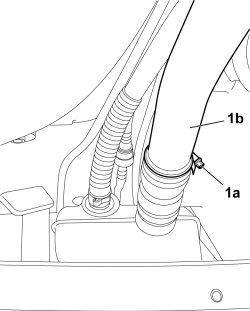

1. Open the retaining band (1a) and remove the fuel filler pipe (1b).

Refitting

- Connect the fuel filler pipe to the hose and secure them using the retaining band.

- Place the fuel filler pipe in position and tighten the bolts securing it to the bodyshell.

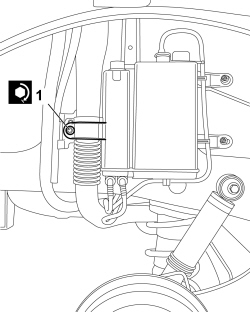

1. Tighten the fixing nut to the recommended torque.

- Fit the fuel filler cap.

Op. 7055B48

Op. 4450B08 RIGHT REAR WHEEL - R.R

- Remove the vehicle from the lift.
