FUEL FILLER PIPE PROTECTION - ARRANGE

Operation 1040E20 · PROTECTIONS - FASTENINGS

1.2 8v, 1.4 16v

Removing

- Position the vehicle on the lift.

Op. 4450B08 RIGHT REAR WHEEL - R.R

Op. 7055B48

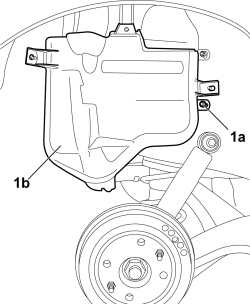

1. Undo retaining nuts (1a) and remove protection (1b).

Refitting

- Place the protection in position and tighten the retaining nuts.

Op. 7055B48

Op. 4450B08 RIGHT REAR WHEEL - R.R

- Remove the vehicle from the lift.
